Shift Lever Diagnosis

Shift Lever Diagnosis

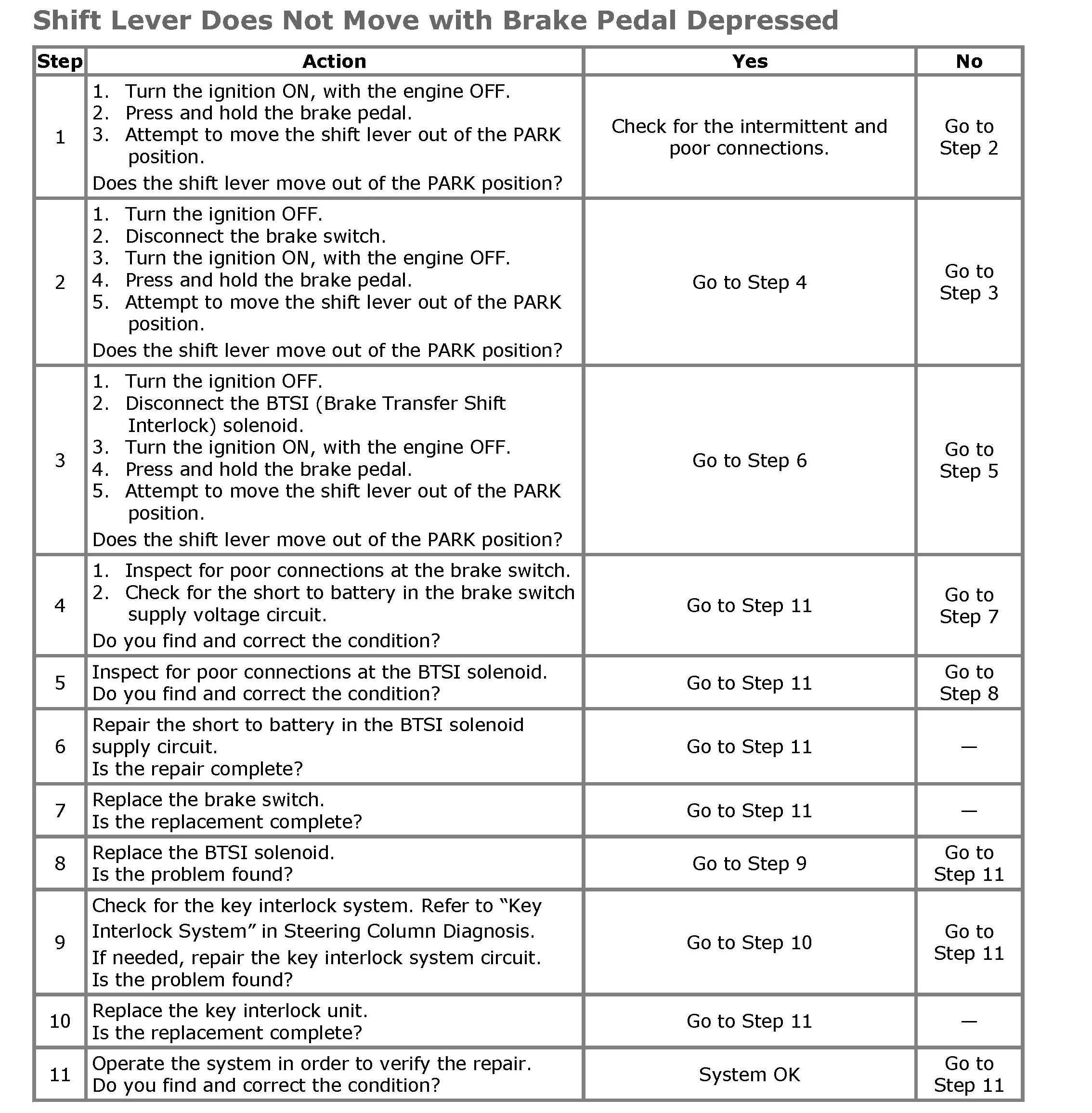

Shift Lever Does Not Move with Brake Pedal Depressed

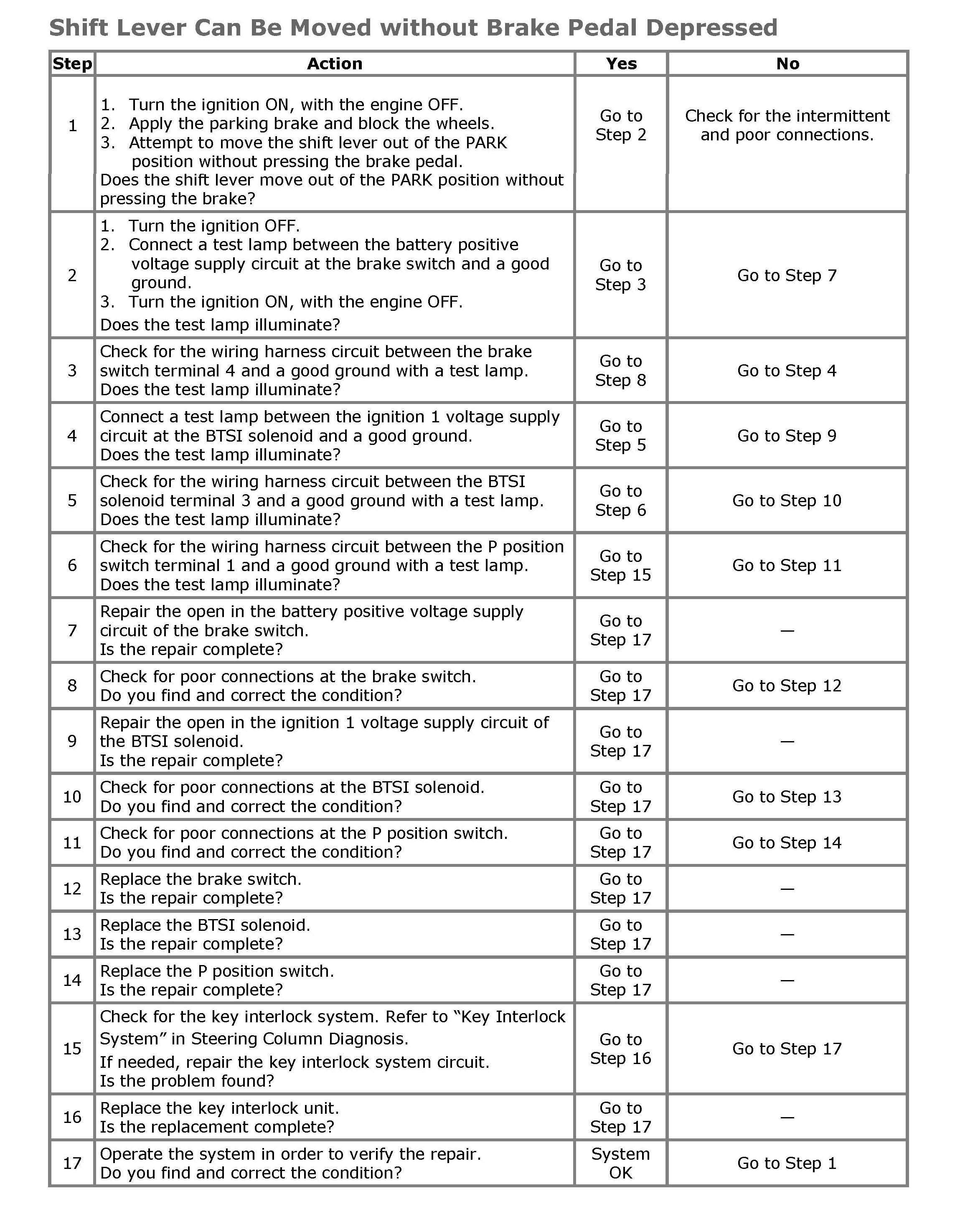

Shift Lever Can Be Moved without Brake Pedal Depressed
