Seat Belt Buckle: Service and Repair

Front Seat Belt Buckle Removal and Installation

Removal

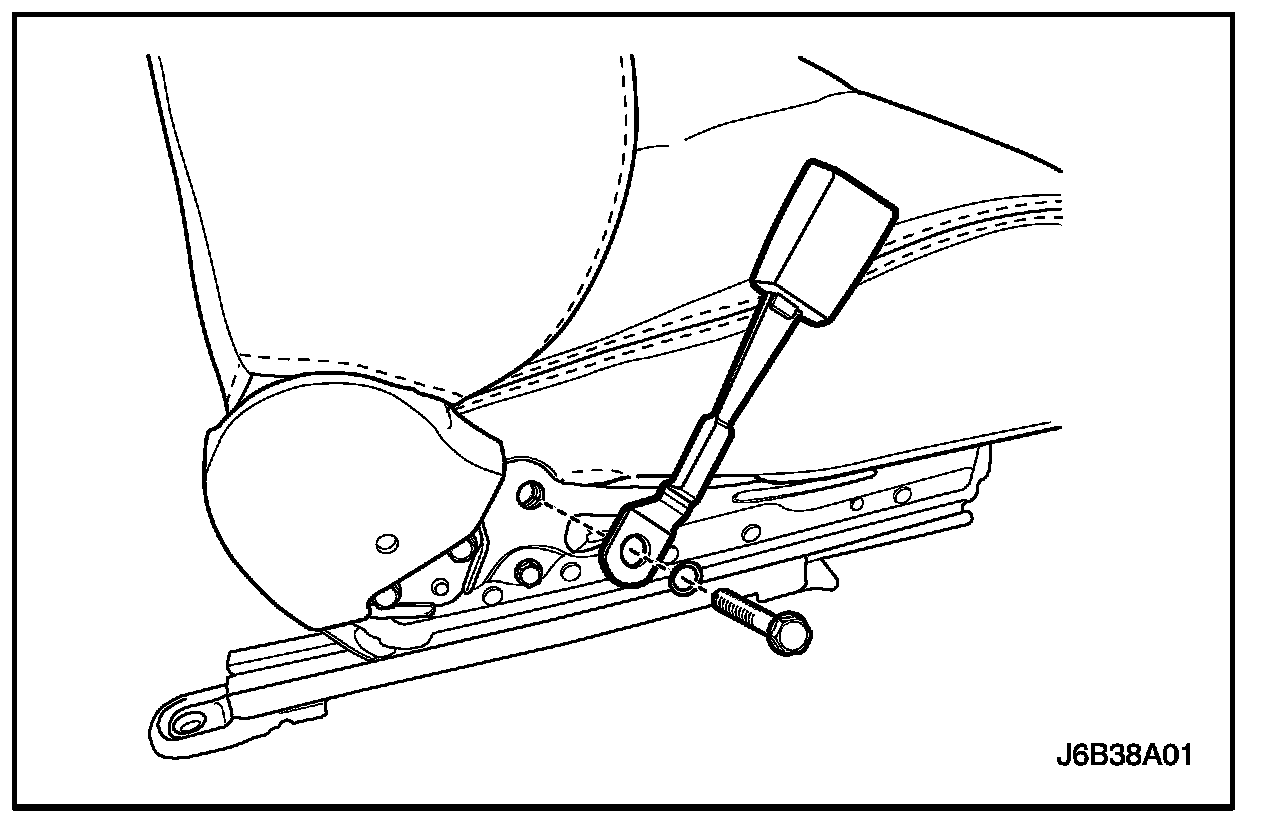

1. Remove the front seat belt bolt and washer.
2. In case of driver seat belt buckle, remove the electrical connector.

Tightening Torque Specifications:

Installation

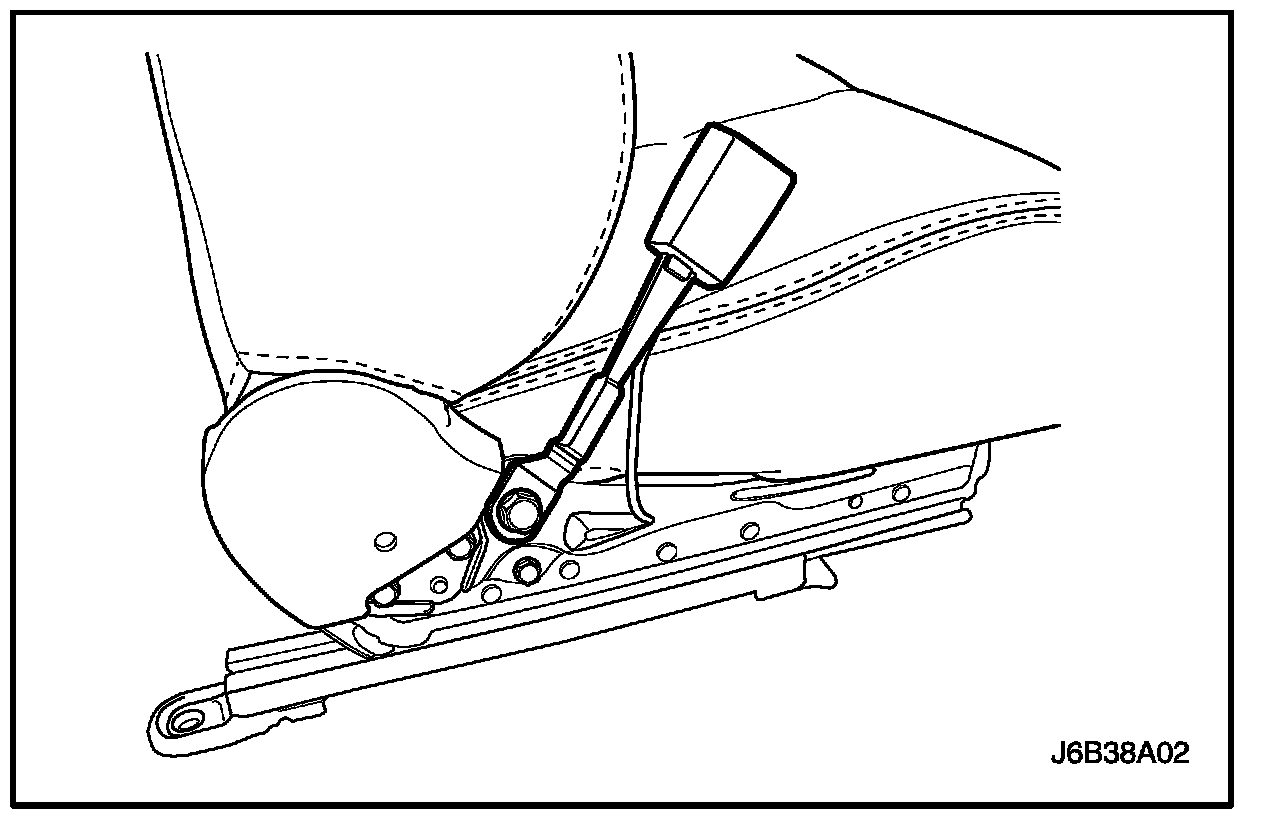

1. Install the front seat belt bolt and washer.

Tighten: Tighten the front seat belt bolt to 42 Nm (31 lb.ft).

2. In case of driver seat belt buckle, connect the electrical connector.
