Headlamp Reminder Indicator: Testing and Inspection

Headlamps-ON Reminder Chime Circuit

Diagnosis Diagnostic Aids:
The fuse for the left-side tail lamps is also part of the headlamps-ON reminder chime circuit. The headlamps-ON reminder chime should operate when the ignition is OFF, the headlamps or parking lamps are ON, and the driver door is open.

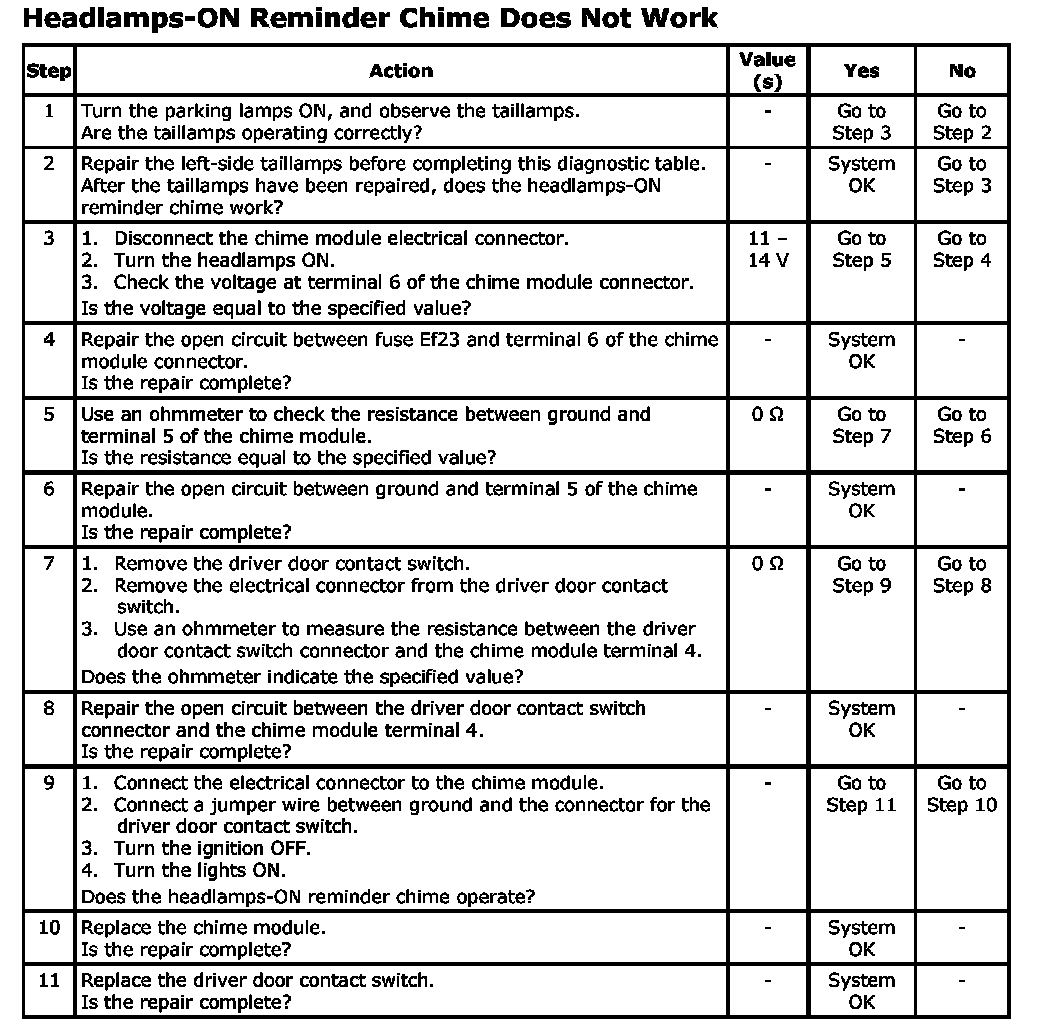

Step 1 - 11:

Headlamps-ON Reminder Chime Does Not Work
