Noise Diagnosis

Noise Diagnosis

Steps 1-6:

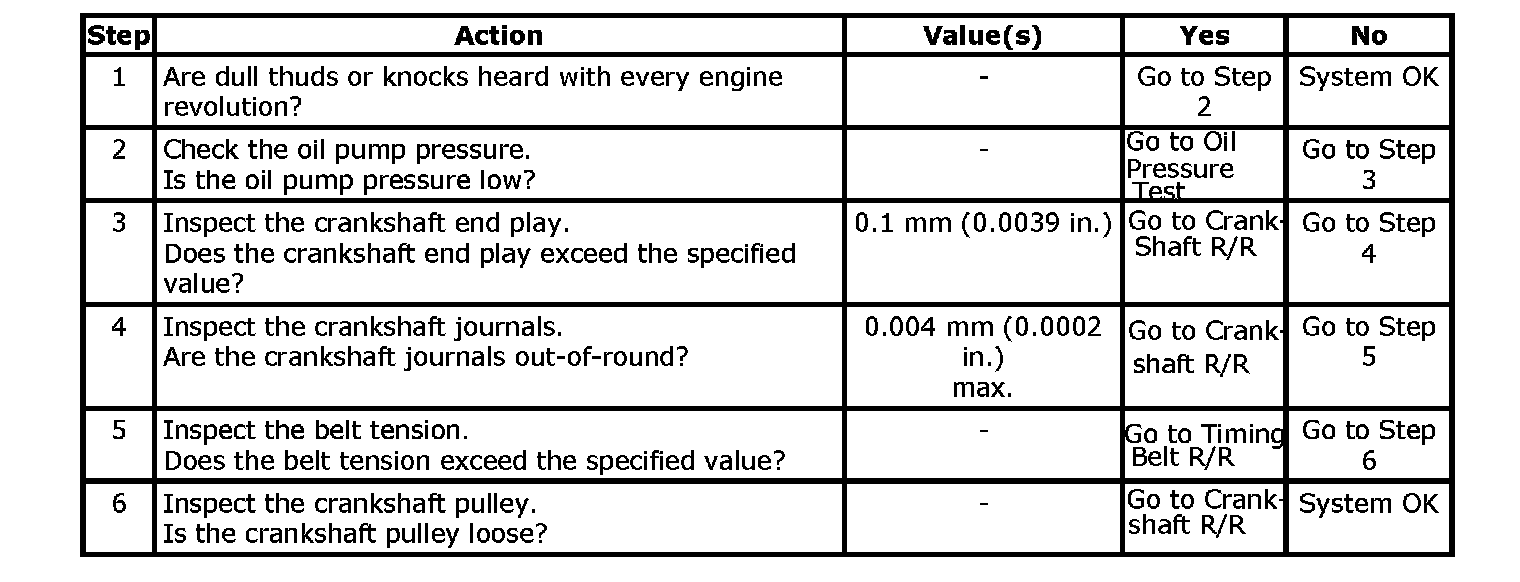

Main Bearing Noise

Steps 1-6:





Connecting Rod Bearing Noise Symptom

Steps 1-5:





Piston Noises

Steps 1-8:

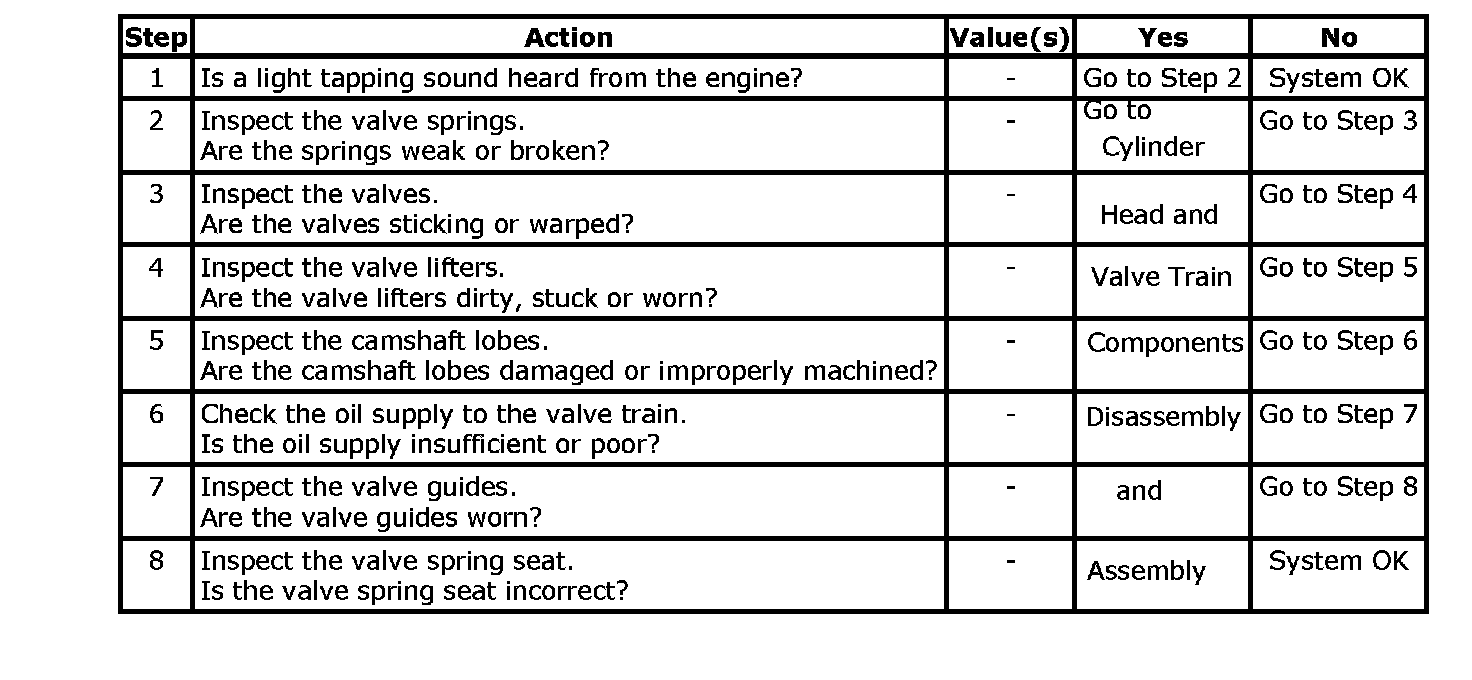

Valve Mechanism or Valve Train Noises
