Without Sun Roof
Lamp (Map and Room) and Key Illumination Circuit Wiring Diagram (Without Sun Roof):

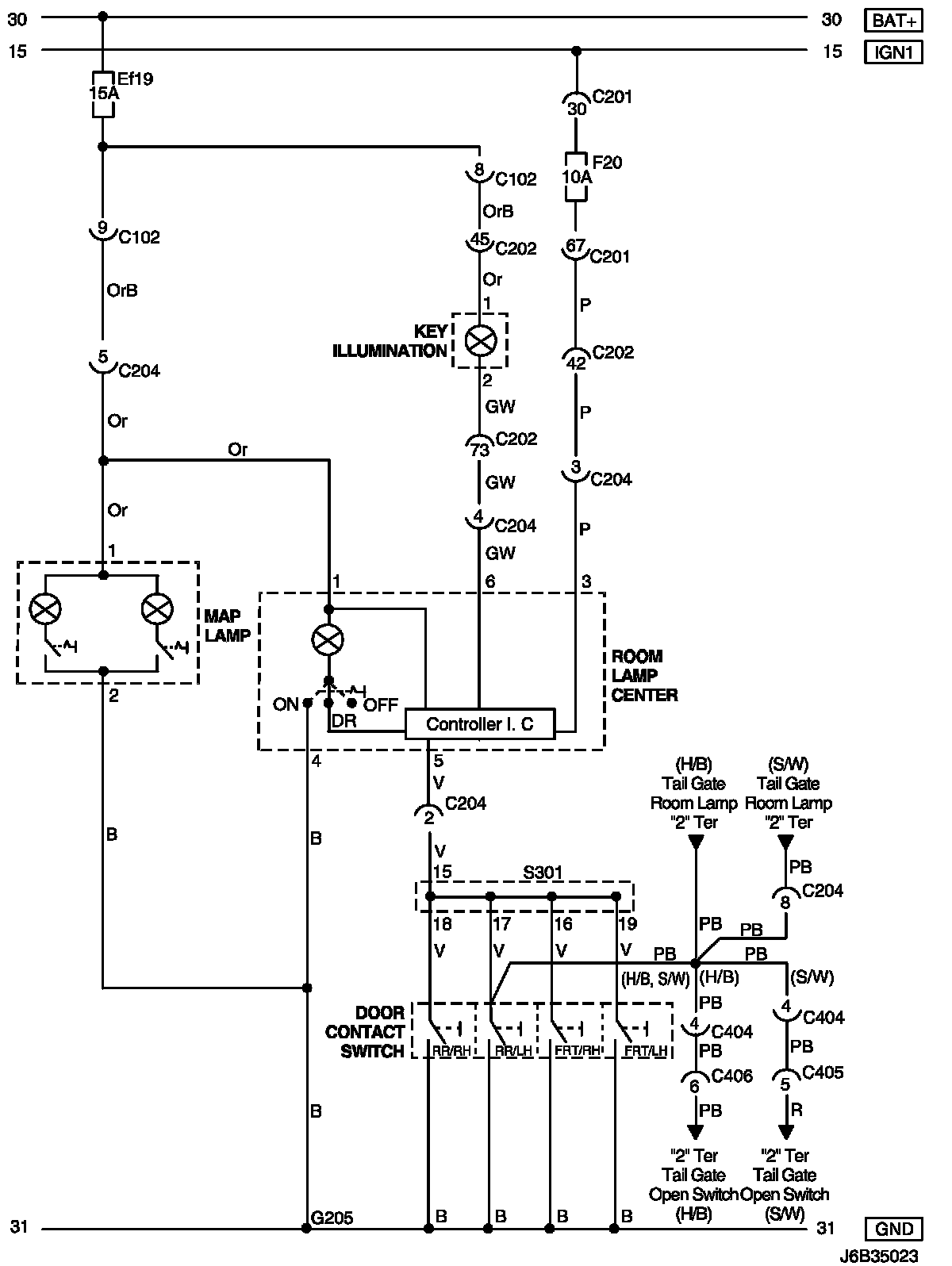

WIRING DIAGRAM
C102 - G205:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:

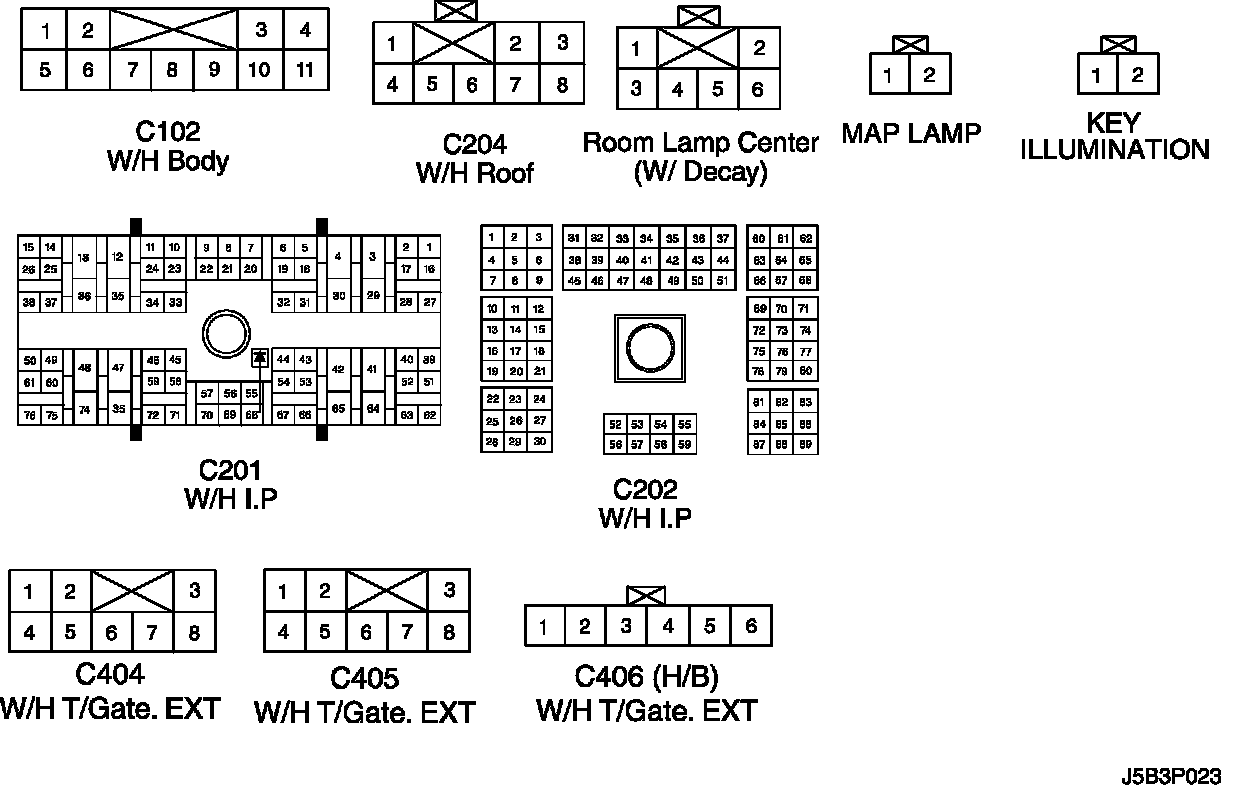

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

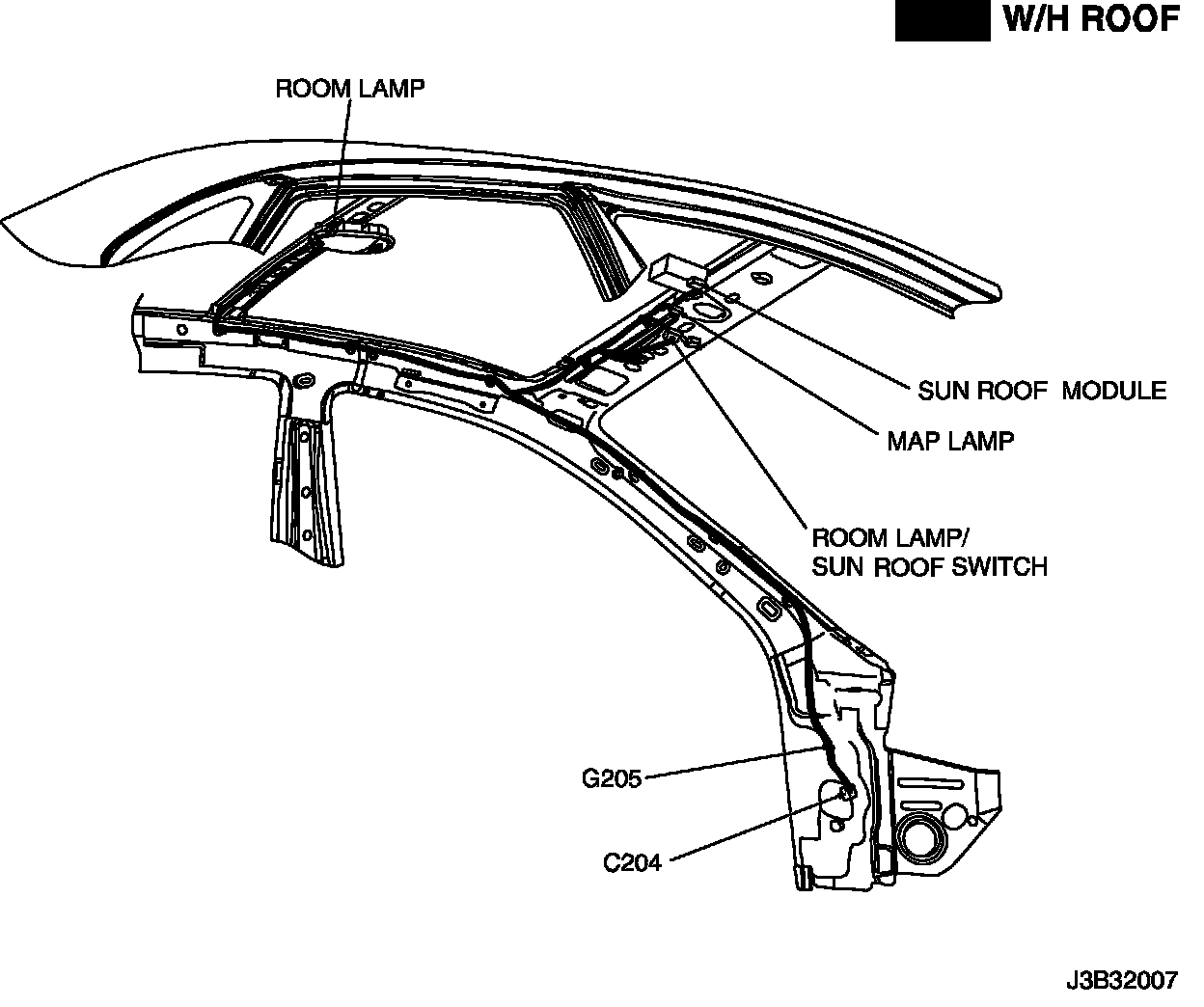

W/H Roof:

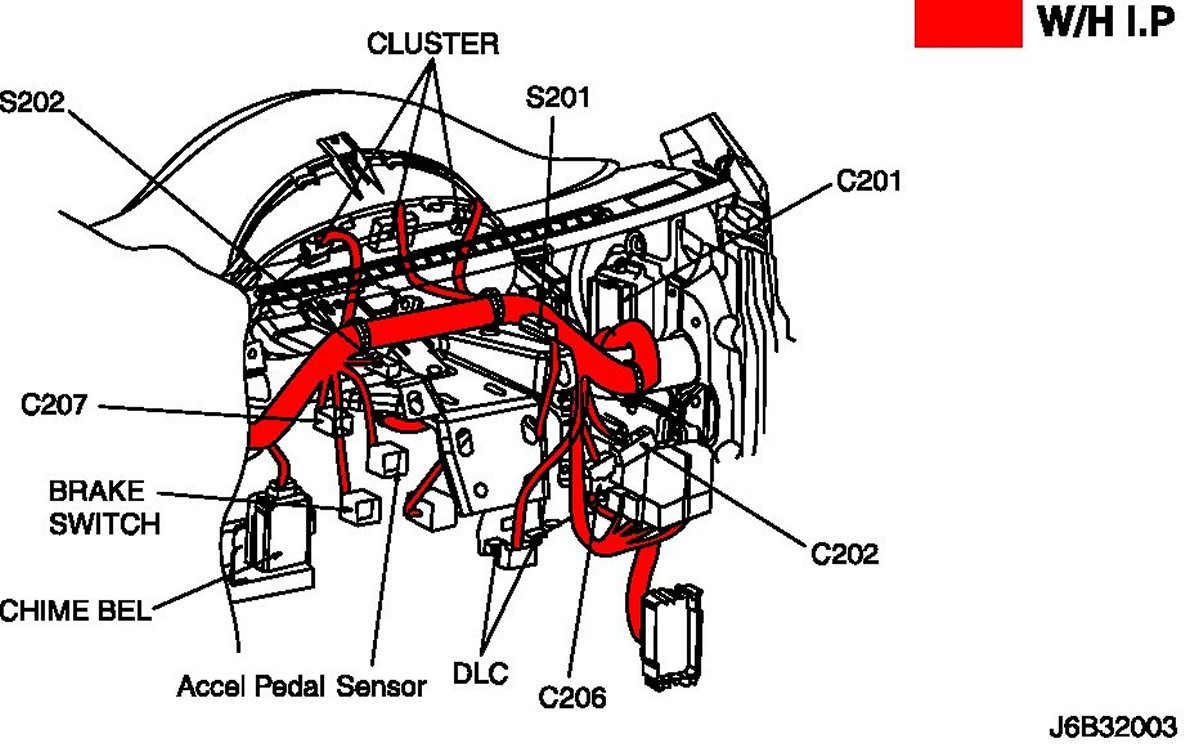

W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS
S301 (Notchback):
S301 (Hatchback):
S301 (Station Wagon):
SPLICE PACK
