Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit

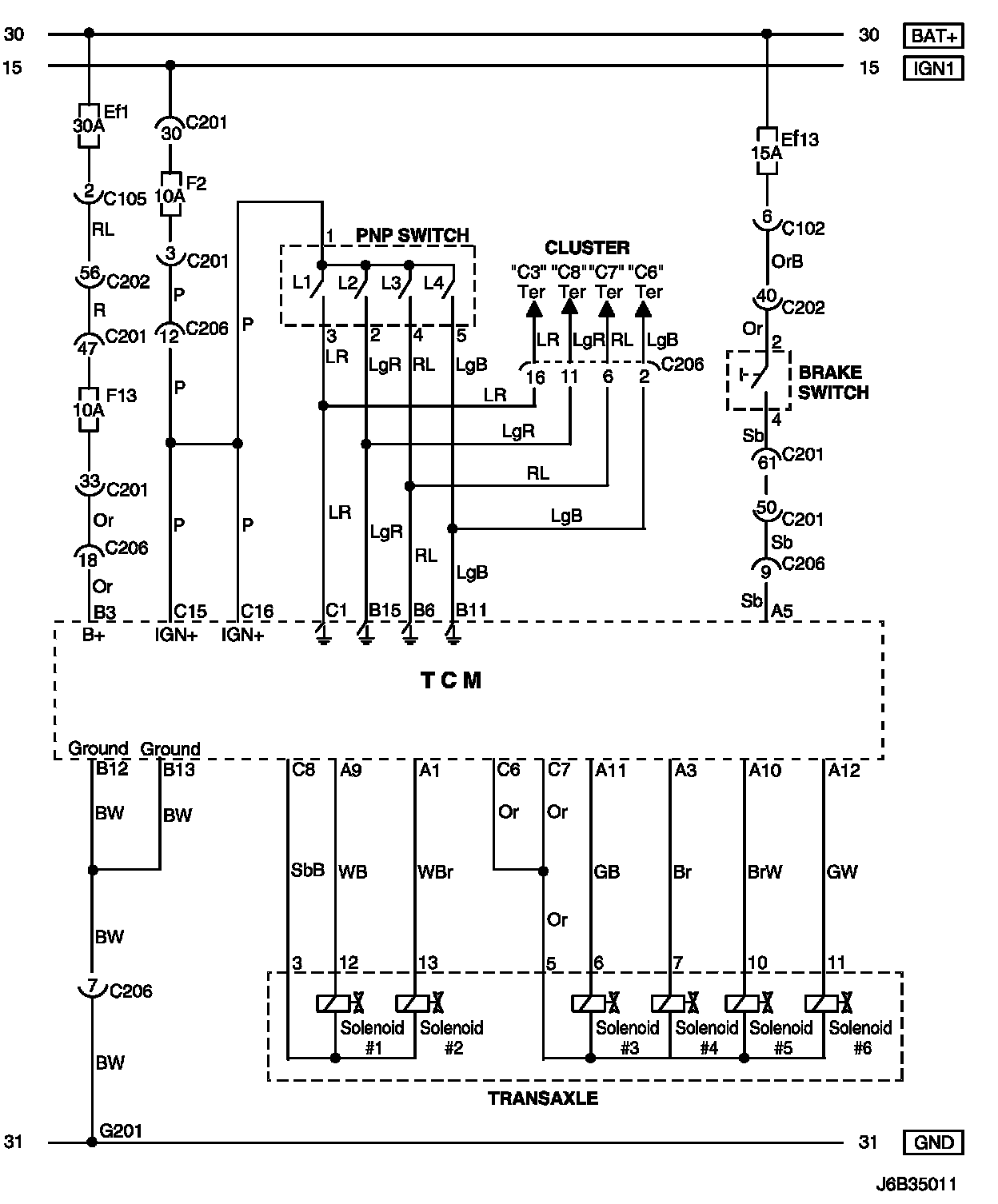

Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit Wiring Diagram:
WIRING DIAGRAM
C102 - G201:
CONNECTOR INFORMATION

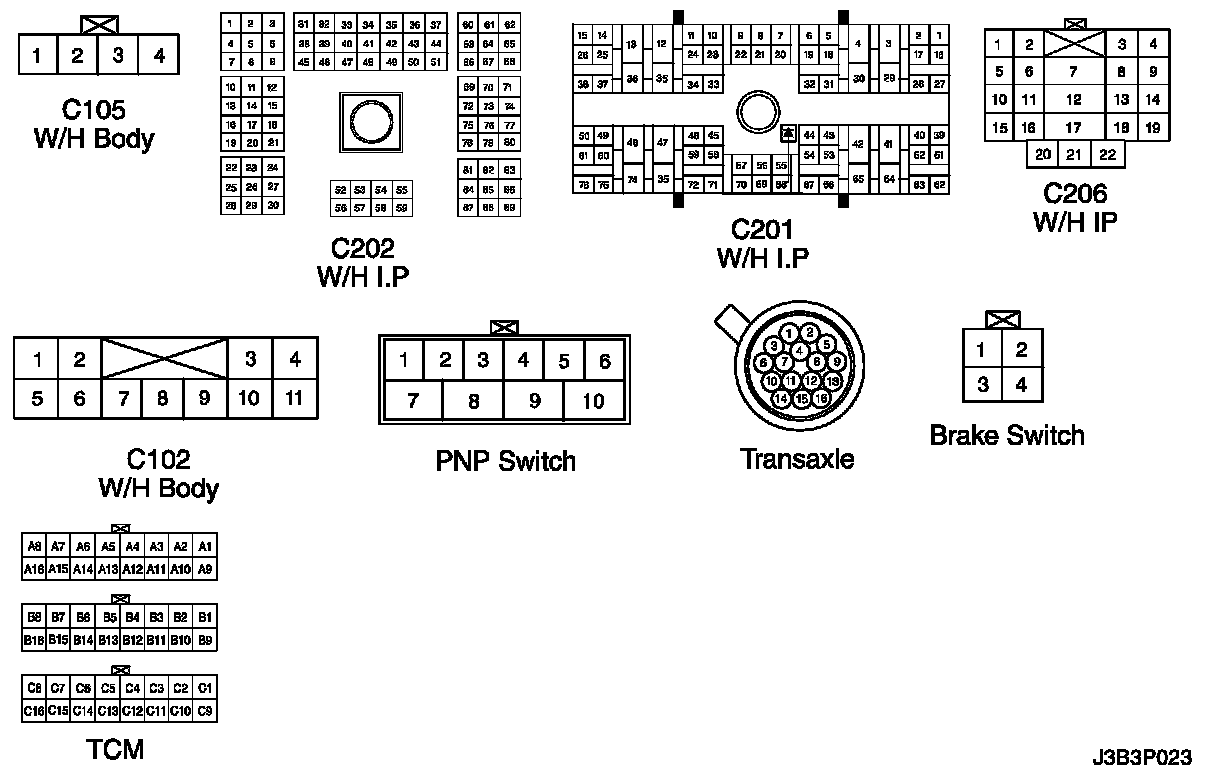

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

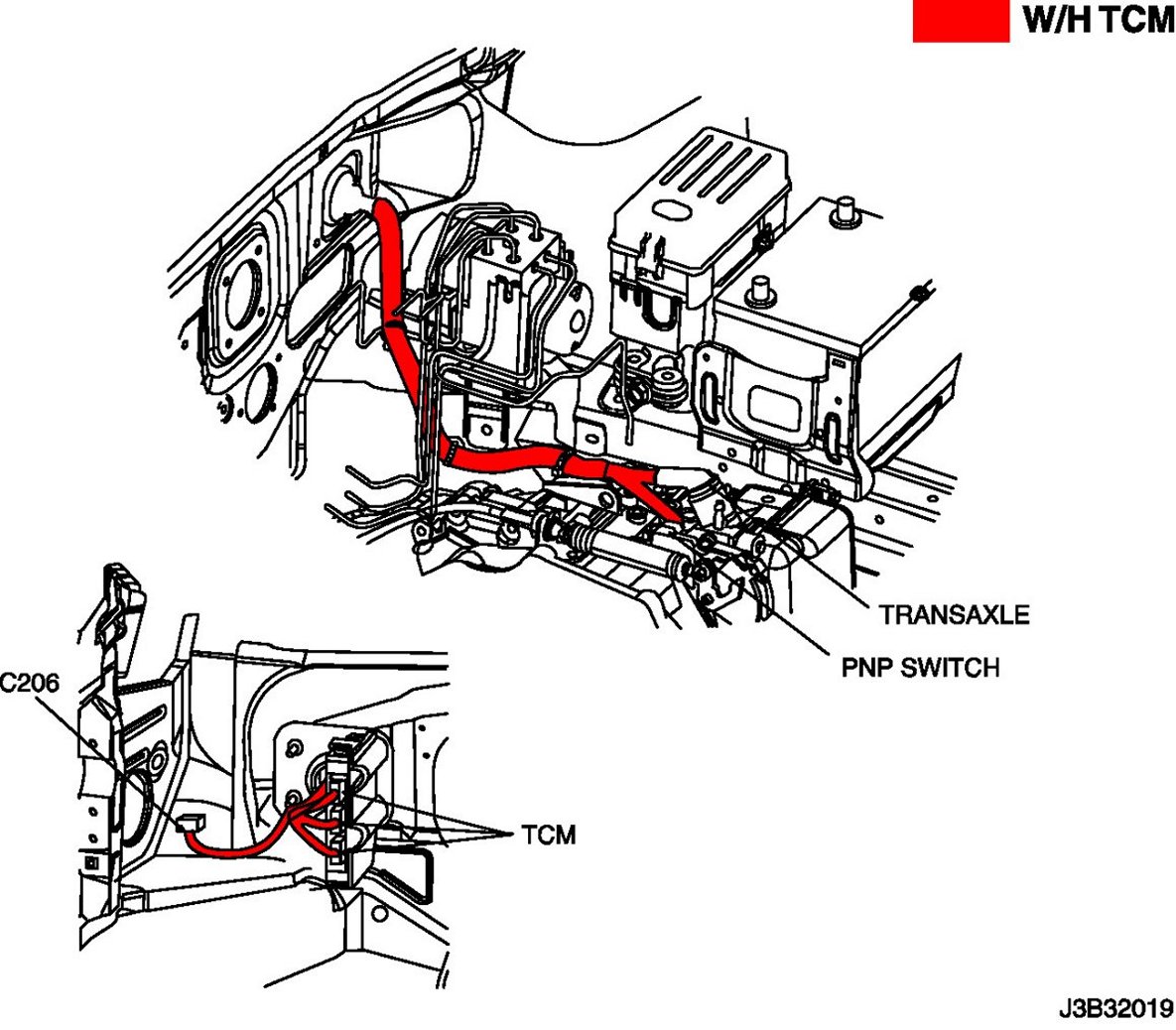

W/H TCM:
W/H Instrument Panel:

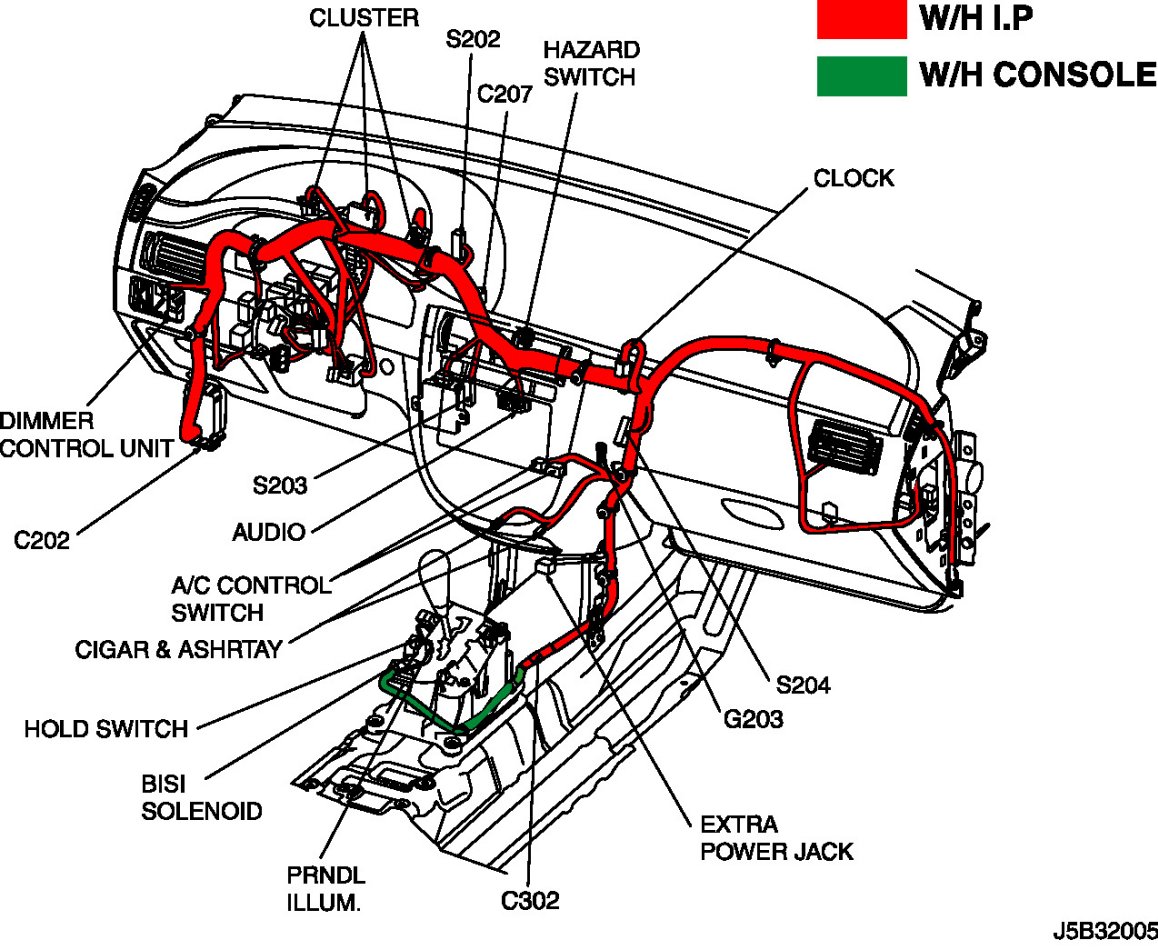

W/H Instrument Panel:

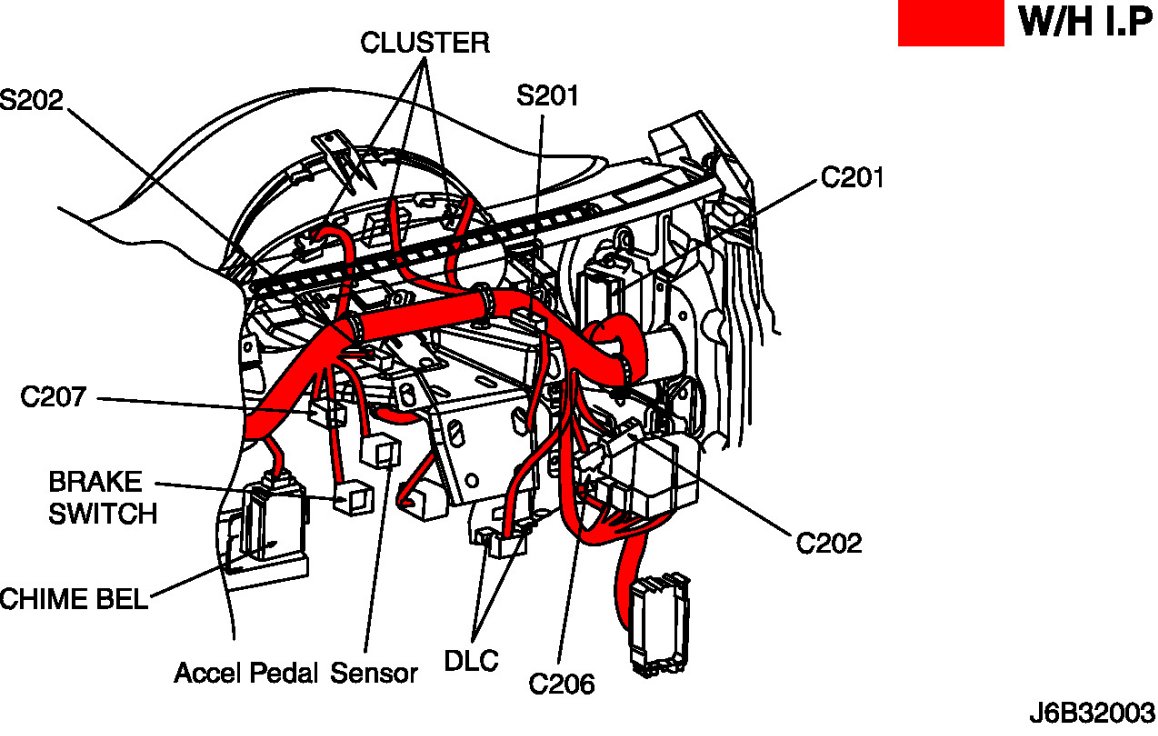

POSITION OF CONNECTORS AND GROUNDS
