Door Weatherstrip Removal and Installation

Door Weatherstrip Removal And Installation

Removal

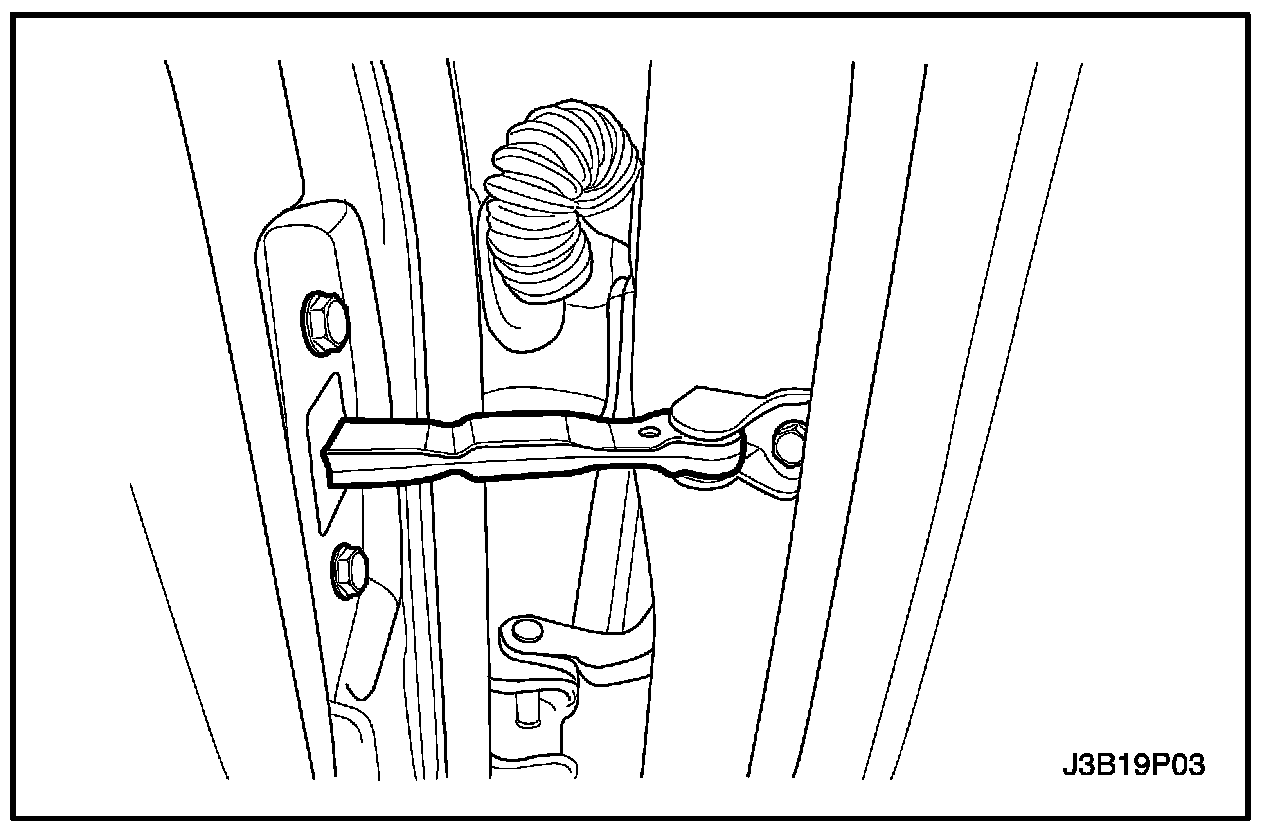

1. Remove the door hold-open link-to-body bolt and the door hold-open link.

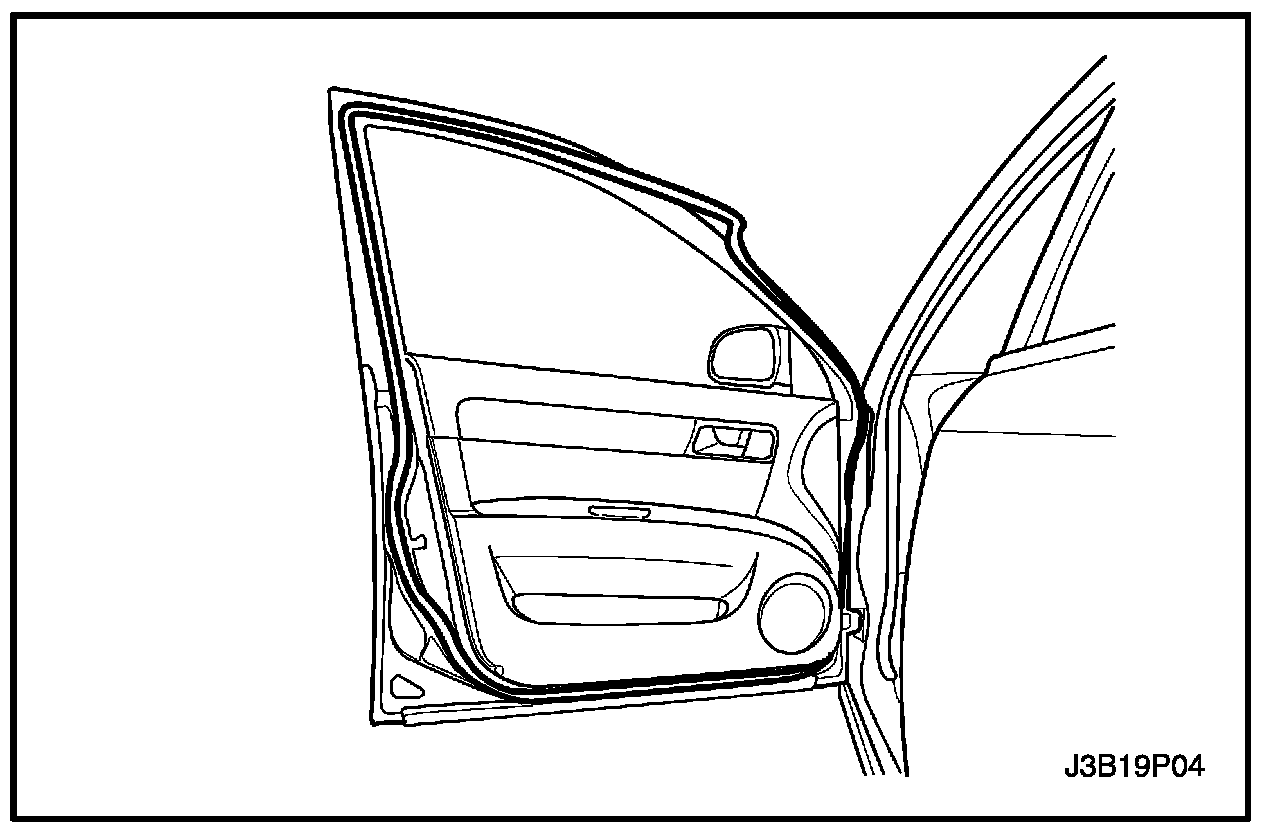

2. Remove the door weatherstrip.







Installation

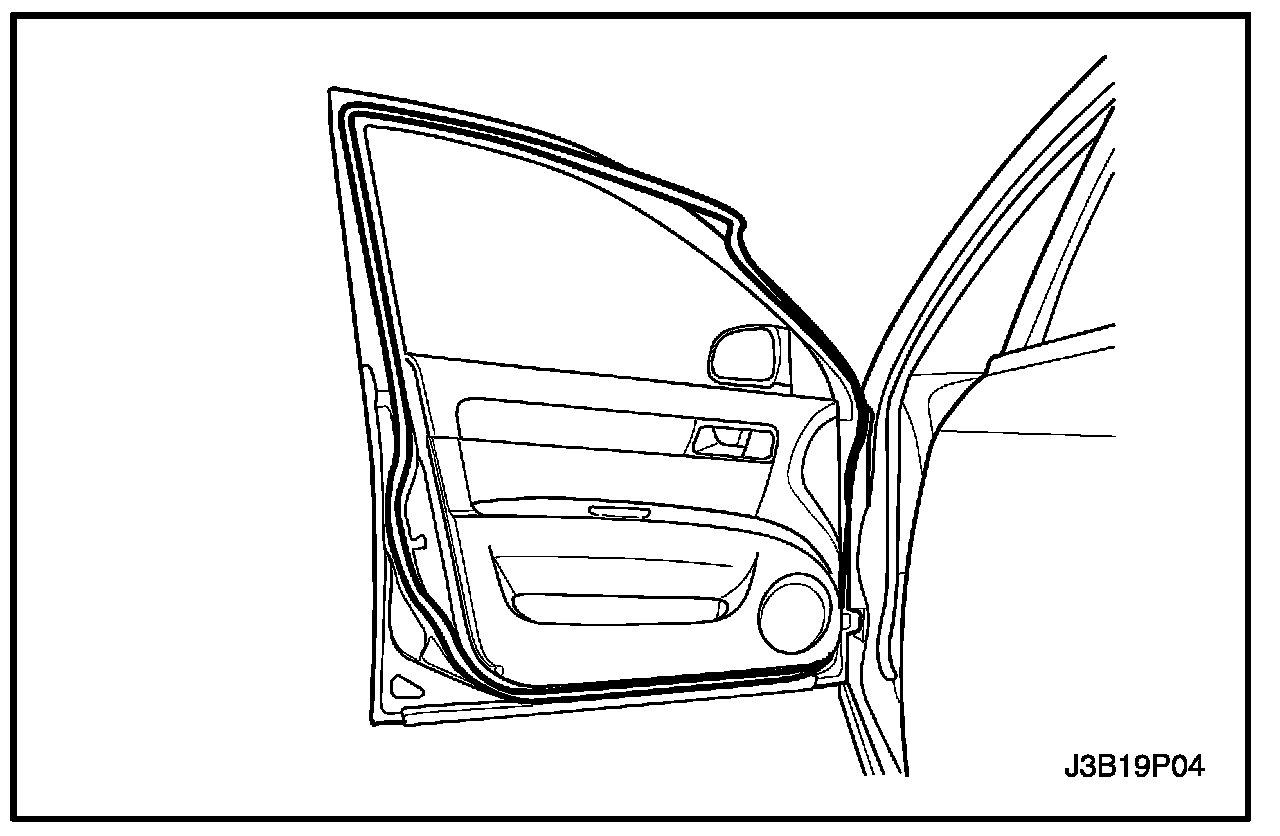

1. Install the door weatherstrip.







2. Install the door hold-open link to the body with the bolt.

Tighten:
Tighten the door hold-open link-to-body bolt to 25 Nm (18 ft. lbs.).
