Luggage Compartment Lock Cylinder Removal and Installation

Luggage Compartment Lock Cylinder Removal And Installation

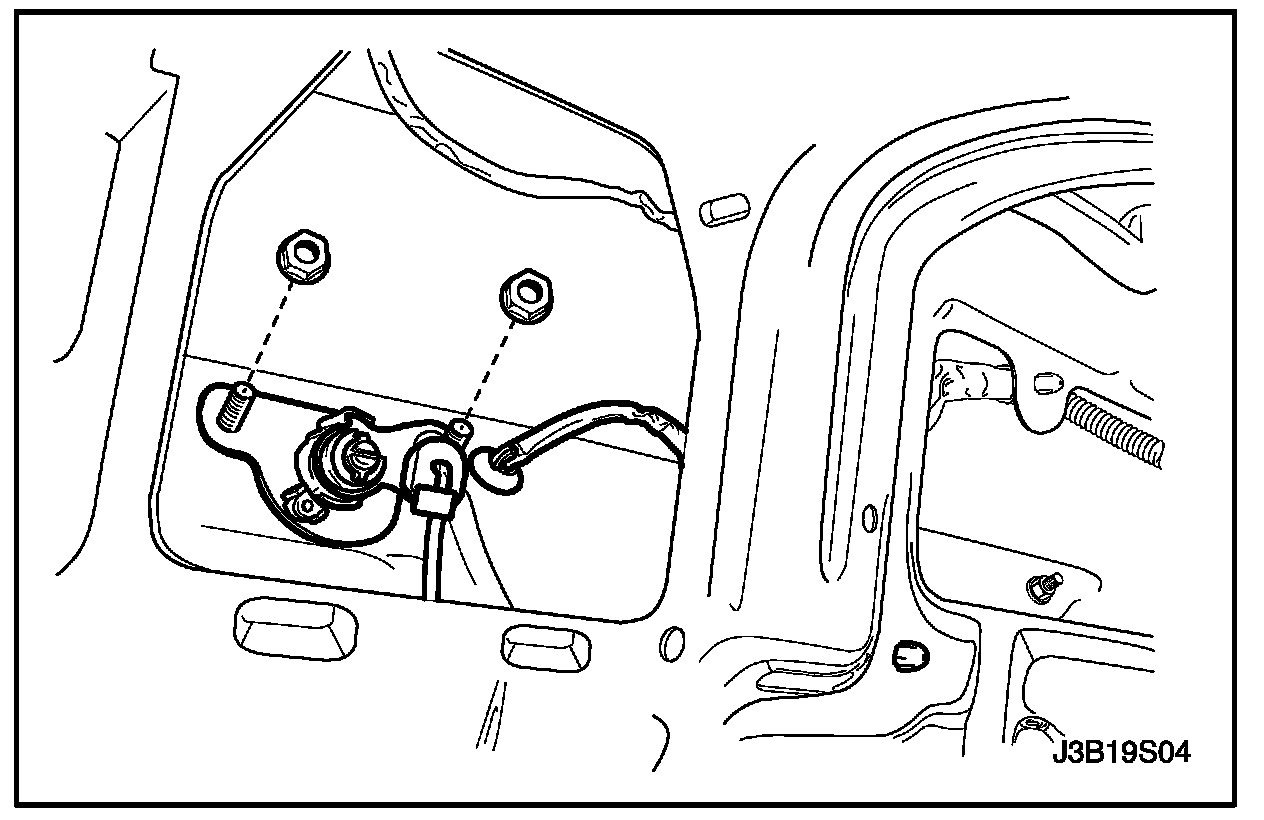

Removal

1. Remove the nuts securing the lock cylinder.
2. Disconnect the lock rod.
3. Disconnect the electrical connector.
4. Remove the luggage compartment lock cylinder.

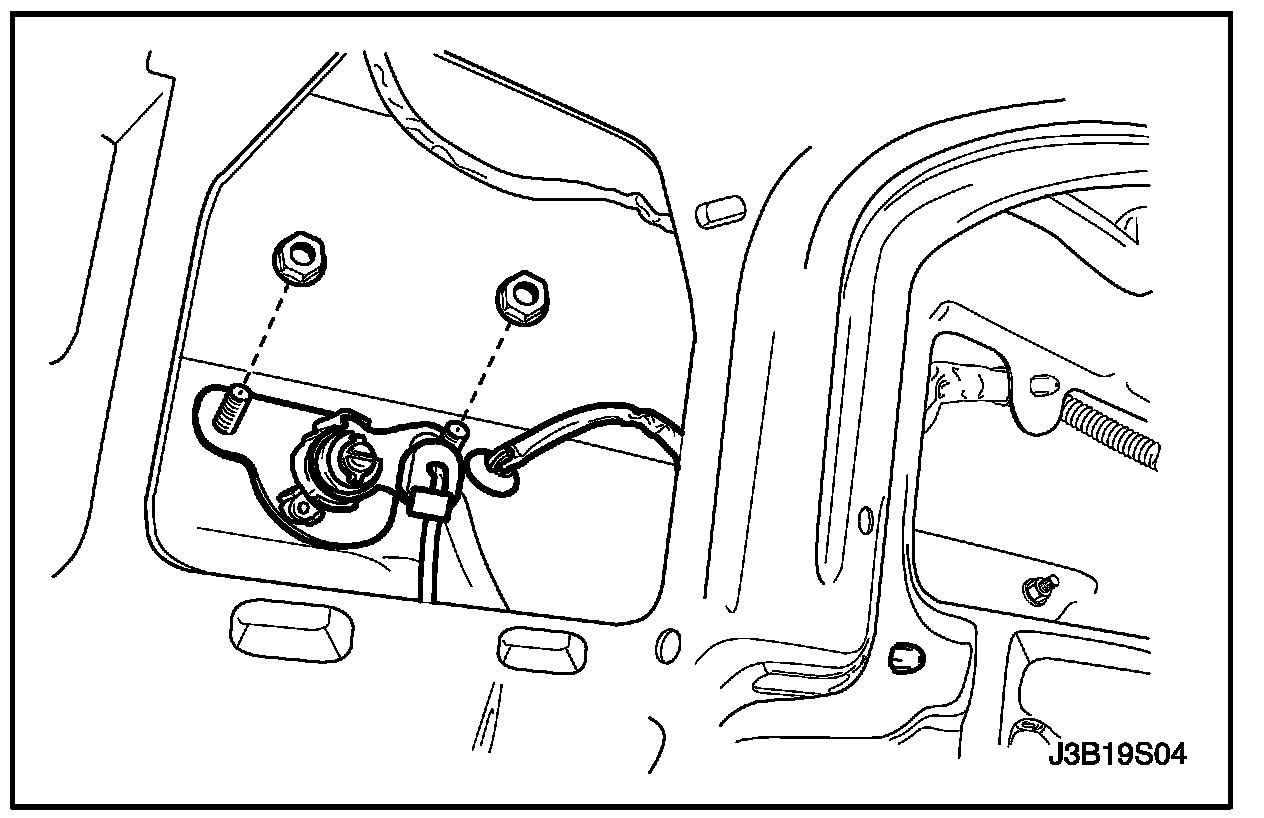

Installation

1. Install the luggage compartment lock cylinder.
2. Connect the electrical connector.
3. Connect the lock rod.
4. Install the luggage compartment lock cylinder with the nuts.

Tighten:
Tighten the luggage compartment lock cylinder nut to 8 Nm (71 in. lbs.).
