Alarm Horn: Service and Repair

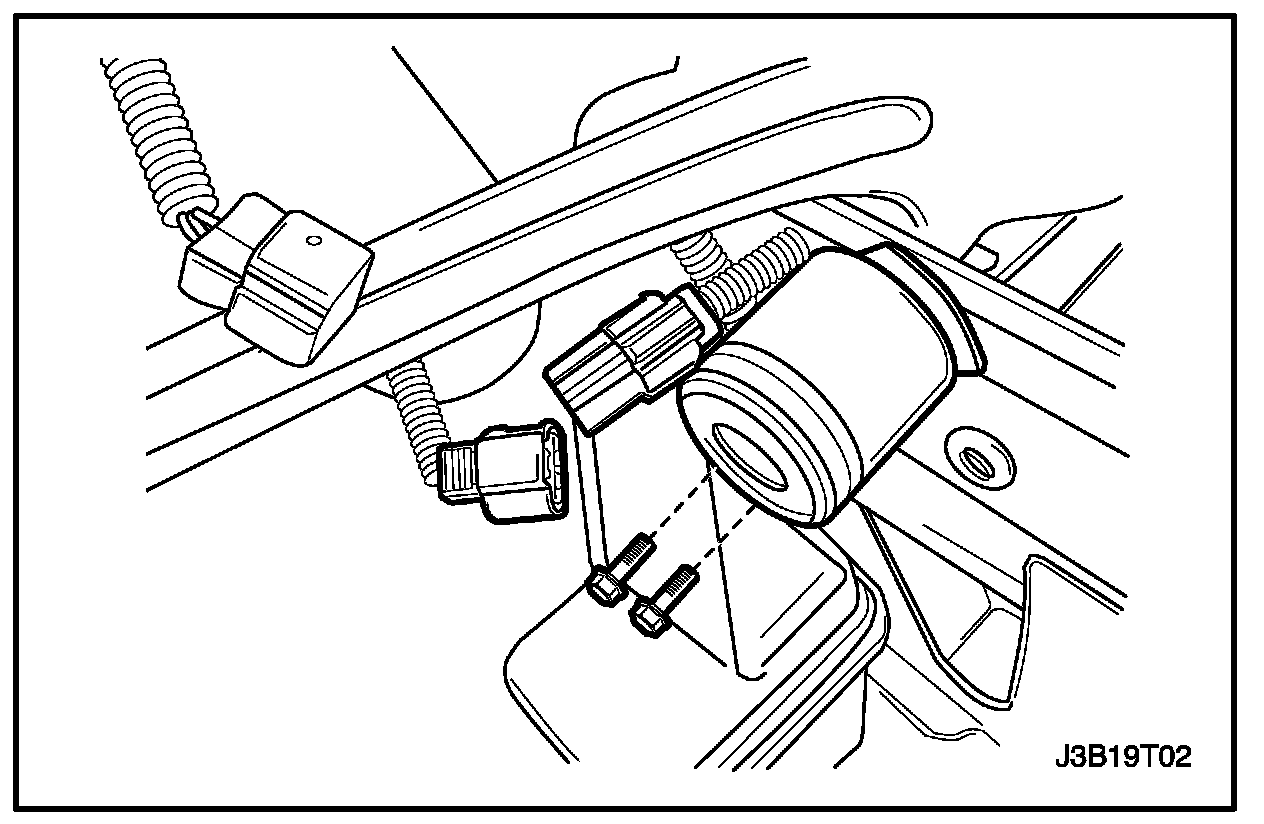

Siren Removal And Installation

Removal

1. Disconnect the negative battery cable.
2. Remove the siren electrical connector.
3. Remove the siren bracket mounting bolts and siren.

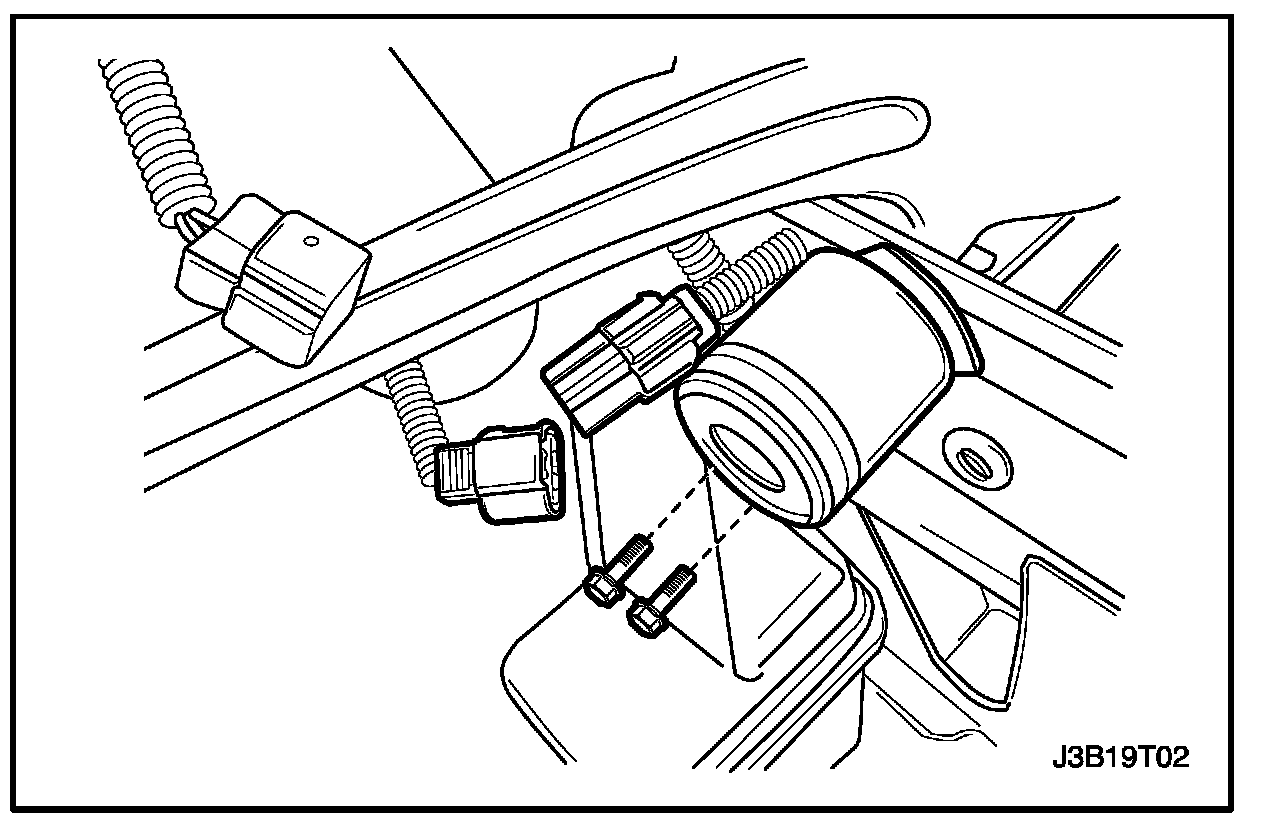

Installation

1. Install the siren with the mounting bolts.

Tighten:
Tighten the siren bracket mounting bolts to 8 Nm (71 in. lbs.).

2. Connect the siren electrical connector.
3. Connect the negative battery cable.
