Windshield Washer Pump: Service and Repair

Washer Tank and Washer Pump Removal and Installation

Reference: Wipers and Washers Components

Removal




1. Disconnect negative (-) cable at battery.
2. Remove front fender lining (LH).
3. Remove front bumper.

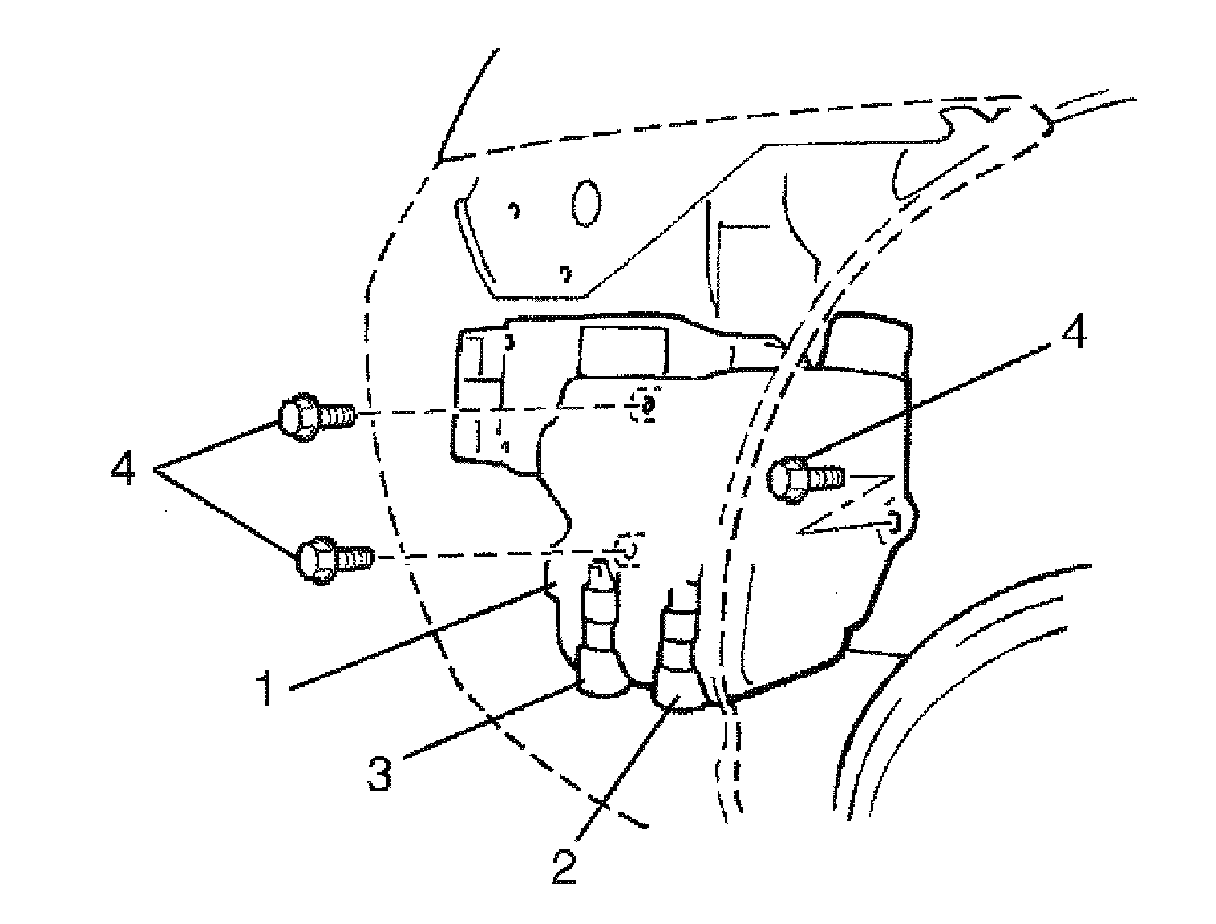

4. Remove washer tank attaching bolts (4).
5. Disconnect washer pump lead wire couplers and hoses.
6. Remove washer tank (1).
7. Remove windshield washer pump (2) and rear washer pump (3) from washer tank (1).

Installation
Reference: Washer Pump Inspection

Reverse removal procedure.
