No Lock-Up Occurs
No Lock-Up OccursSystem Description
TCM turns TCC solenoid OFF under any of the following conditions.
^ Engine coolant temperature is lower than 37°C (99°F).
^ Lock-up off signal by cruise control module is ON.
TCM detects the following DTCs
P0717 / P0722 / P0727 / P0962 / P0963 / P0973 / P0974 / P0976 / P0977 / P1700 / P1702 / P1730 / P2763 / P2764

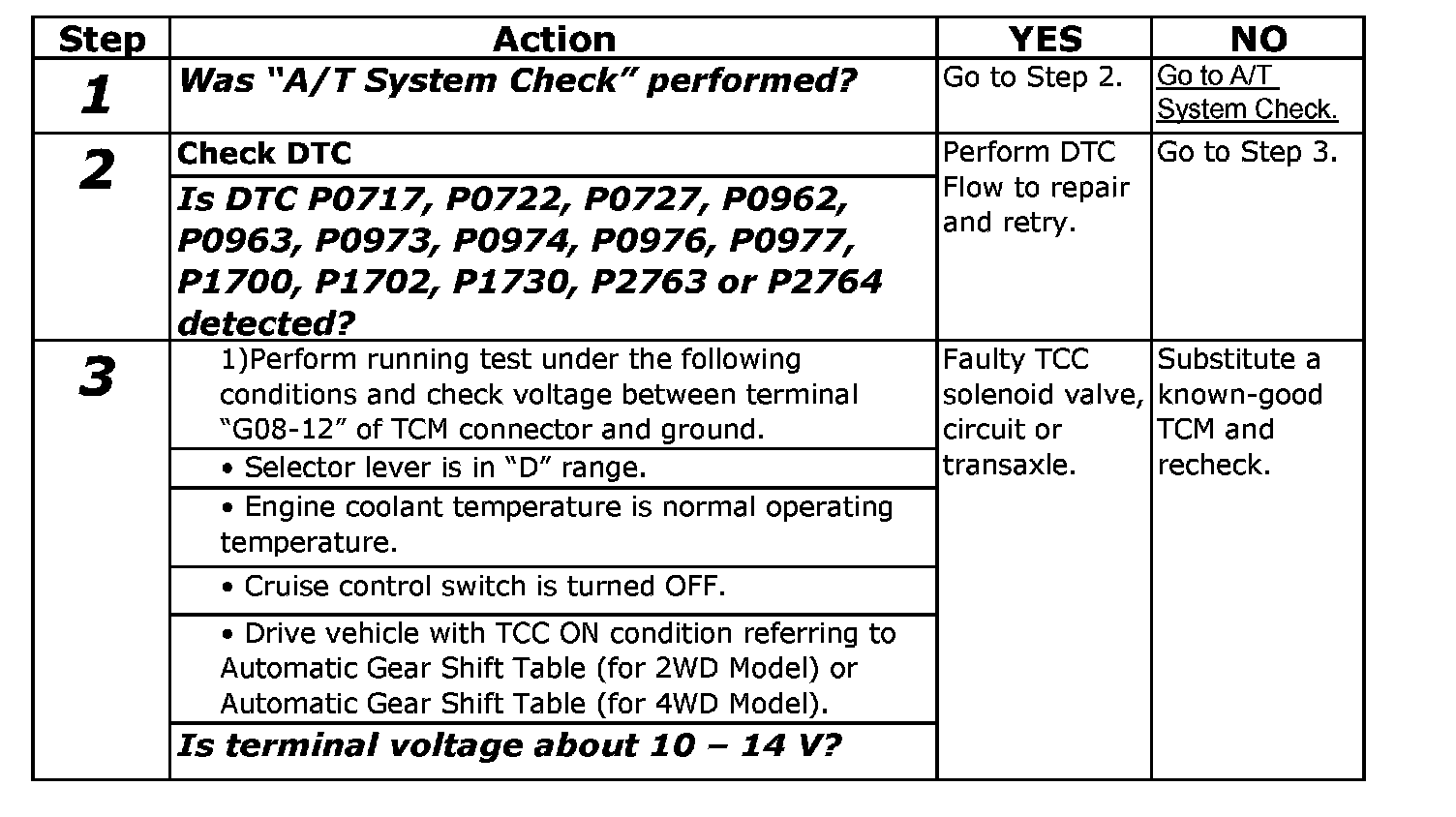

Troubleshooting
WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and tester, on a level road.
