No Gear Shift to O/D
No Gear Shift to O/DSystem Description
TCM does not shift to O/D gear under any of the following condition.
^ O/D off switch is turned ON. ("O/D OFF" lamp ON.)
^ O/D off signal by cruise control module is ON.
^ TCC solenoid circuit is in faulty condition and transmission fluid temperature is more than 150°C (302°F). (P2763 / P2764)

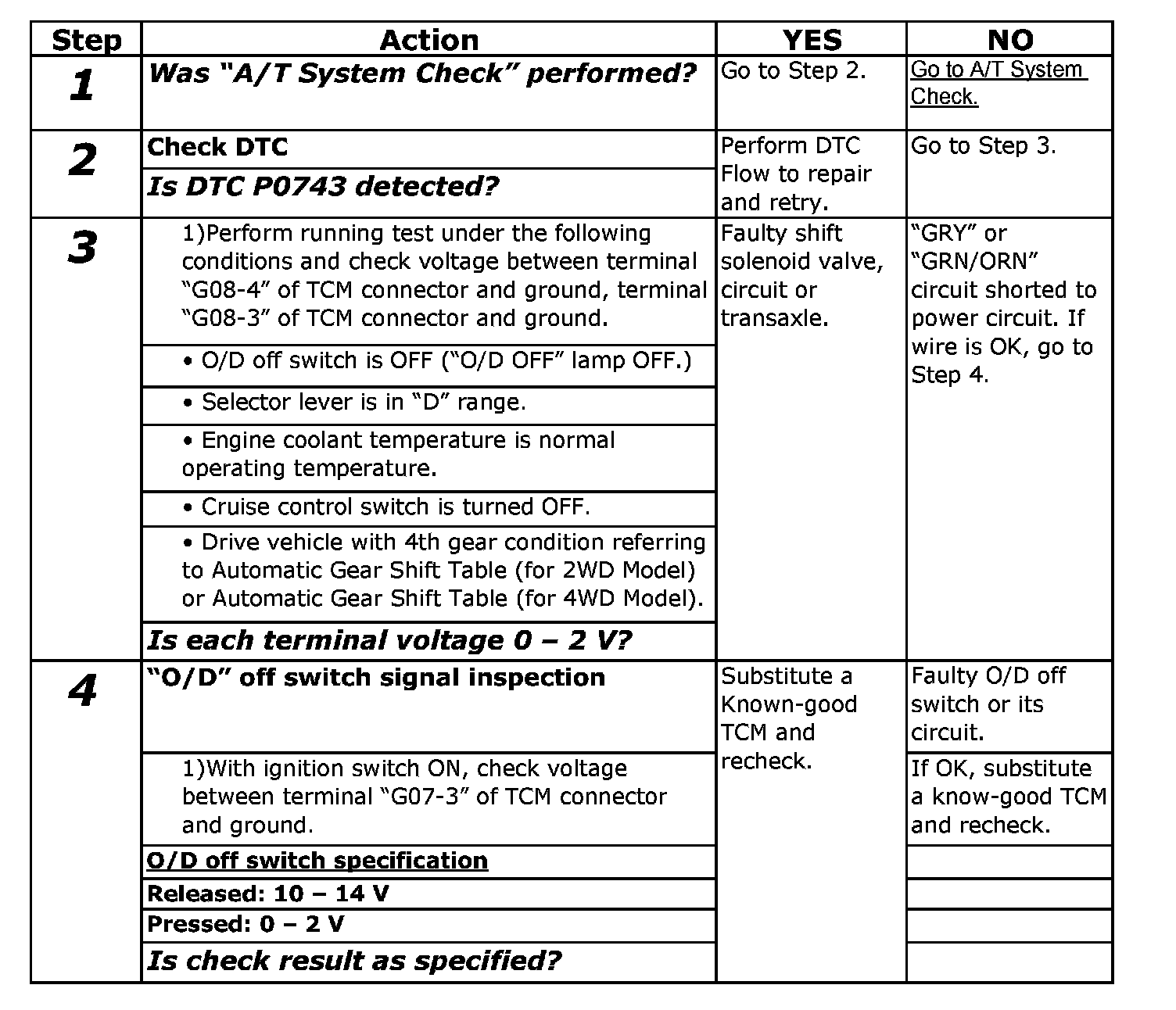

Troubleshooting
WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and tester, on a level road.
