Underdrive Gear Assembly Components

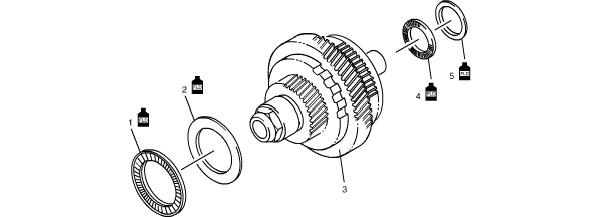

Underdrive Gear Assembly Components (part 1):

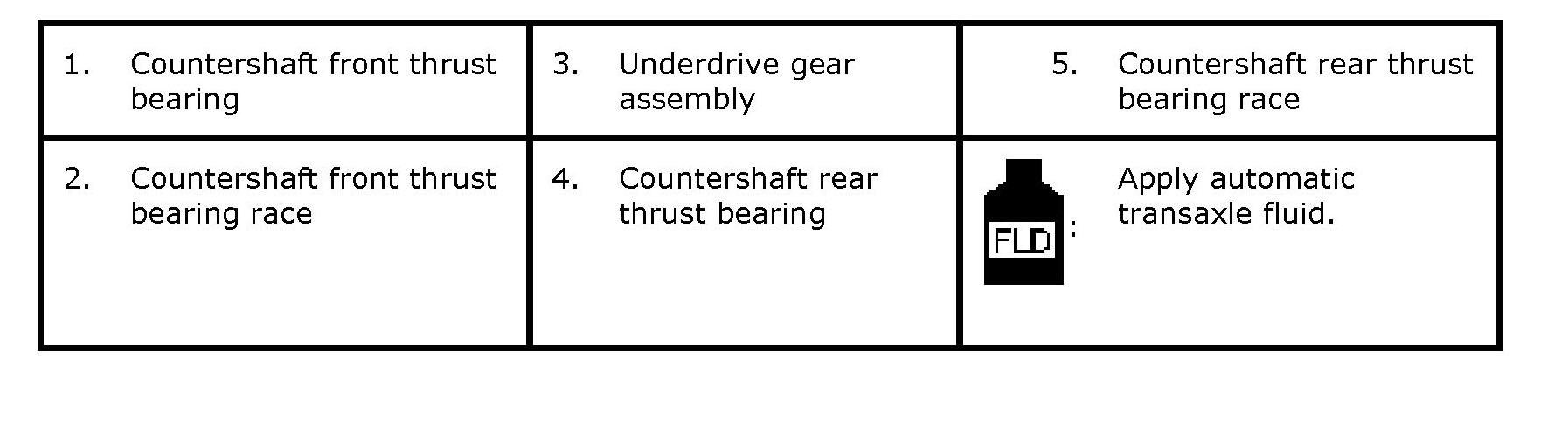

Underdrive Gear Assembly Components (part 2):
