Transaxle Rear Cover Components

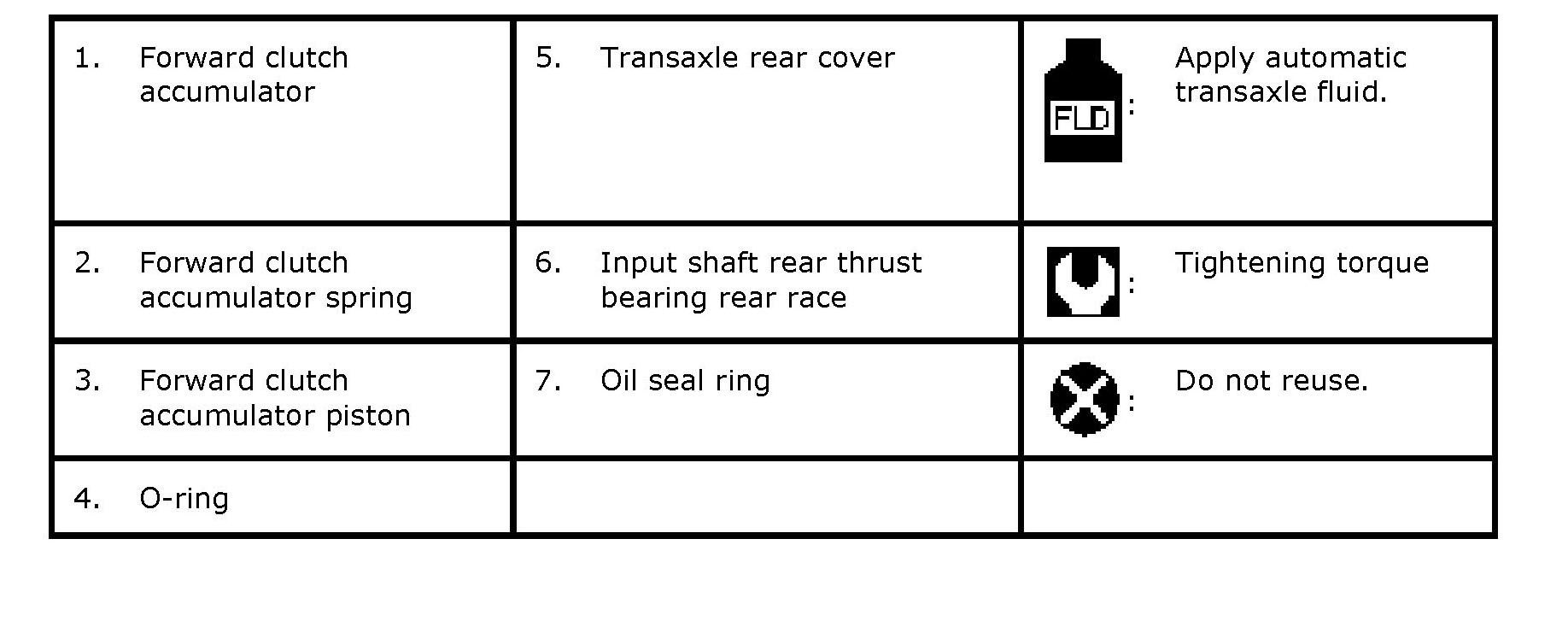

Transaxle Rear Cover Components (part 1):

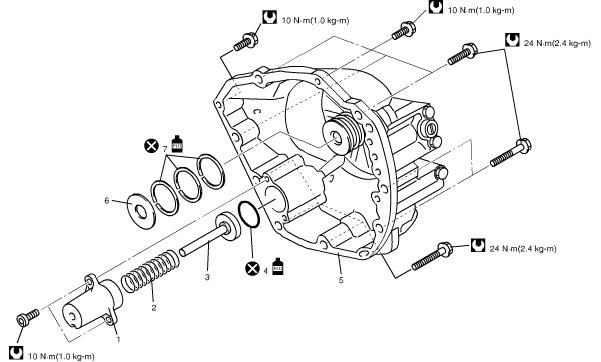

Transaxle Rear Cover Components (part 2):
