One-Way No. 1 Clutch Operation Check

One-Way No. 1 Clutch Operation Check
Reference: Automatic Transaxle Unit Disassembly
Reference: Automatic Transaxle Unit Assembly

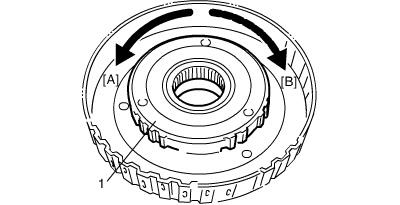

1. Check that one-way No. 1 clutch (1) turns freely when turned counterclockwise [A] and locks when turned clockwise [B].
