Overdrive Switch: Testing and Inspection

"O/D OFF" Switch Inspection

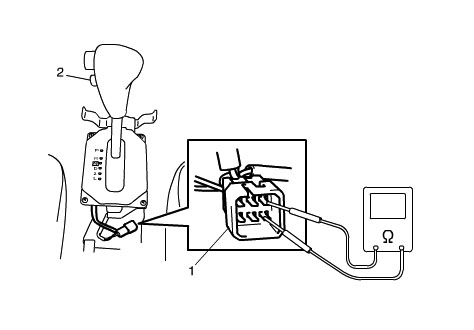

1. Remove console box.
2. Disconnect O/D off switch connector (1).

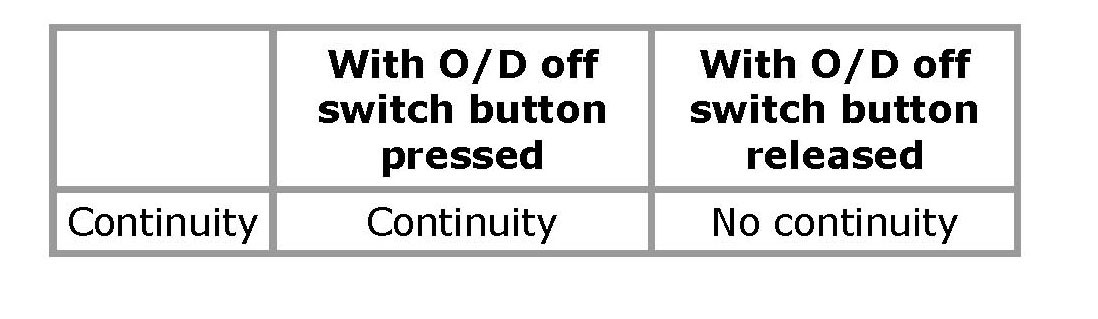

3. Check continuity between O/D off switch (2) terminals. If check result is not as satisfied, replace switch.
