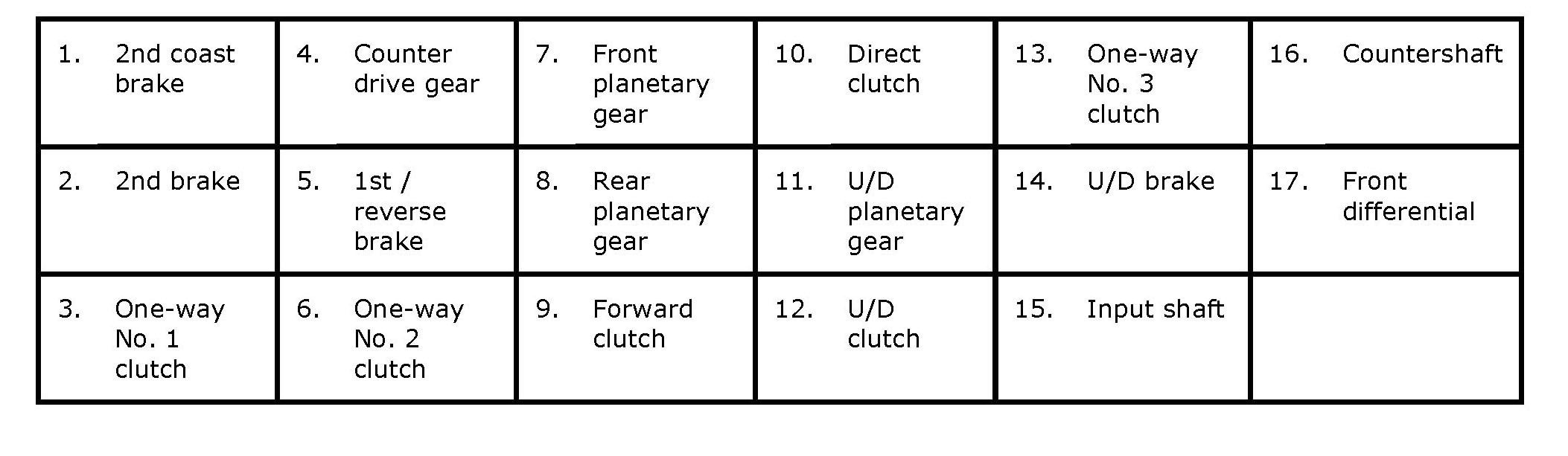

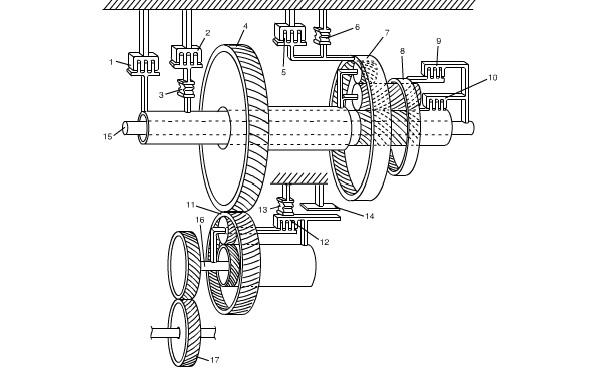

Clutch / Brake / Planetary Gear Function of Automatic Transaxle

Clutch / Brake / Planetary Gear Function of Automatic Transaxle

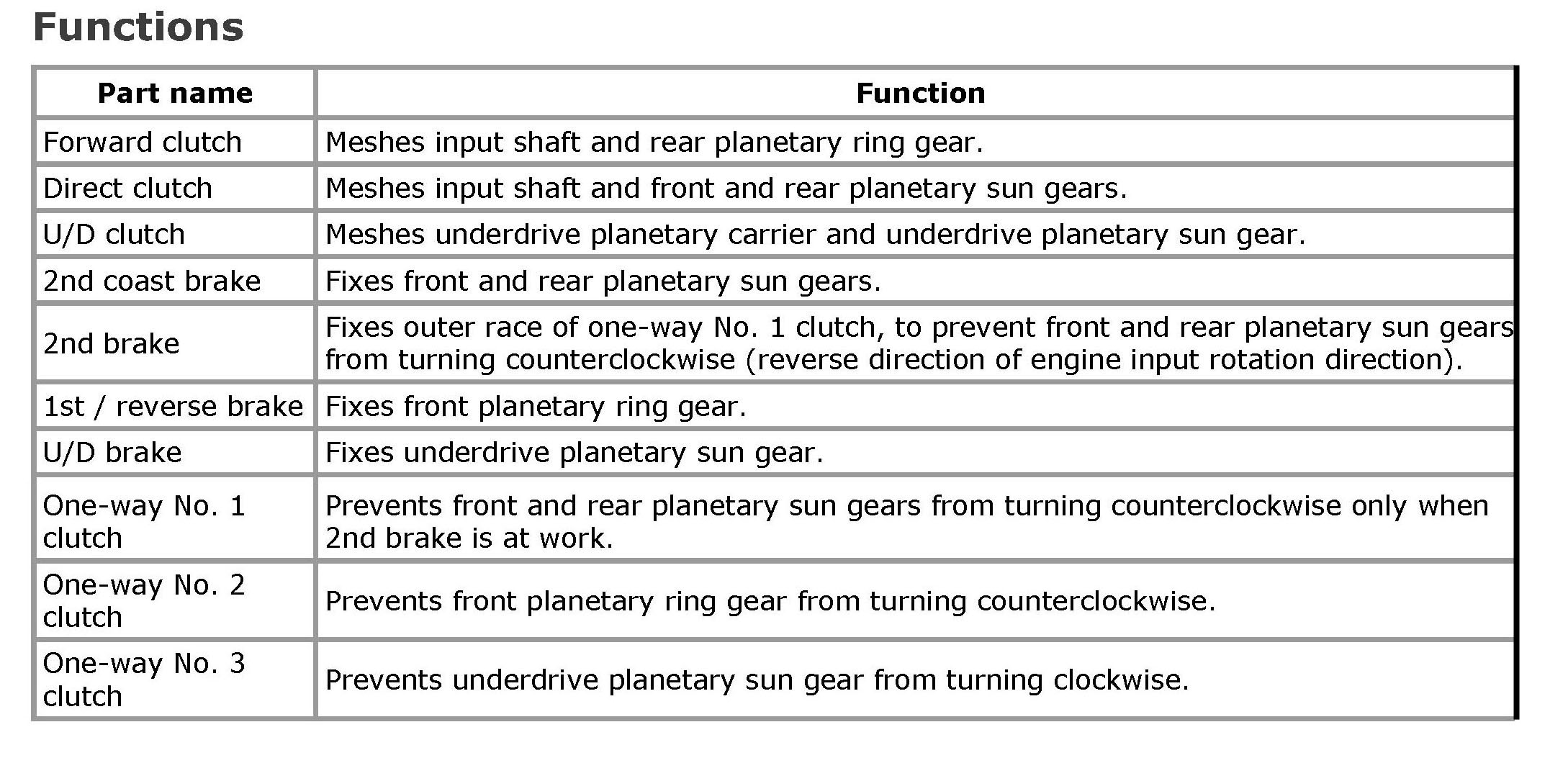

Functions

Functions:
