Automatic Transmission/Transaxle: Application and ID

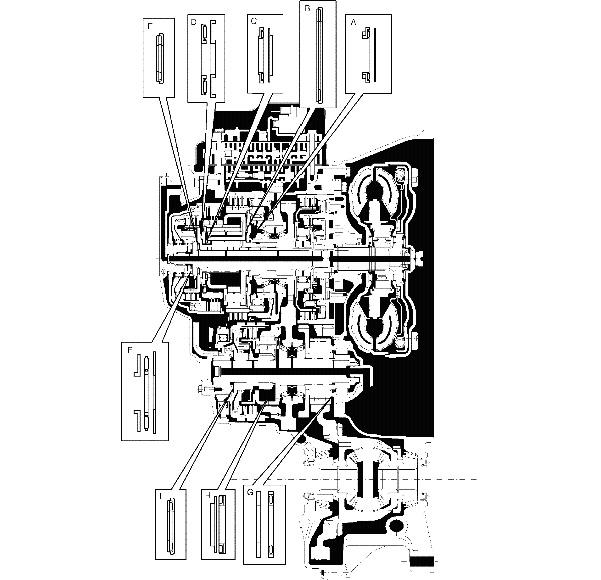

Bearing and Race Installation Diagram

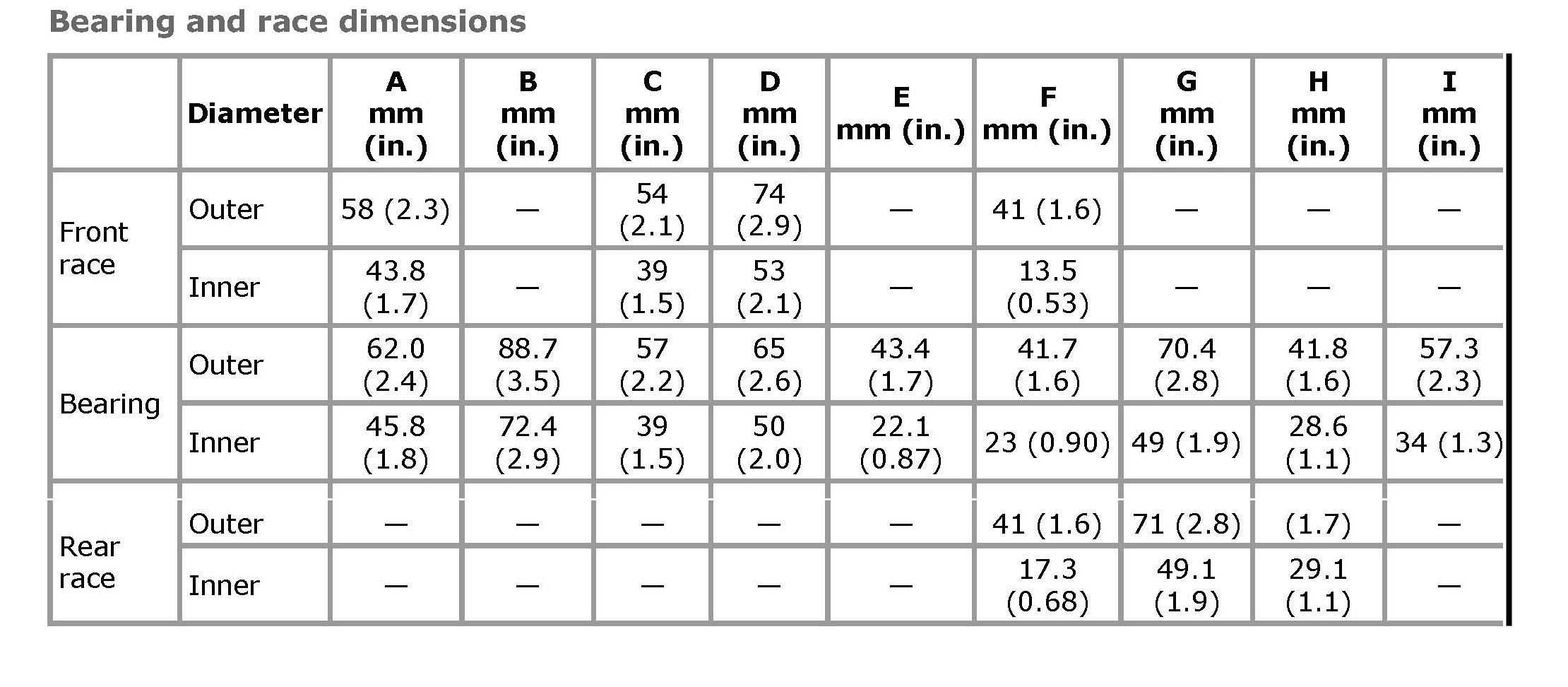

Bearing and race dimensions

Bearing and race dimensions:
