Fuse: Application and ID

FUSES AND THE PROTECTED PARTS
The chart describes what parts each fuse protects.

Main Fuse Box View:

Main Fuse Box Application Table:

Main Fuse Box

Supplementary Fuse Box (No.1) View:

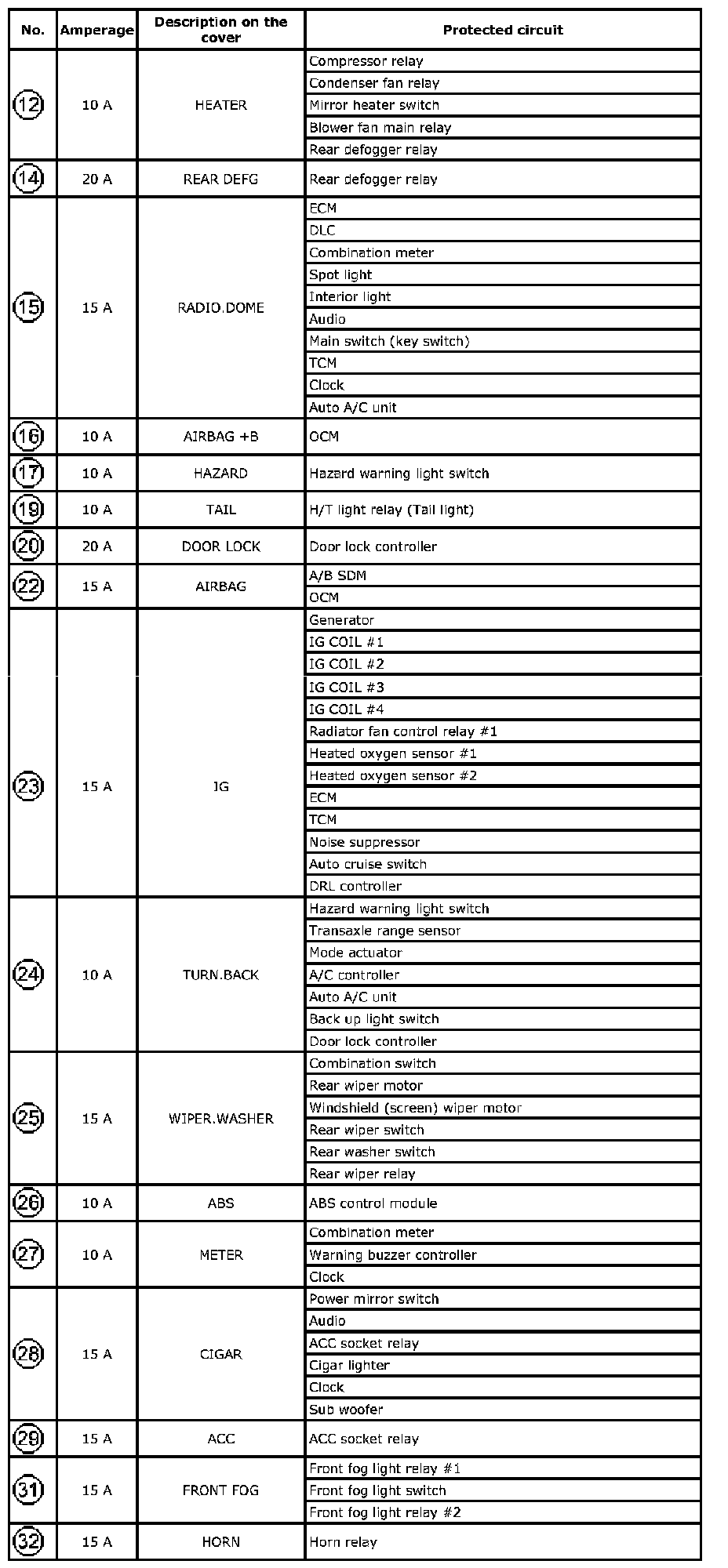

Supplementary Fuse Box (No.1) Application Table Fuse 12-Fuse 32:

Supplementary Fuse Box (No.2) View:

Supplementary Fuse Box (No.2) Application Table Fuse 33:

Individual Circuit Fuse Box, Supplementary Fuse Box (No. 1), Supplementary Fuse Box (No. 2)
