ECM Power and Ground Circuit Check

ECM Power and Ground Circuit Check

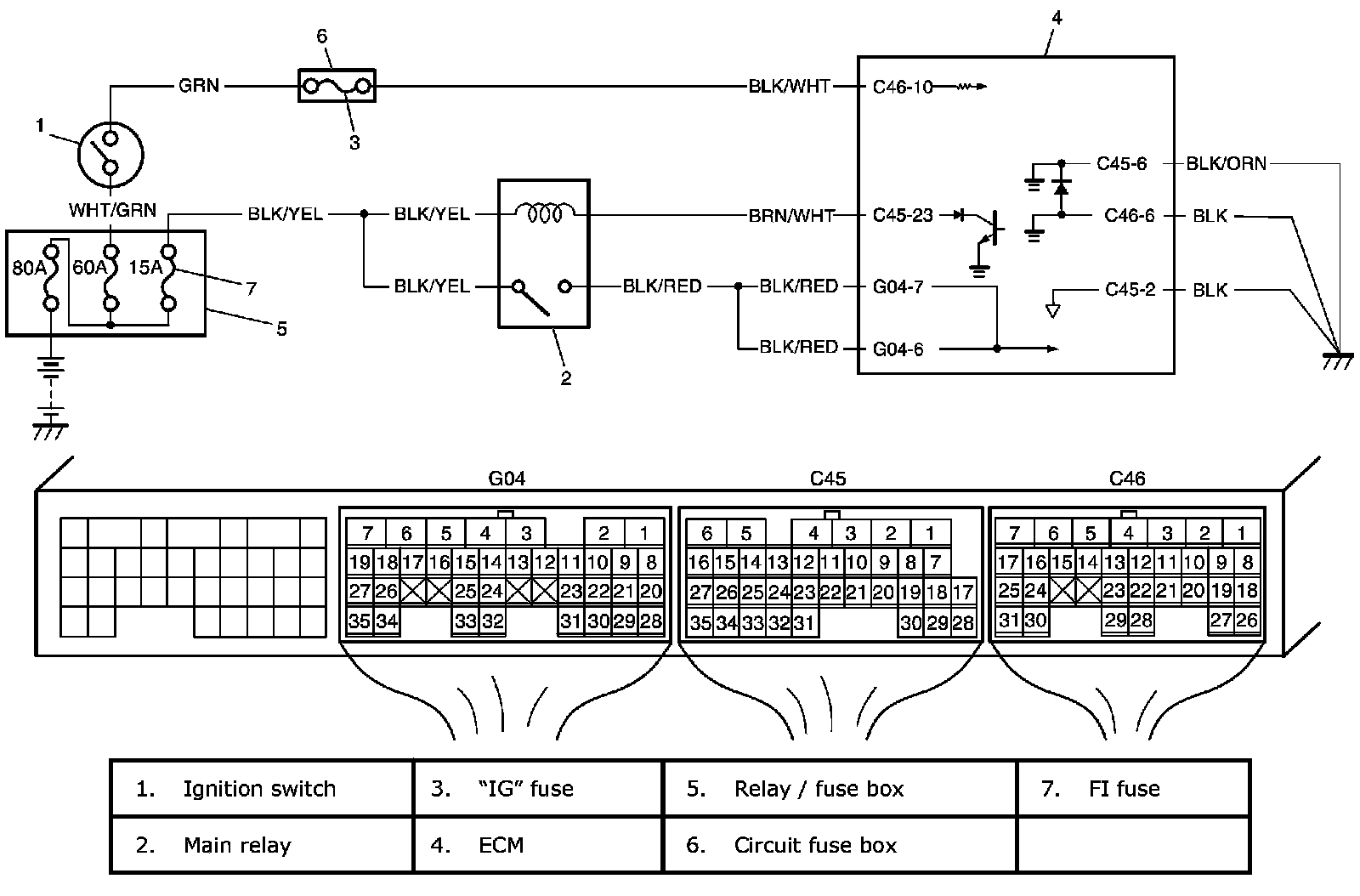

Wiring Diagram:

Wiring Diagram

Circuit Description
When the ignition switch tuned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM.

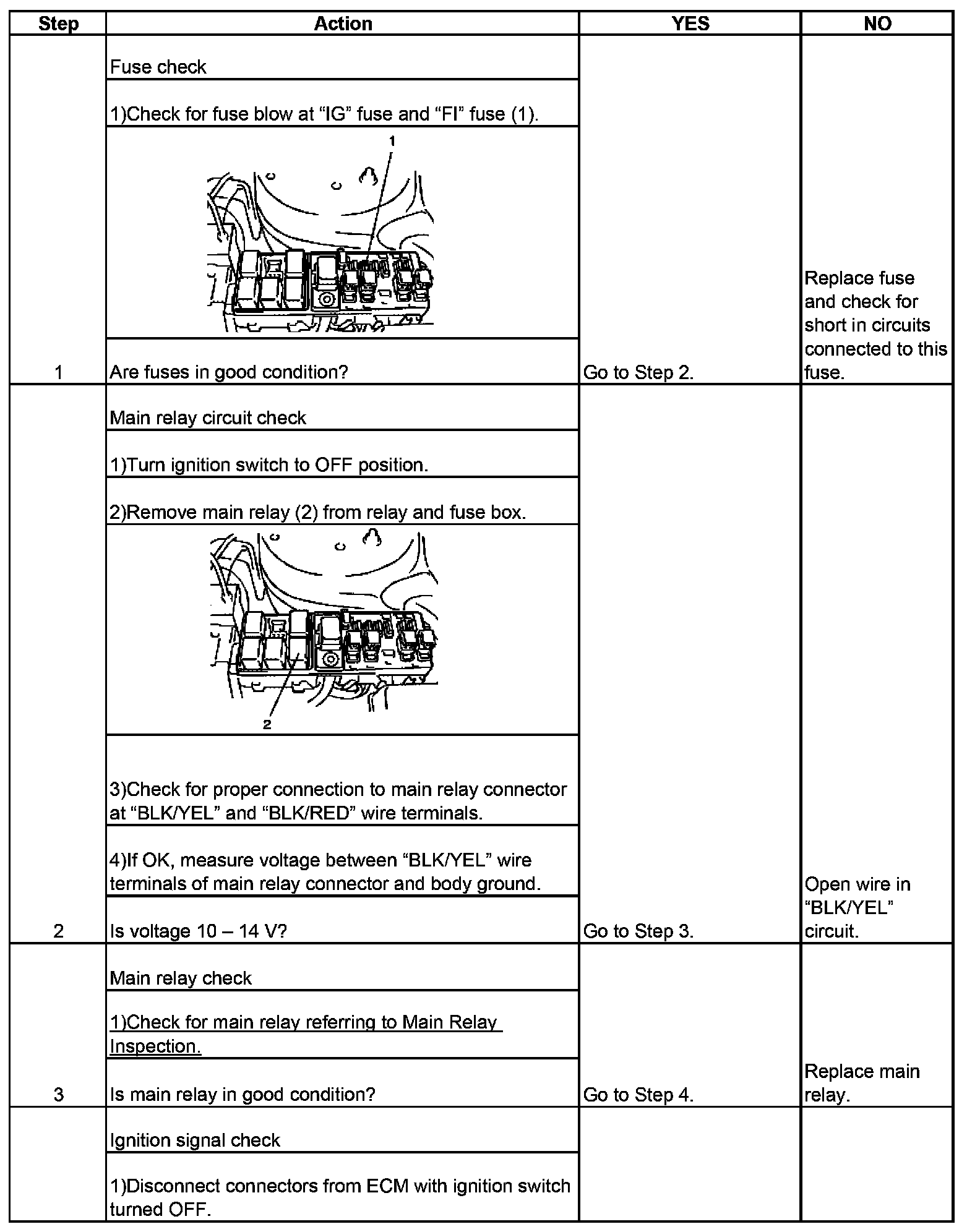

Step 1-4(Continued):

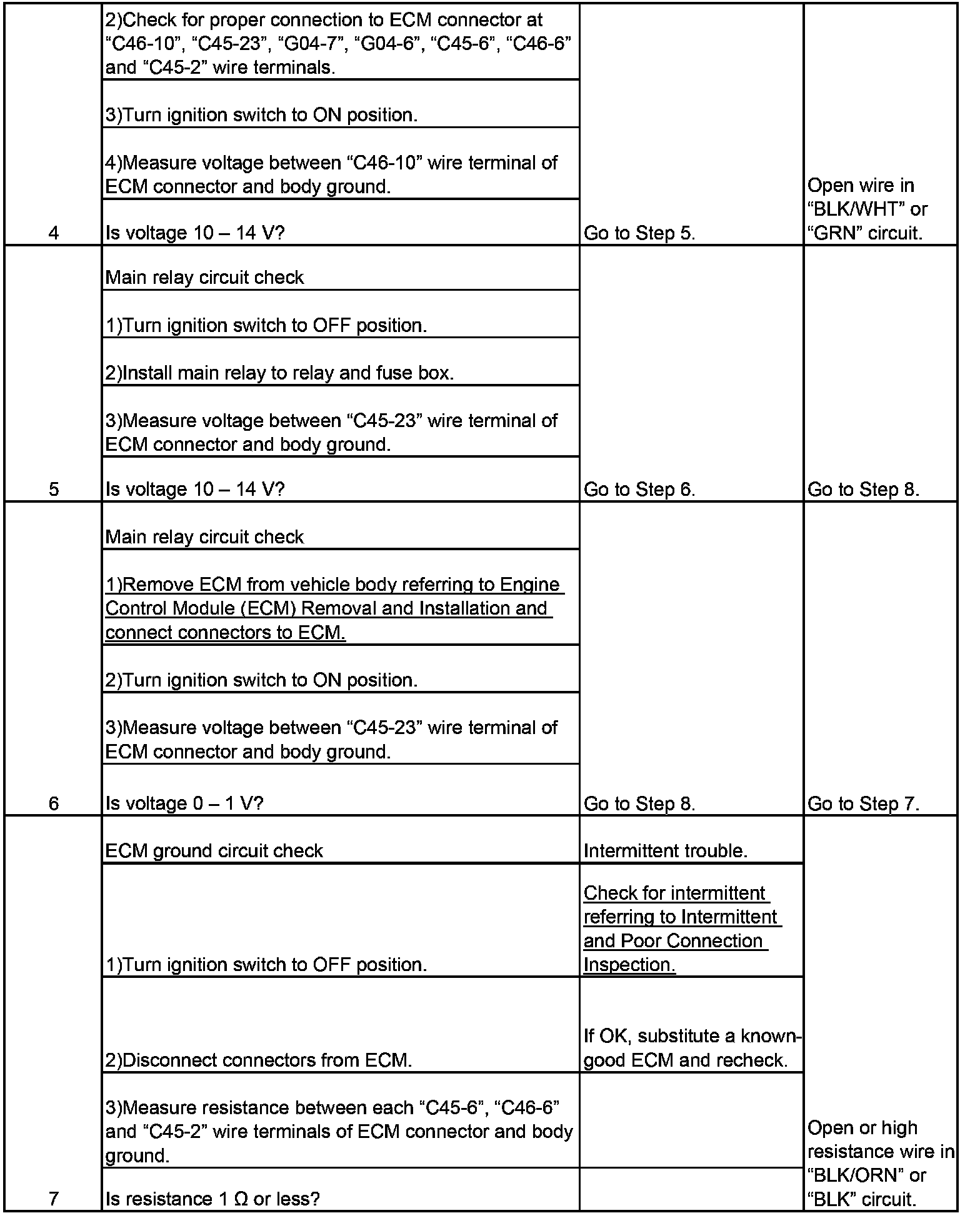

Step 4(Continued)-7:

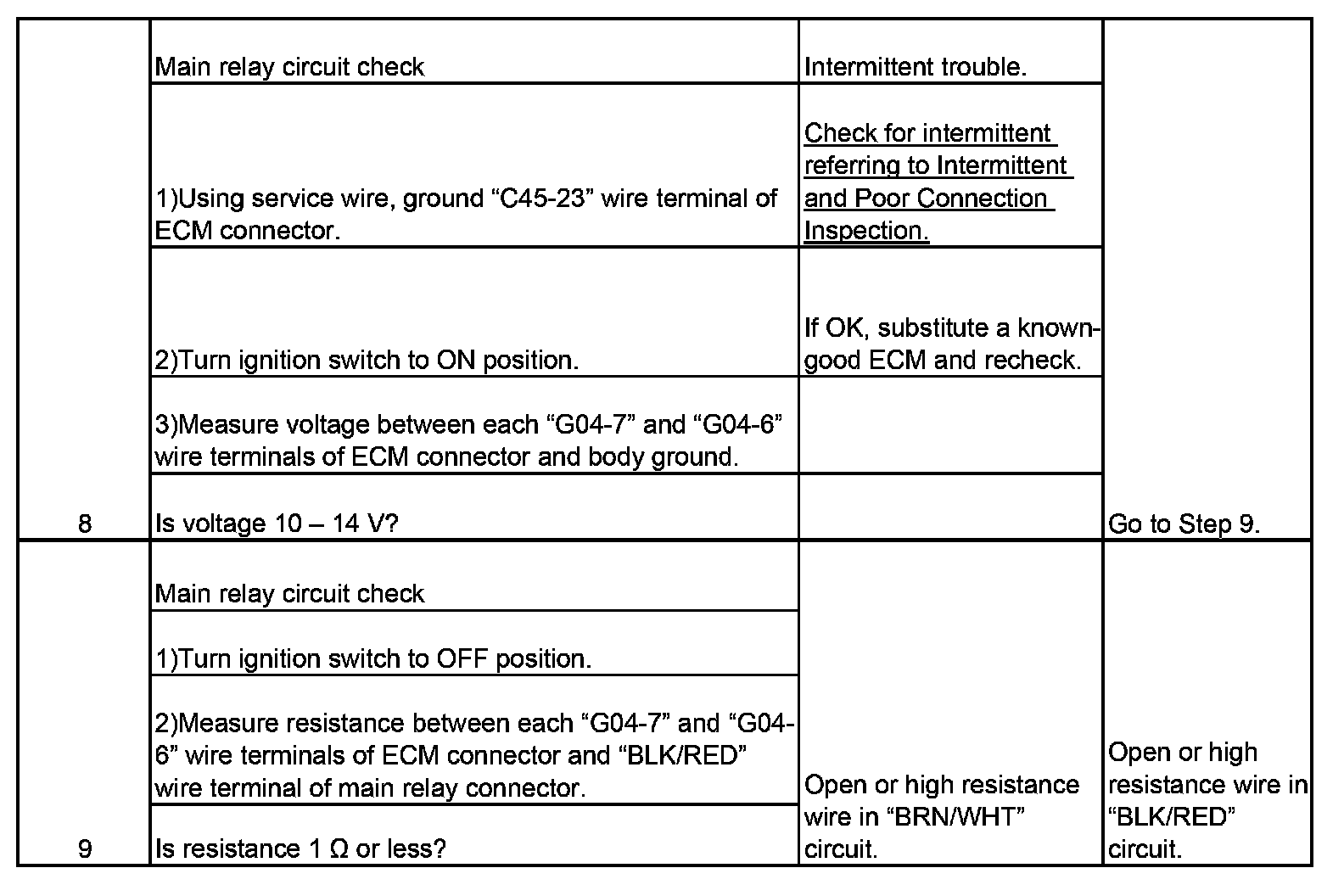

Step 8-9:

Troubleshooting
