Idle Air Control (IAC) System Check

Idle Air Control (IAC) System Check

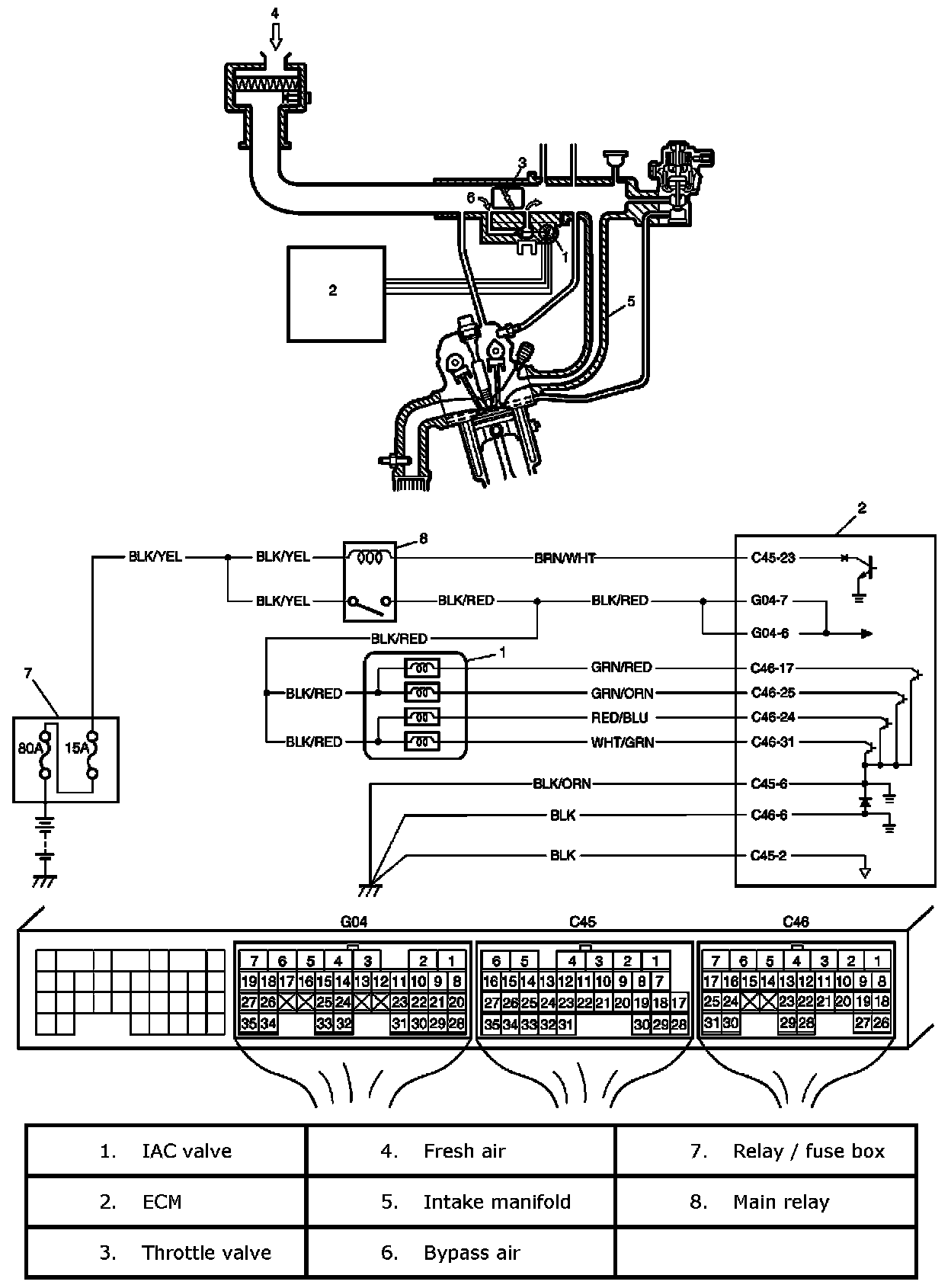

System/Wiring Diagram:




System / Wiring Diagram

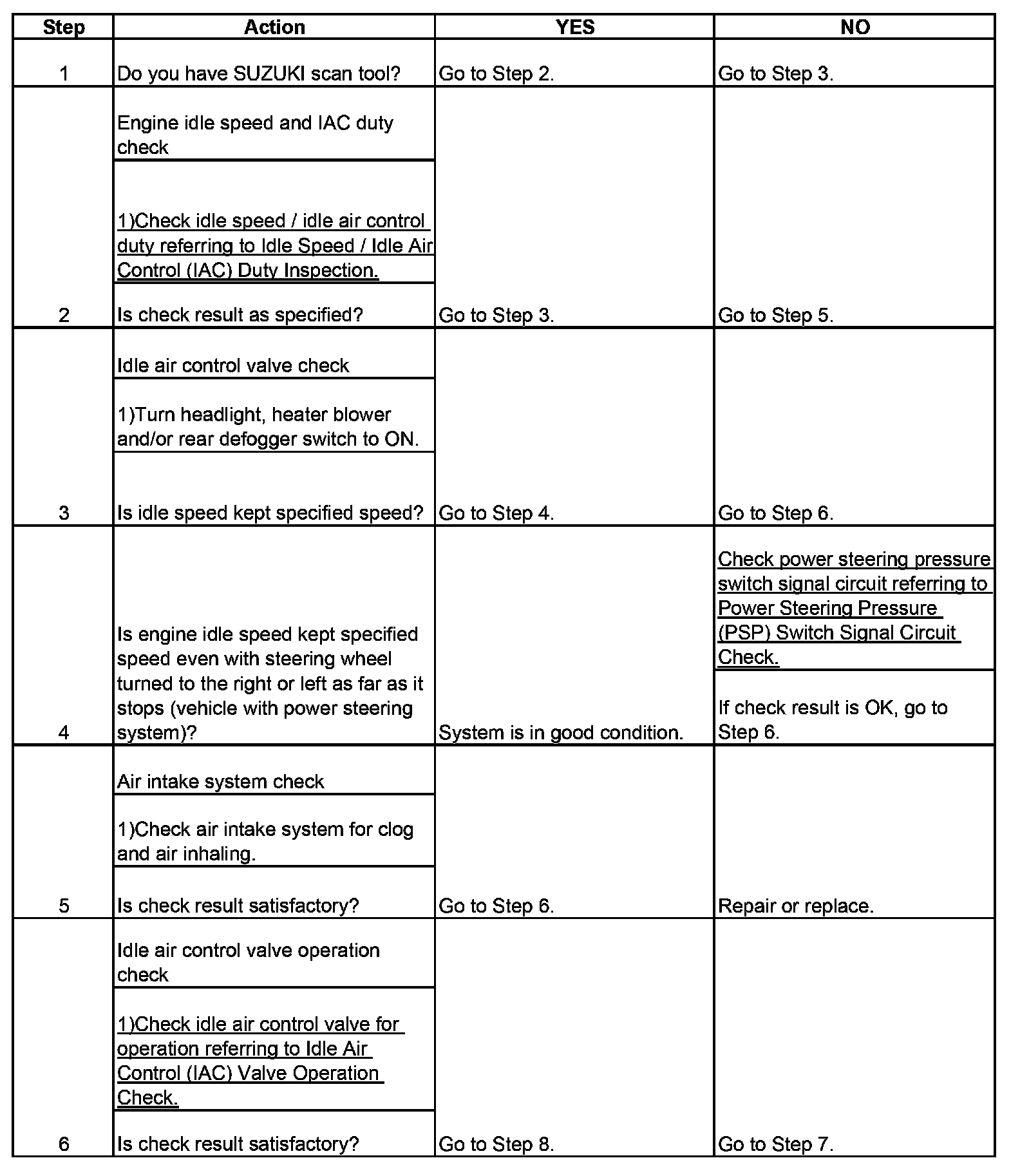

Step 1-6:

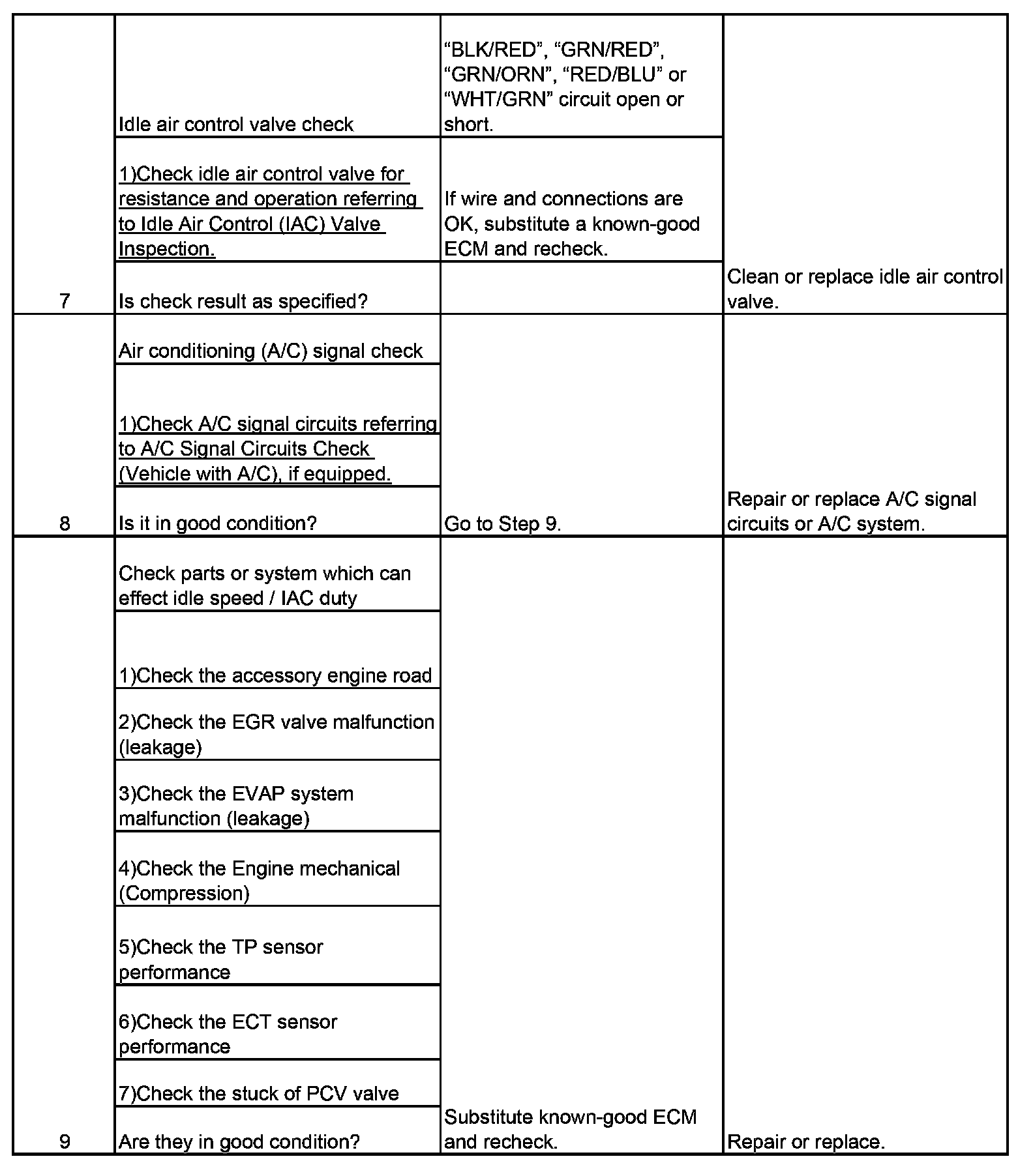

Step 7-9:




Troubleshooting
