Wagon Model

License Lamp Assembly (For Wagon Model) Removal and Installation

Removal
1. Remove back door garnish.

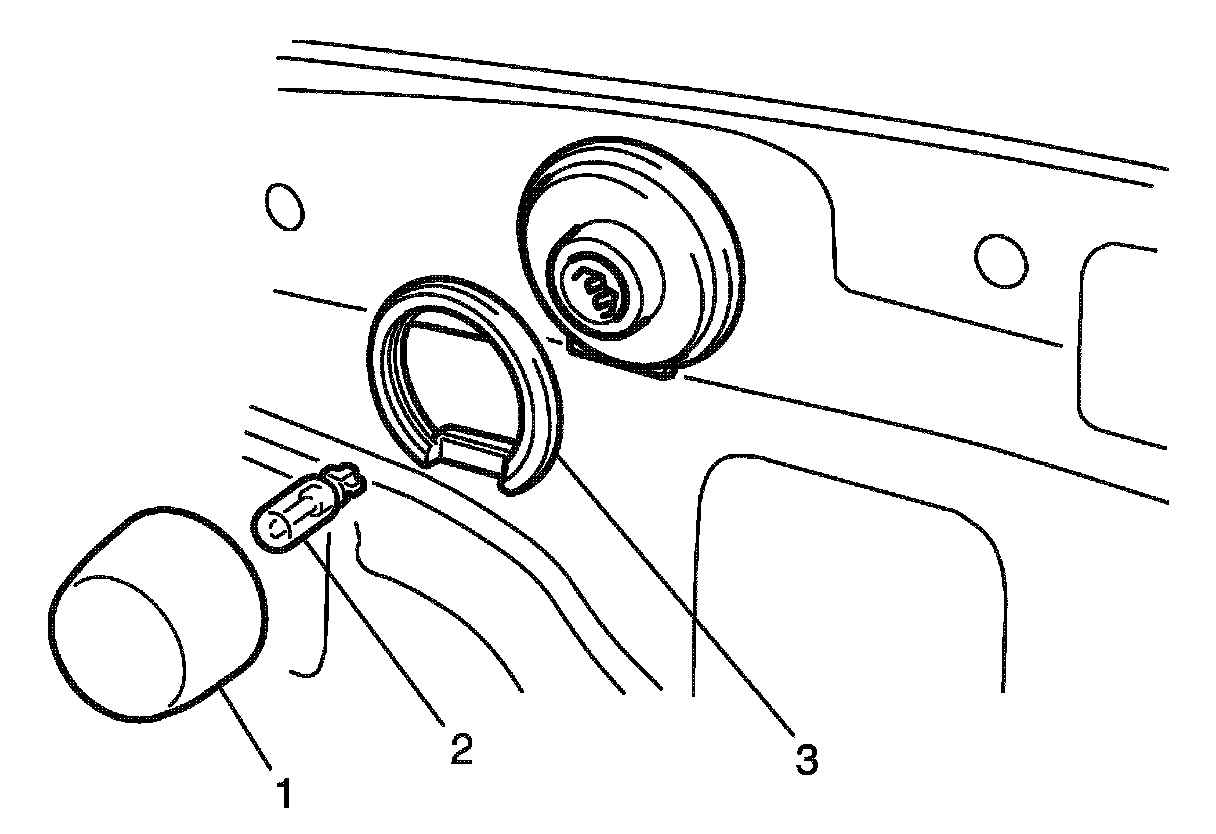

2. Remove licence lamp lens (1), licence lamp bulb (2) and licence lamp socket cover (3).

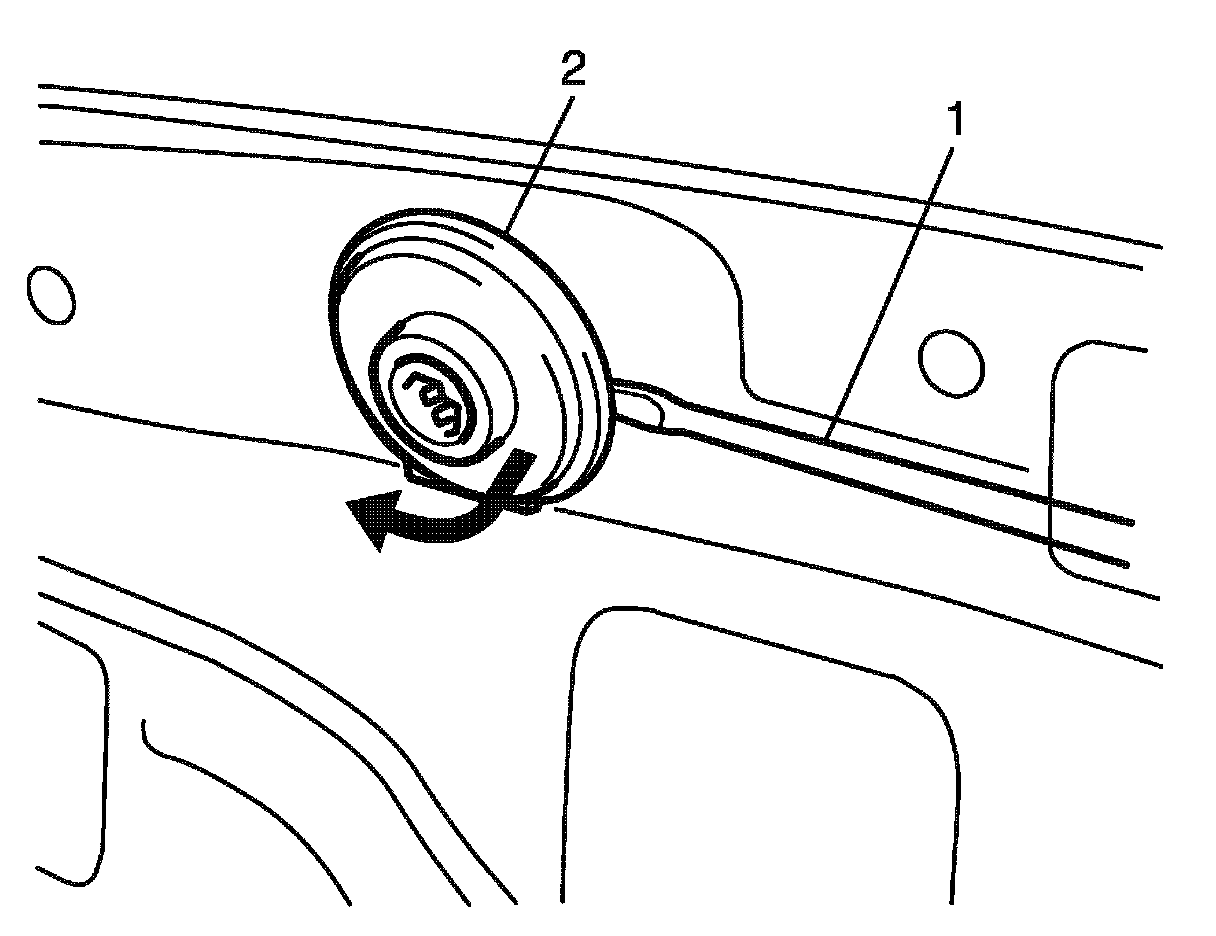

3. Using flat head screw driver or the like (1), push locking part of licence lamp socket (2).And then, remove licence lamp socket (2) as shown.

CAUTION: To prevent vehicle body from scratch, wrap flat head screw driver or the like (1) with tape.

Installation
Reverse removal procedure.
