Headlight Housing Removal and Installation

HEADLIGHT HOUSING REMOVAL AND INSTALLATION

Removal
1. Disconnect negative (-) cable at battery.
2. Remove front bumper. Refer to Front Bumper and Rear Bumper Components.
3. Remove headlight mounting bolts and clip.

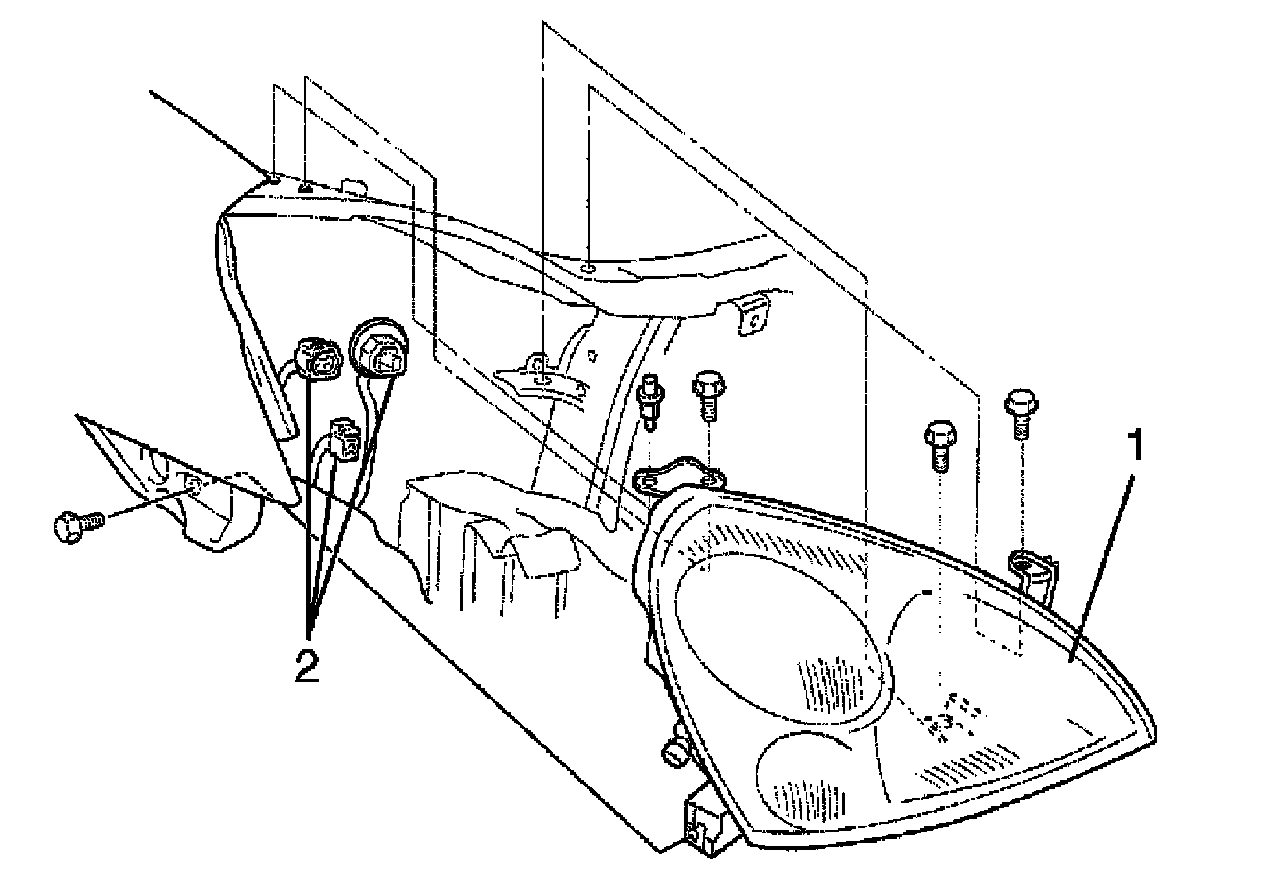

4. Detach headlight housing (1) from vehicle.




5. Disconnect couplers (2) from headlight housing (1).

Installation
Reverse removal procedure noting the following.

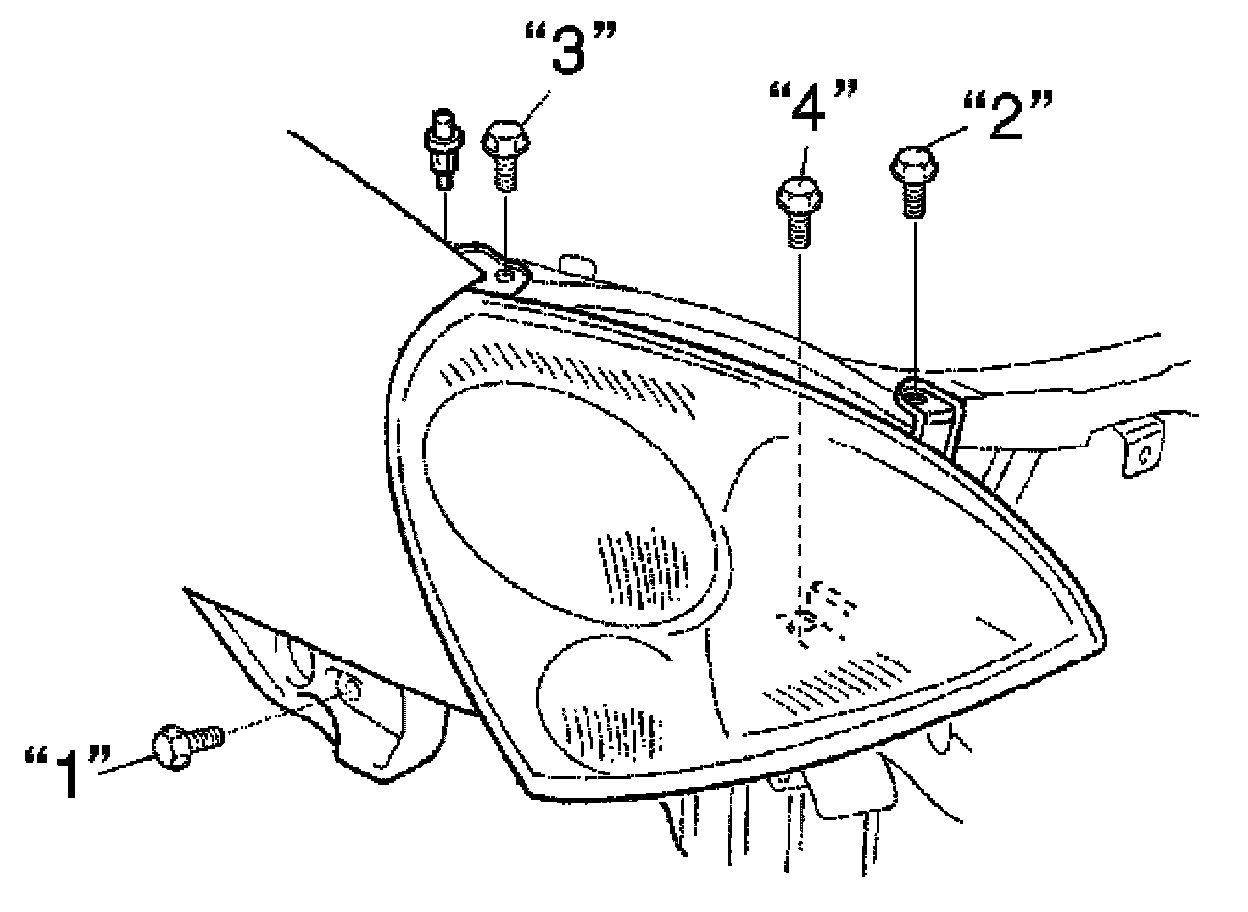

- Install headlight mounting bolts and clip, and then tighten headlight mounting bolts ("1"-"4") according to numerical order is as shown.
