Headlight Diode Removal and Installation
Headlight Diode Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove glove box from instrument panel.

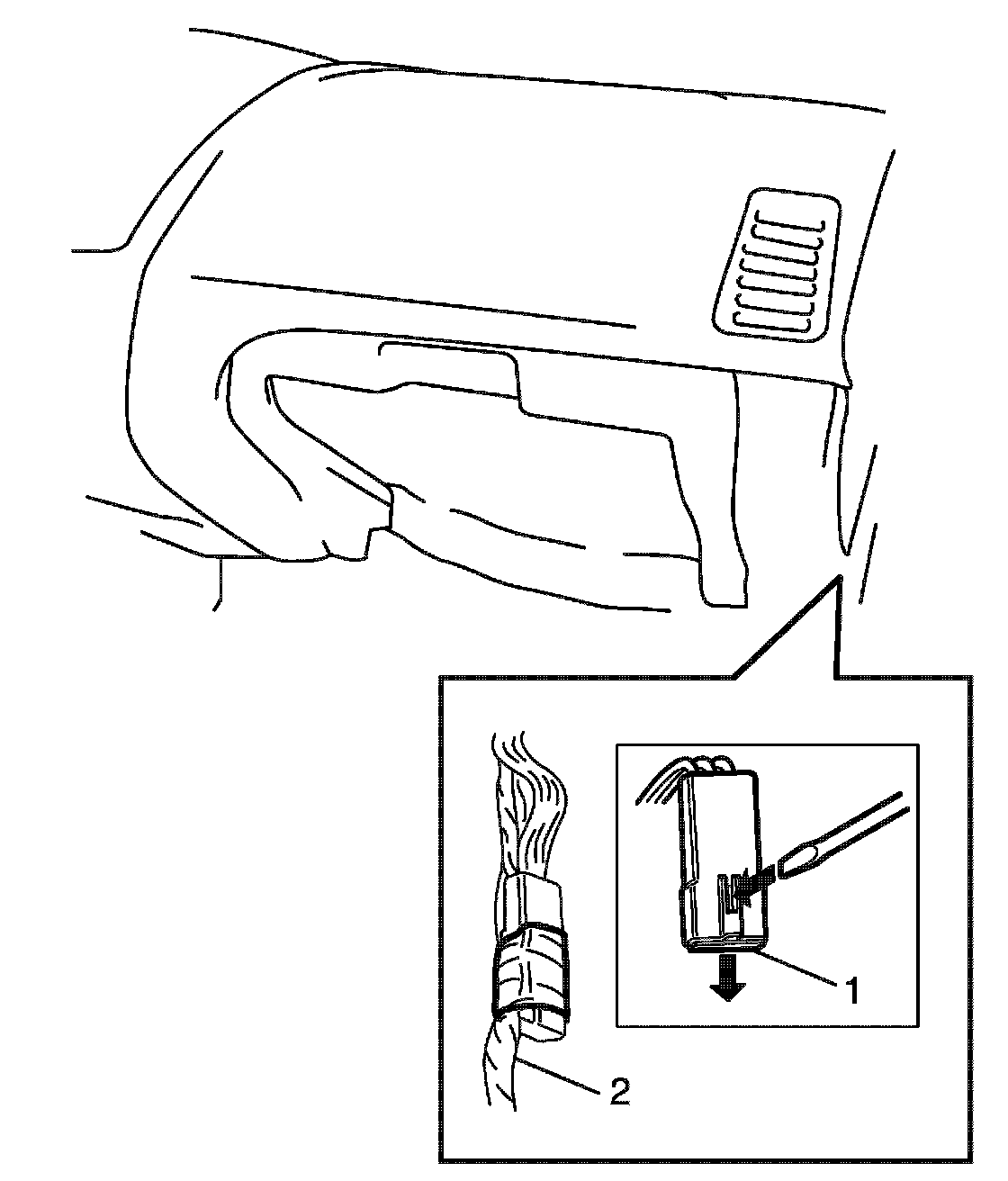

3. Remove headlight diode (1) from main harness (2) as shown in figure.
Installation
Reference: Headlight Diode Inspection
Reverse removal procedure.
