Fog/Driving Lamp: Service and Repair

Front Fog Light Assembly Removal and Installation

Removal




1. Disconnect negative (-) cable at battery.
2. Remove front bumper. Refer to Front Bumper and Rear Bumper Components.

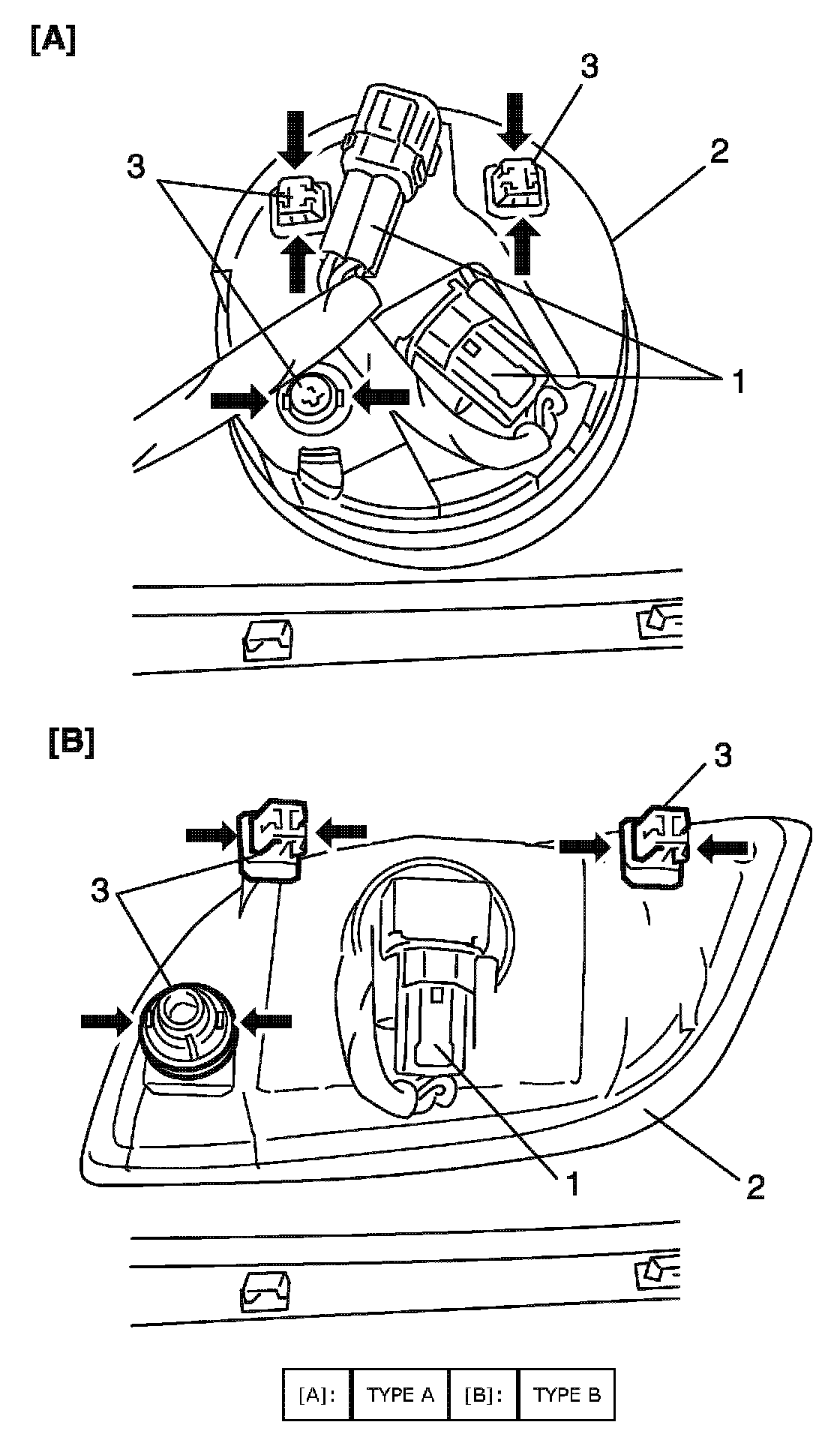

3. Disconnect couplers (1) from fog light (2).
4. Detach fog light (2) pushing clips (3) to arrow direction.

Installation




Reverse removal procedure noting the following.

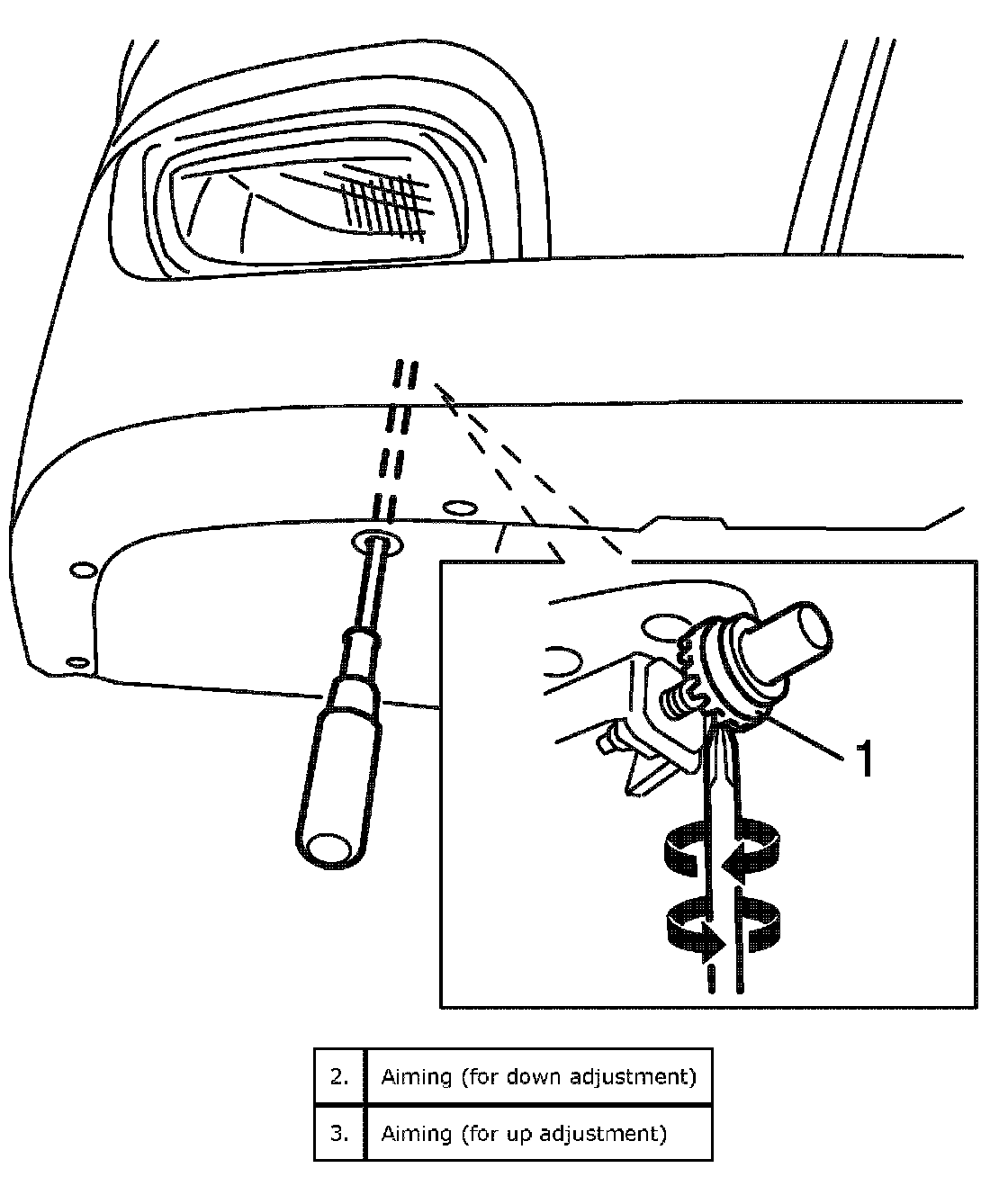

- After installing, adjust aiming (1) with adjusting screw according to local regulation if obligated.
