Brake Light Switch: Testing and Inspection
Brake Light Switch
Inspection

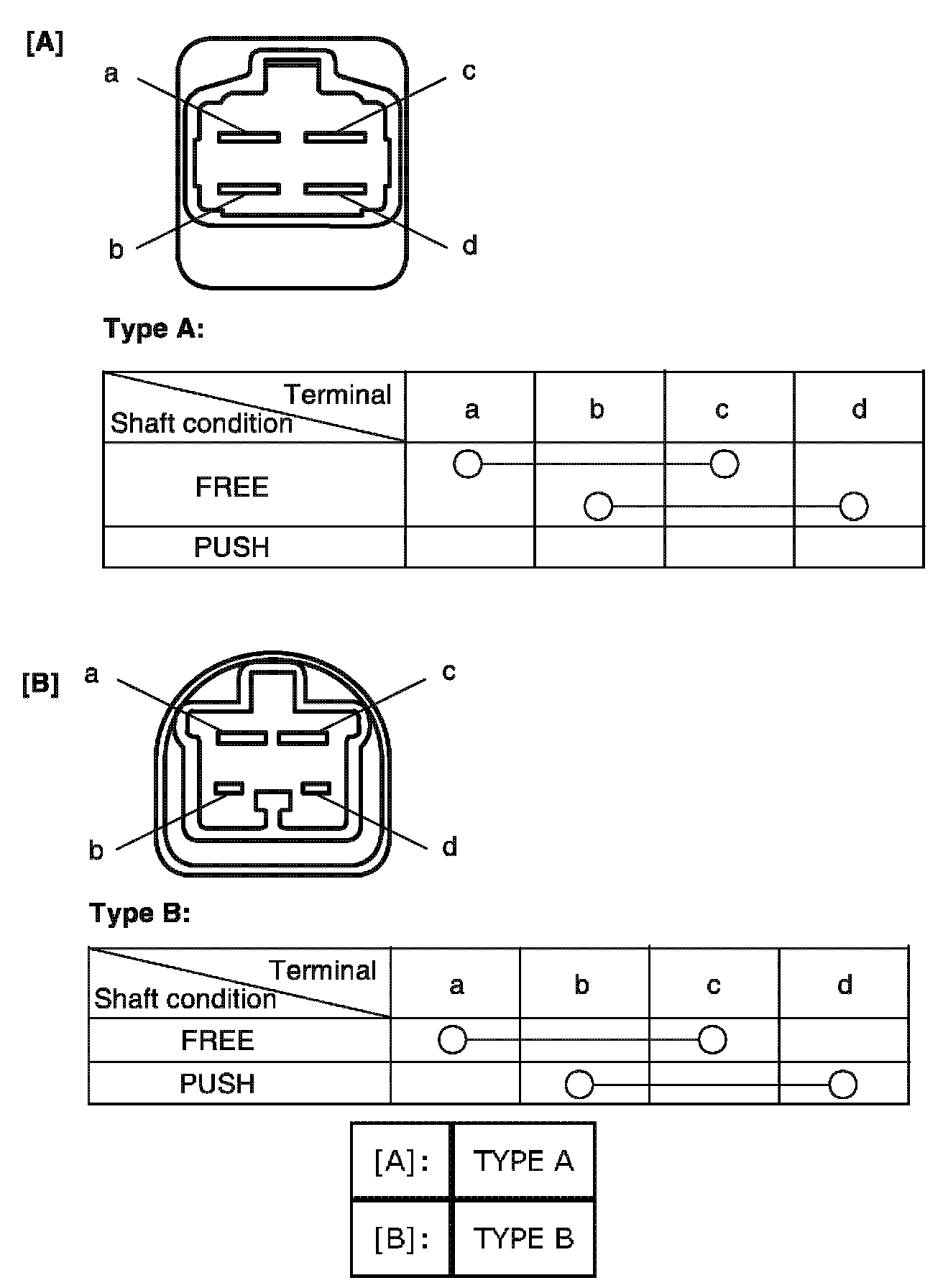

Check
brake light switch
for continuity between terminals at each switch position.If check result is not as specified, replace switch.
