Information Display Removal and Installation

Information Display Removal and Installation

Removal

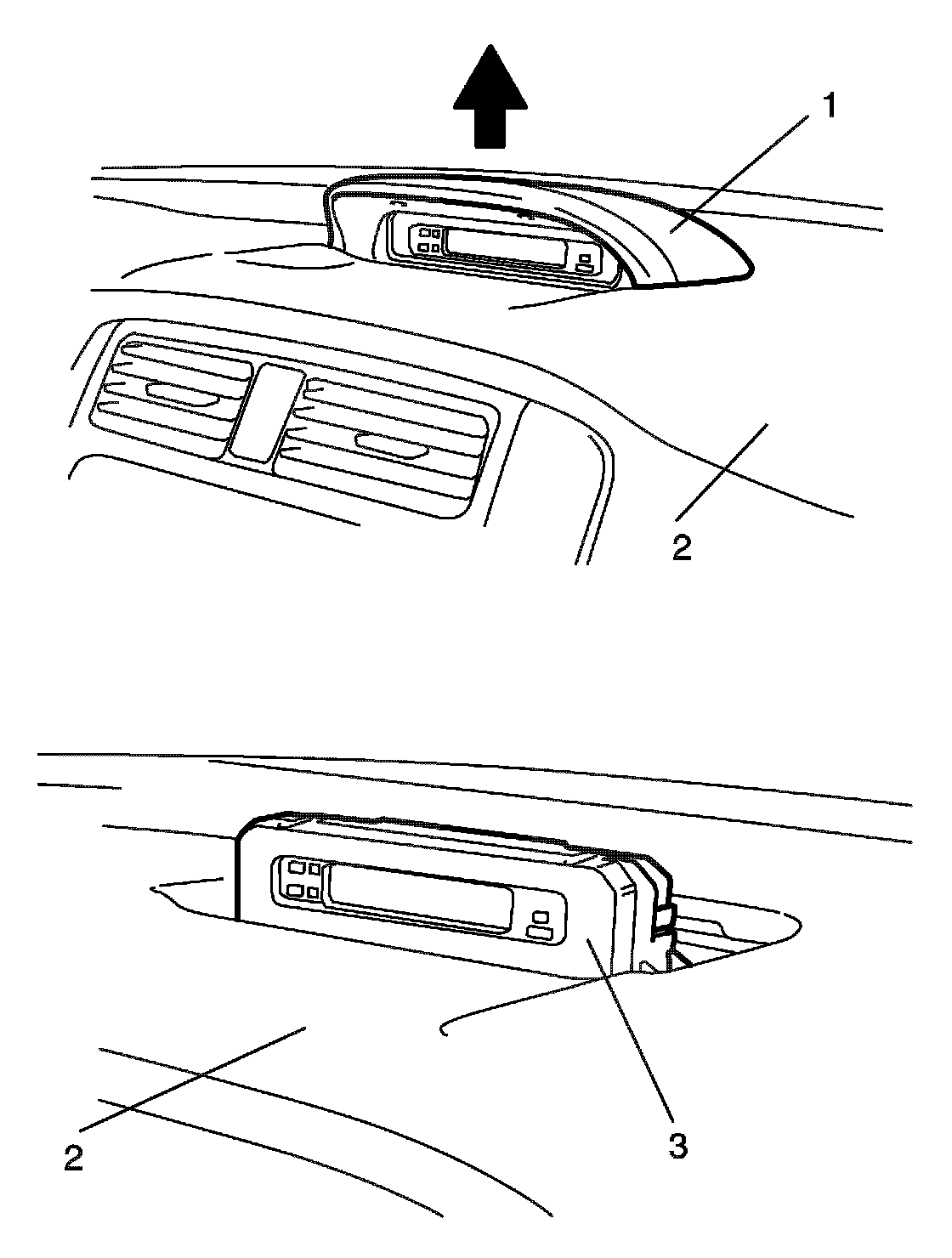

1. Remove information display garnish (1) from instrument panel (2) pulling it arrow direction as shown.
2. Remove 2 mounting screws of information display (3).
3. Remove information display (3) from instrument panel (2).
4. Disconnect information display coupler.

Installation
Reverse removal procedure.
