A/C Condenser Fan Control System Inspection
A/C Condenser Fan Control System Inspection

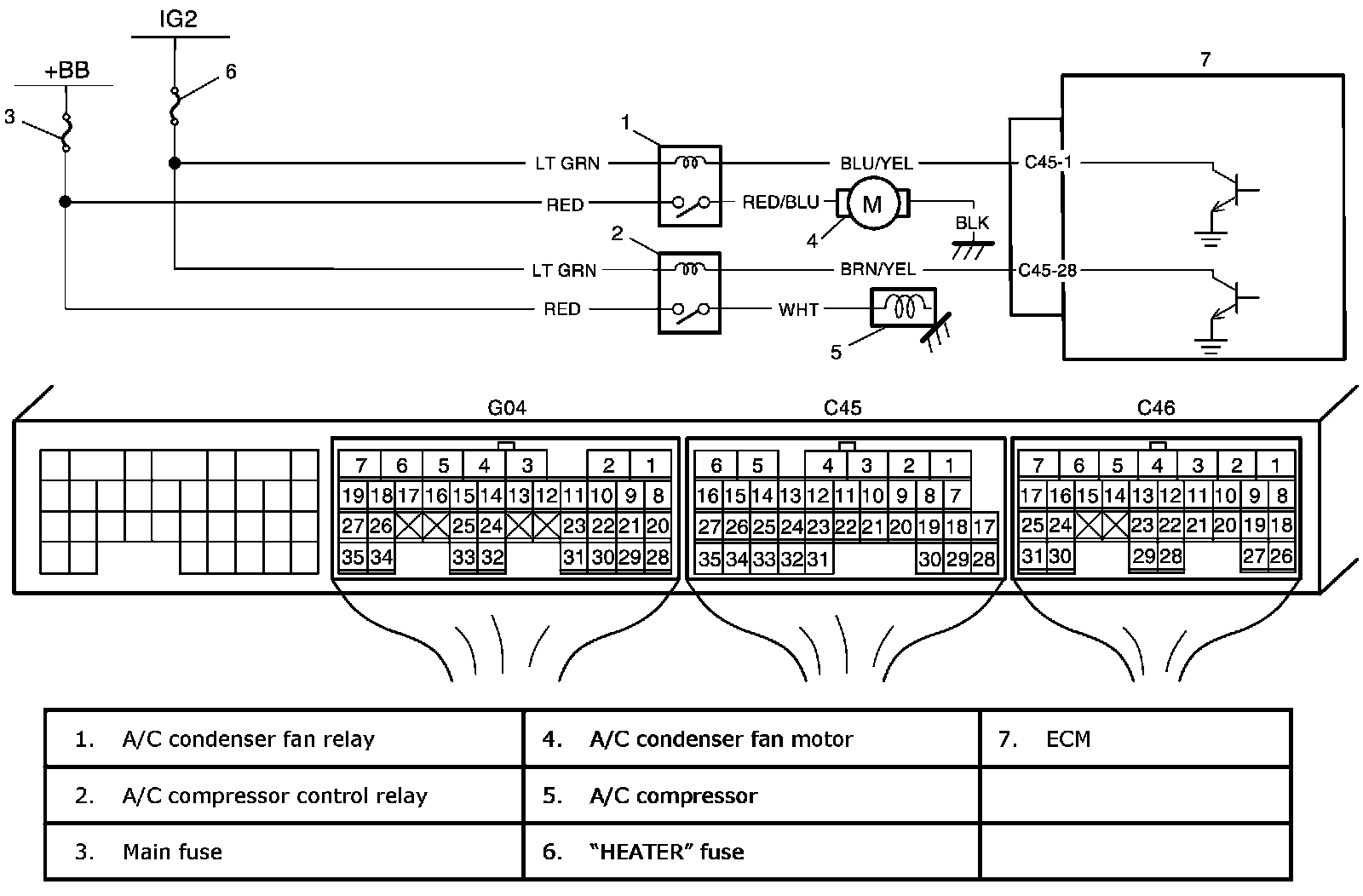

Wiring Diagram:
Wiring Diagram

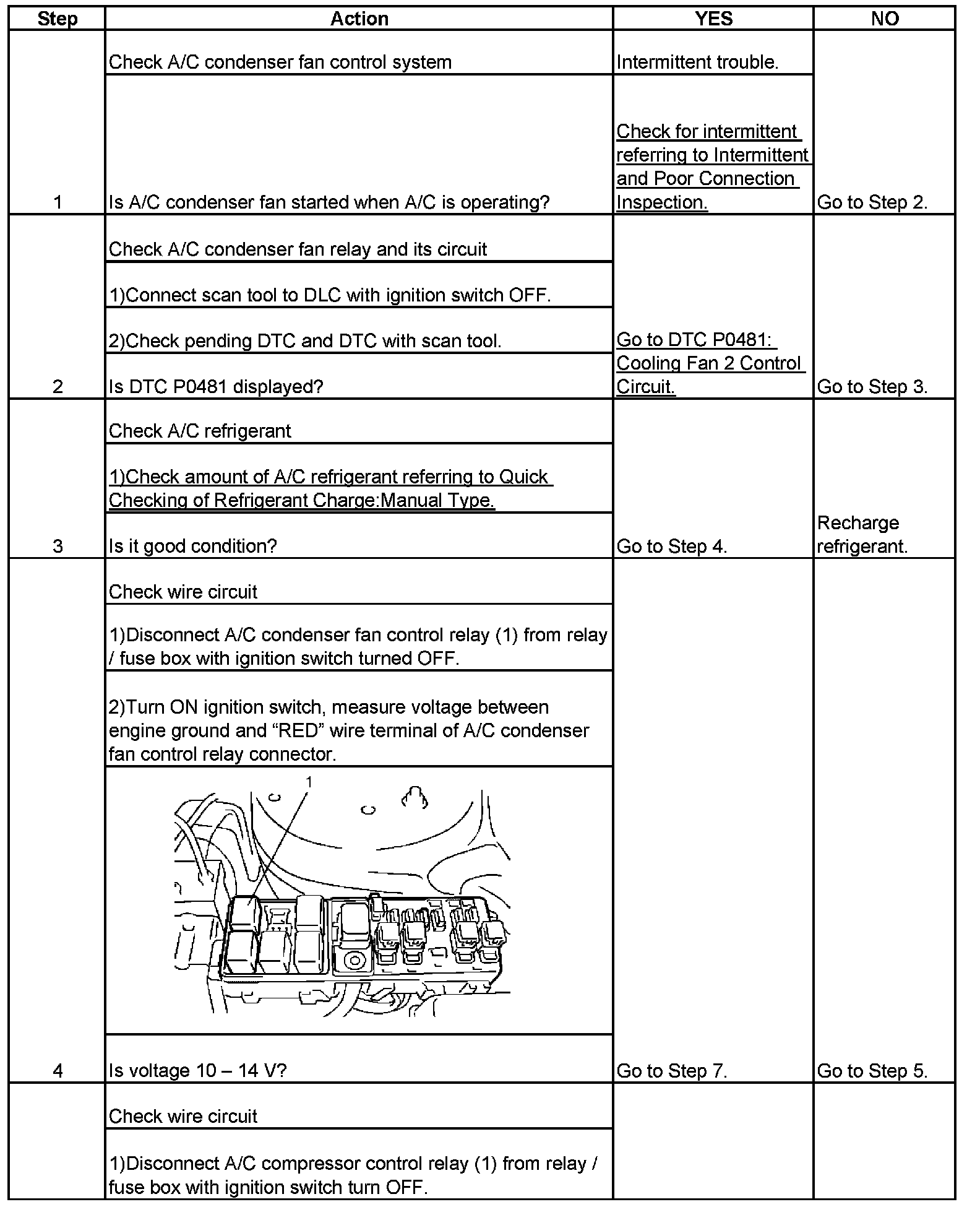

Step 1-5(Continued):

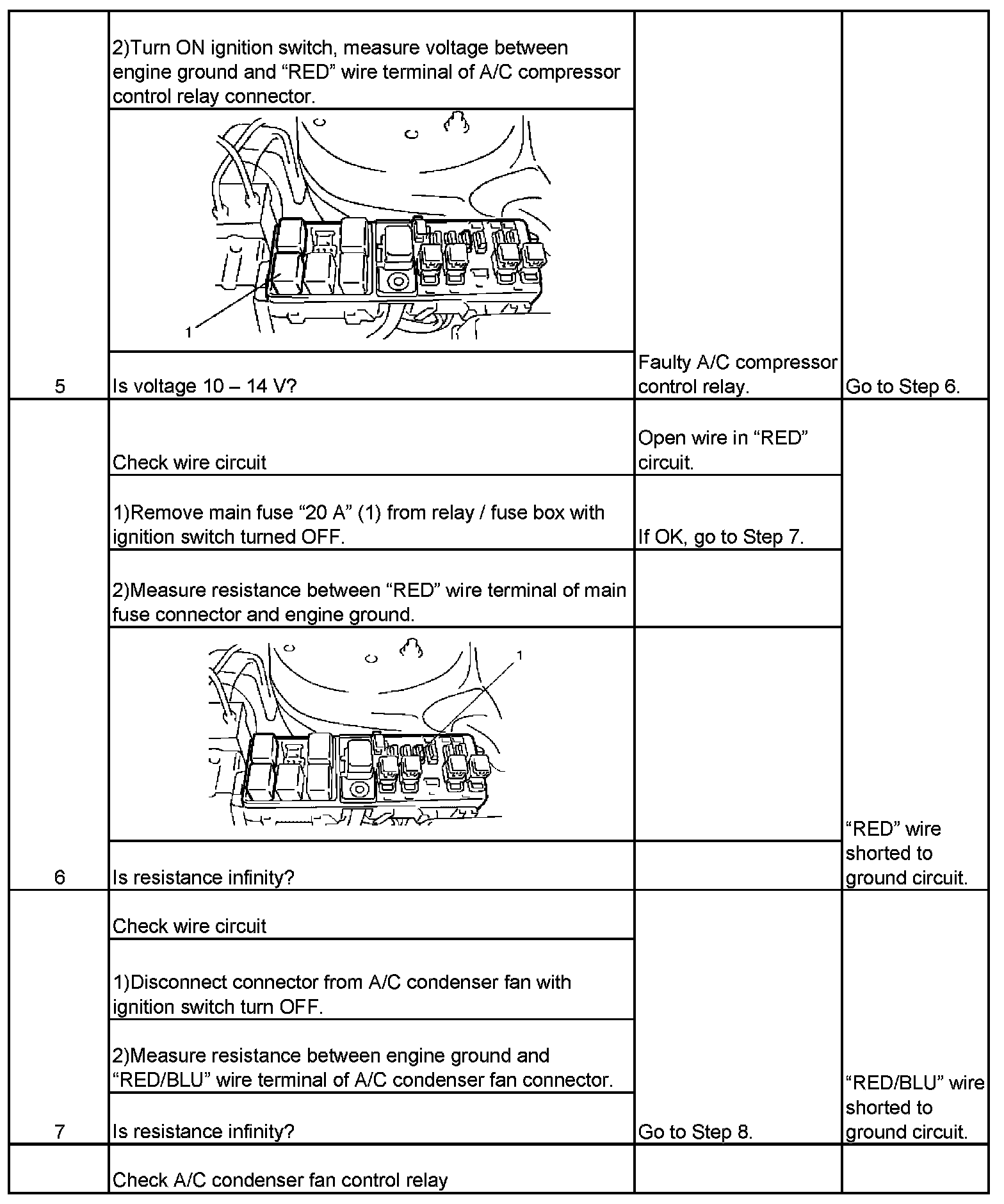

Step 5(Continued)-8(Continued):

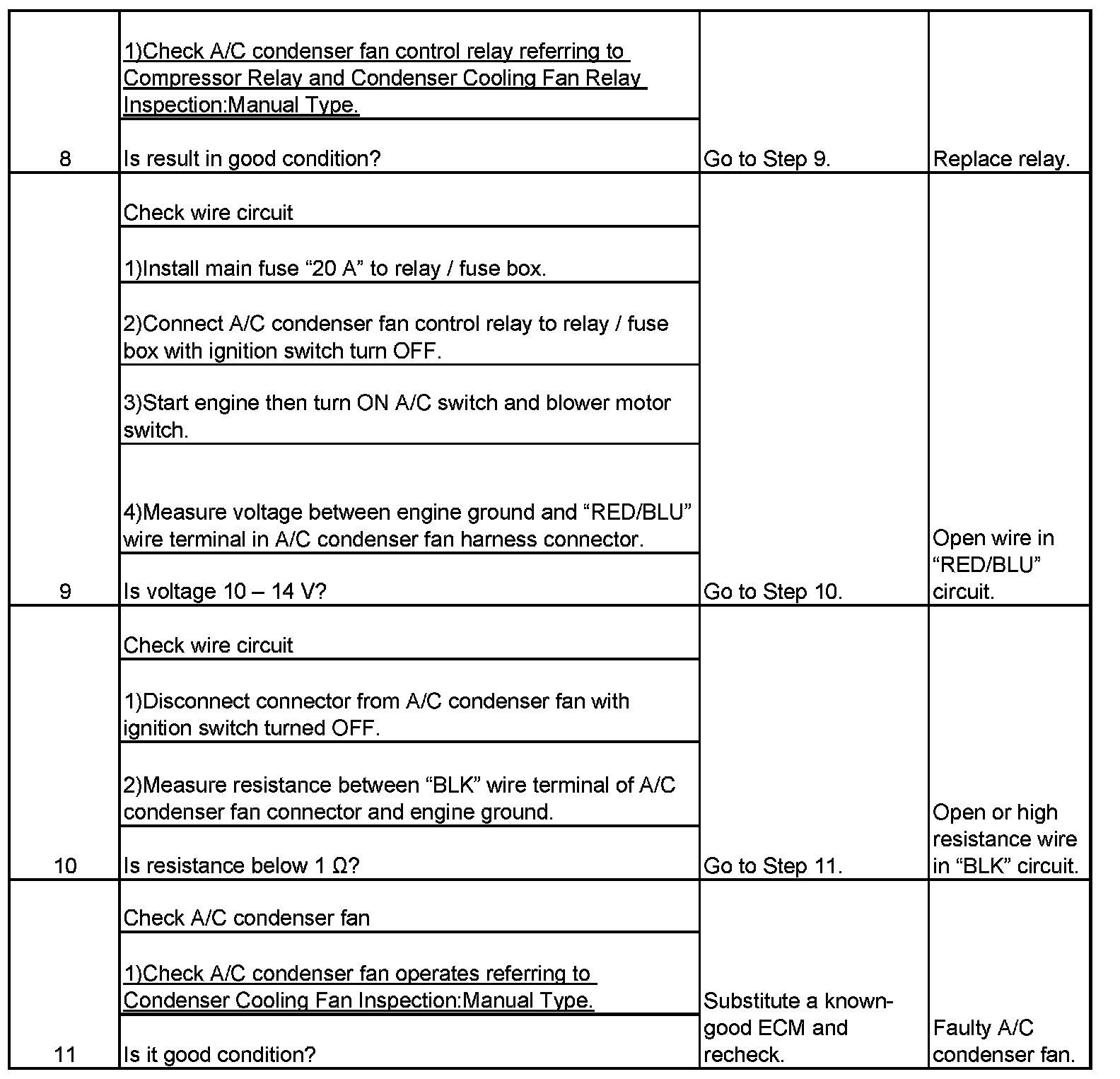

Step 8(Continued)-11:
Troubleshooting
