Compressor Clutch Relay: Locations

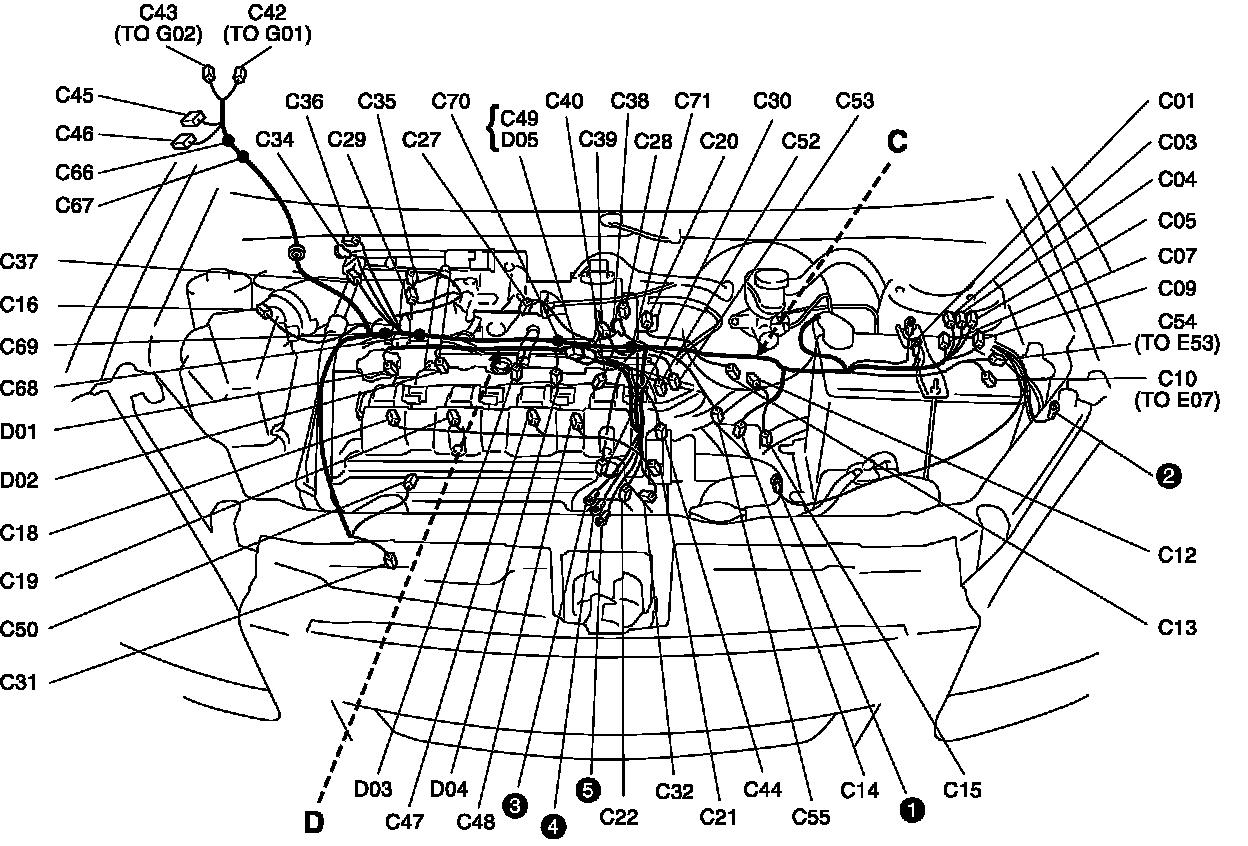

C Engine Harness / D Injector Harness View:

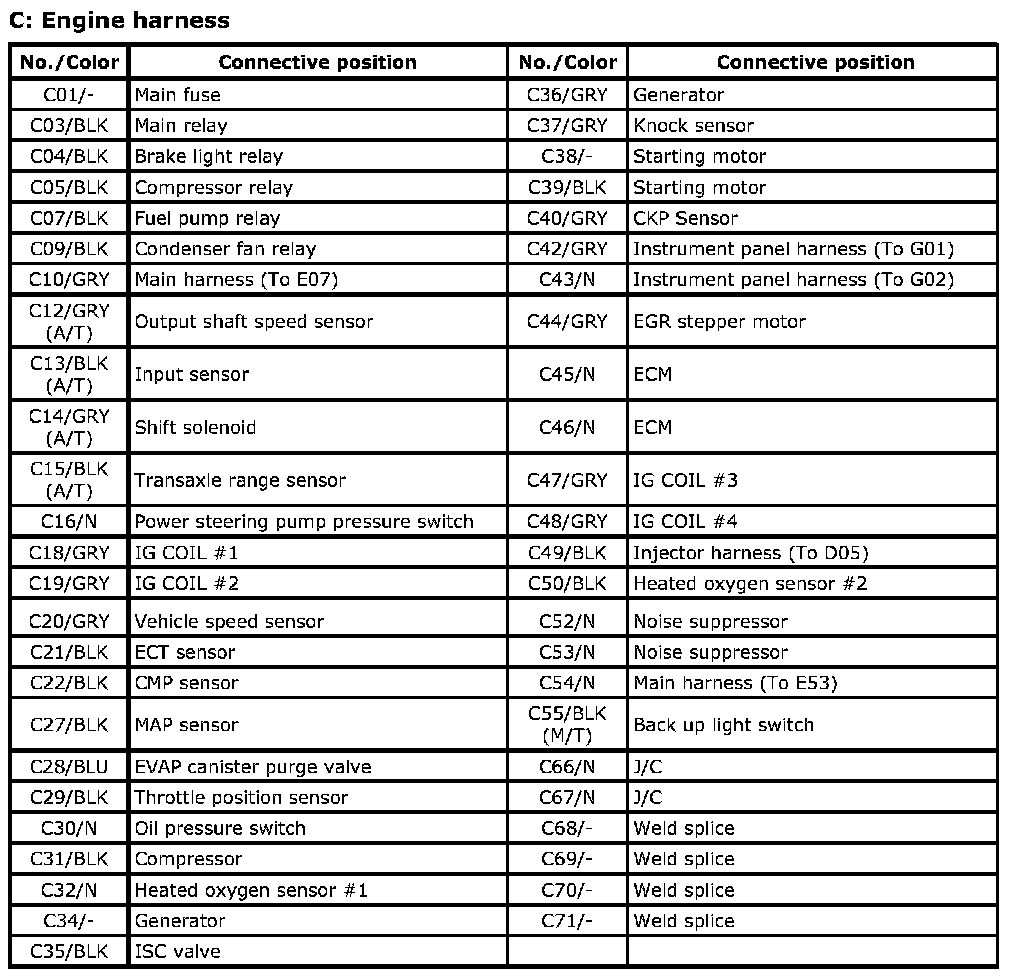

C Engine Harness Index:



Fuse Box View 1:
