Code (DTC) Is Not Outputted Even With Diagnosis Switch Terminal Connected to Ground

Code (DTC) Is Not Outputted Even with Diagnosis Switch Terminal Connected to Ground

Wiring Diagram








Circuit Description
When diagnosis switch terminal is connected to ground with ignition switch turned ON, the ABS control module outputs diagnostic trouble code by flashing ABS warning lamp.

Troubleshooting

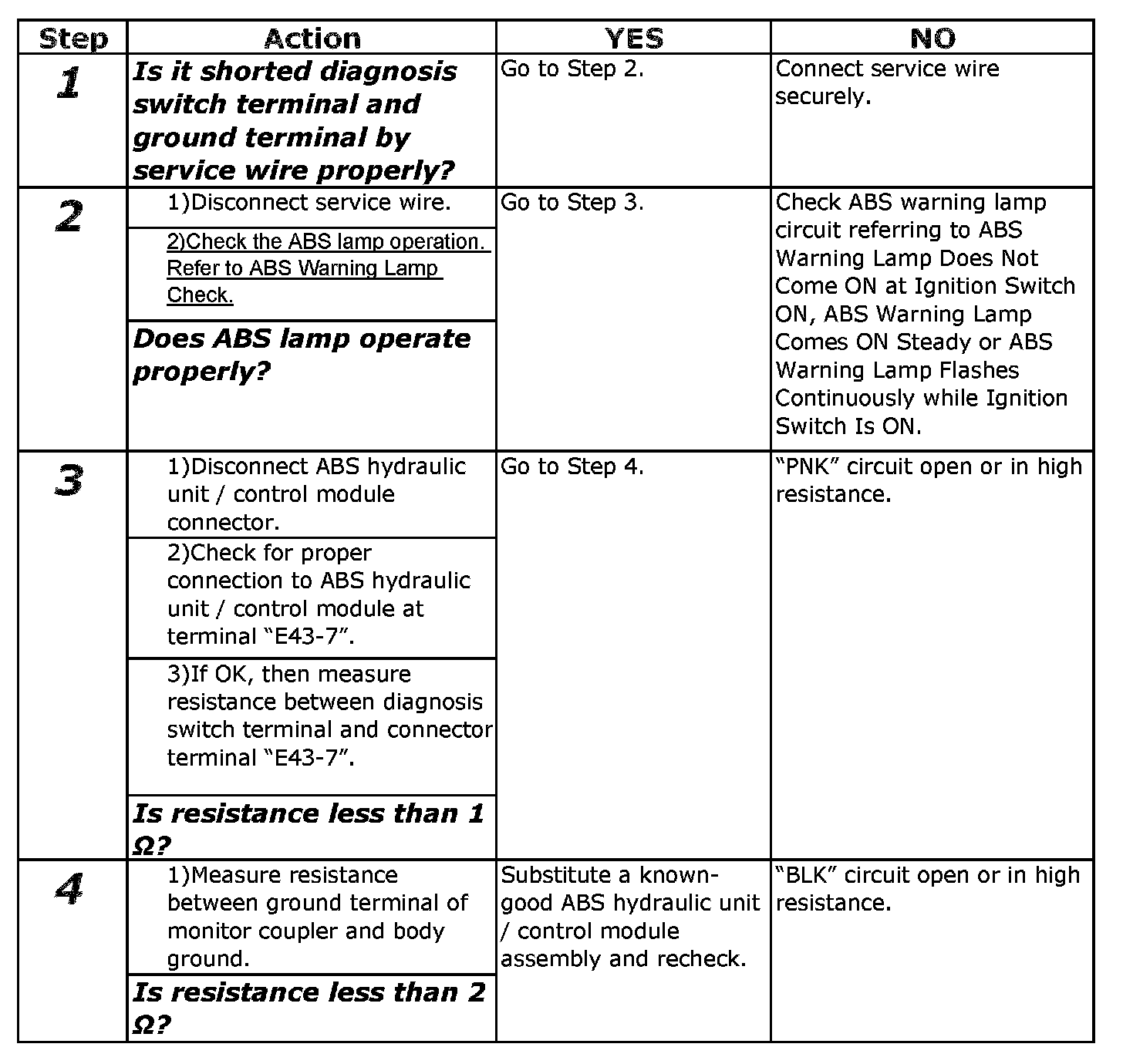

STEP 1-STEP 4:
