ABS Warning Lamp Check

ABS Warning Lamp Check
1) Turn ignition switch ON.

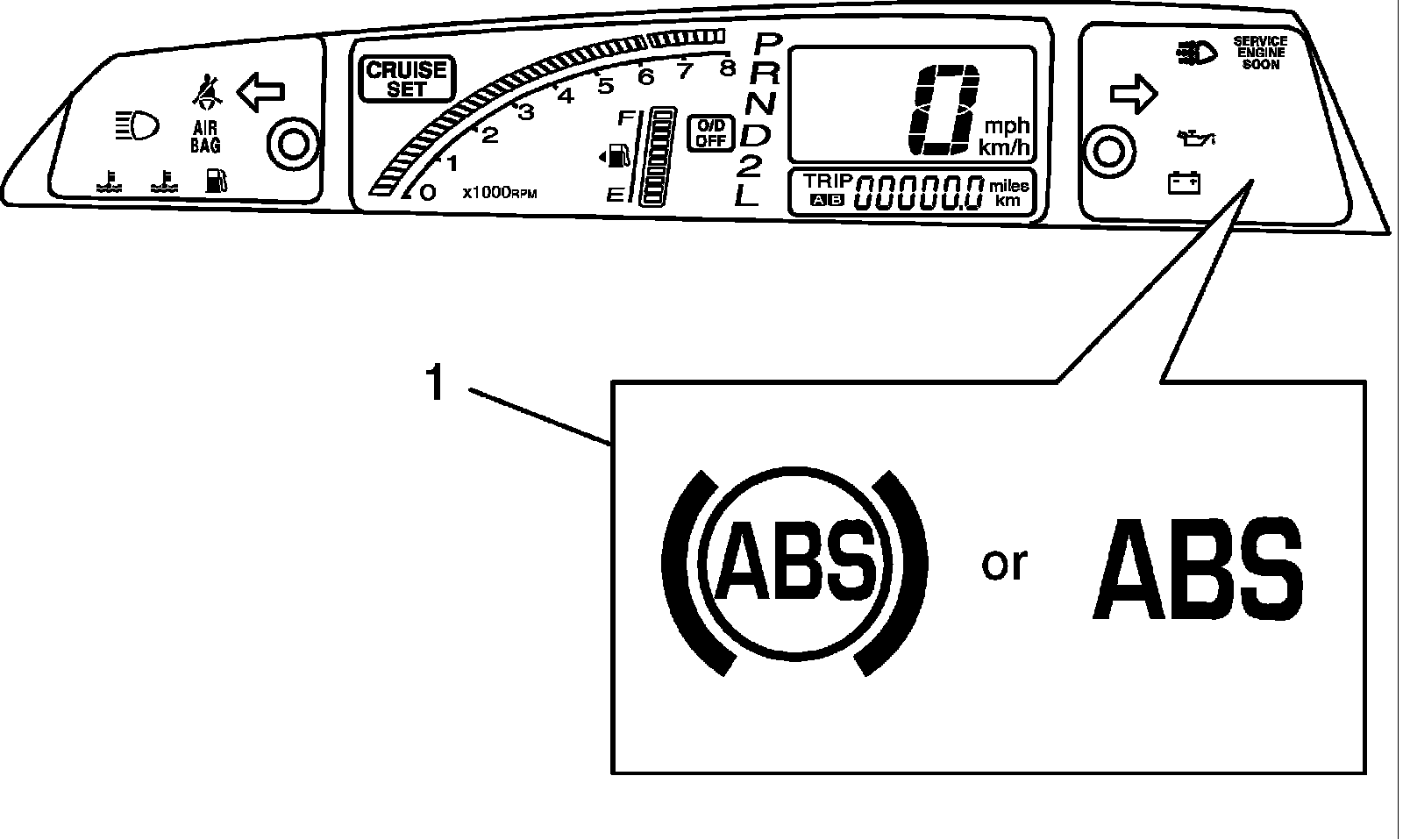

2) Check that ABS warning lamp (1) comes ON for about 2 seconds and then goes off.
If any faulty condition is found, advance to ABS Warning Lamp Does Not Come ON at Ignition Switch ON, ABS Warning Lamp Comes ON Stead or ABS Warning Lamp Flashes Continuously while Ignition Switch Is ON.
