Power Mirror Switch: Testing and Inspection

POWER DOOR MIRROR SWITCH INSPECTION

1. Remove mirror switch from door trim.

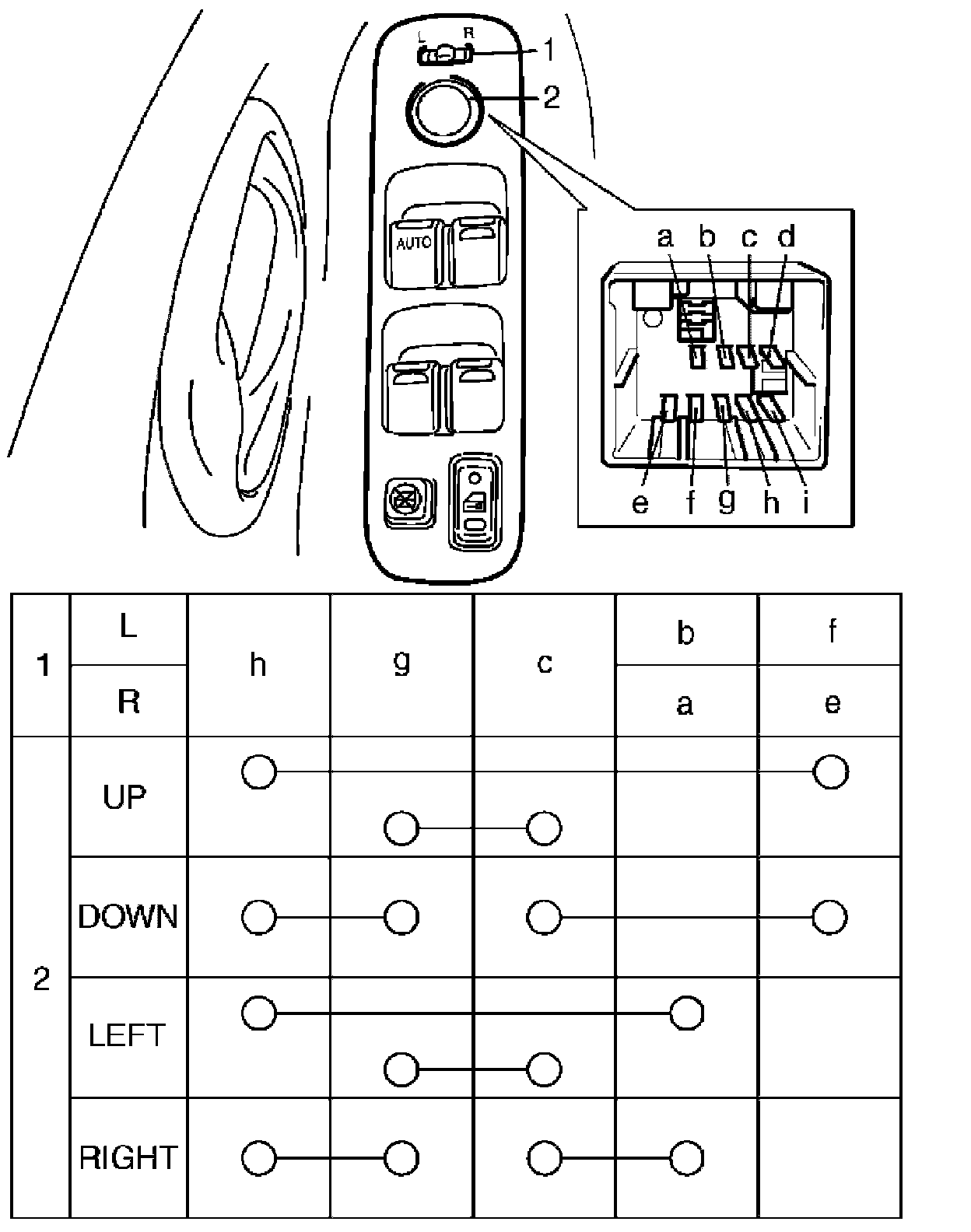

2. Check for continuity between terminals at each switch position.
If check result is not as specified, replace door mirror switch.
