P0707
DTC P0707 (No. 34): Transmission Range Sensor Circuit LowWiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTCs in TCM and ECM memories by using scan tool and start engine.
3) Start vehicle and increase vehicle speed to about 70 km/h (44 mile/h) in "D" range.
4) Keep driving the vehicle speed for 30 seconds.
5) Release accelerator pedal, decrease vehicle speed and stop vehicle.
6) Turn ignition switch OFF.
7) Repeat Step 4) to 6) one time.
8) Check DTC, pending DTC and freeze frame data.
DTC Troubleshooting

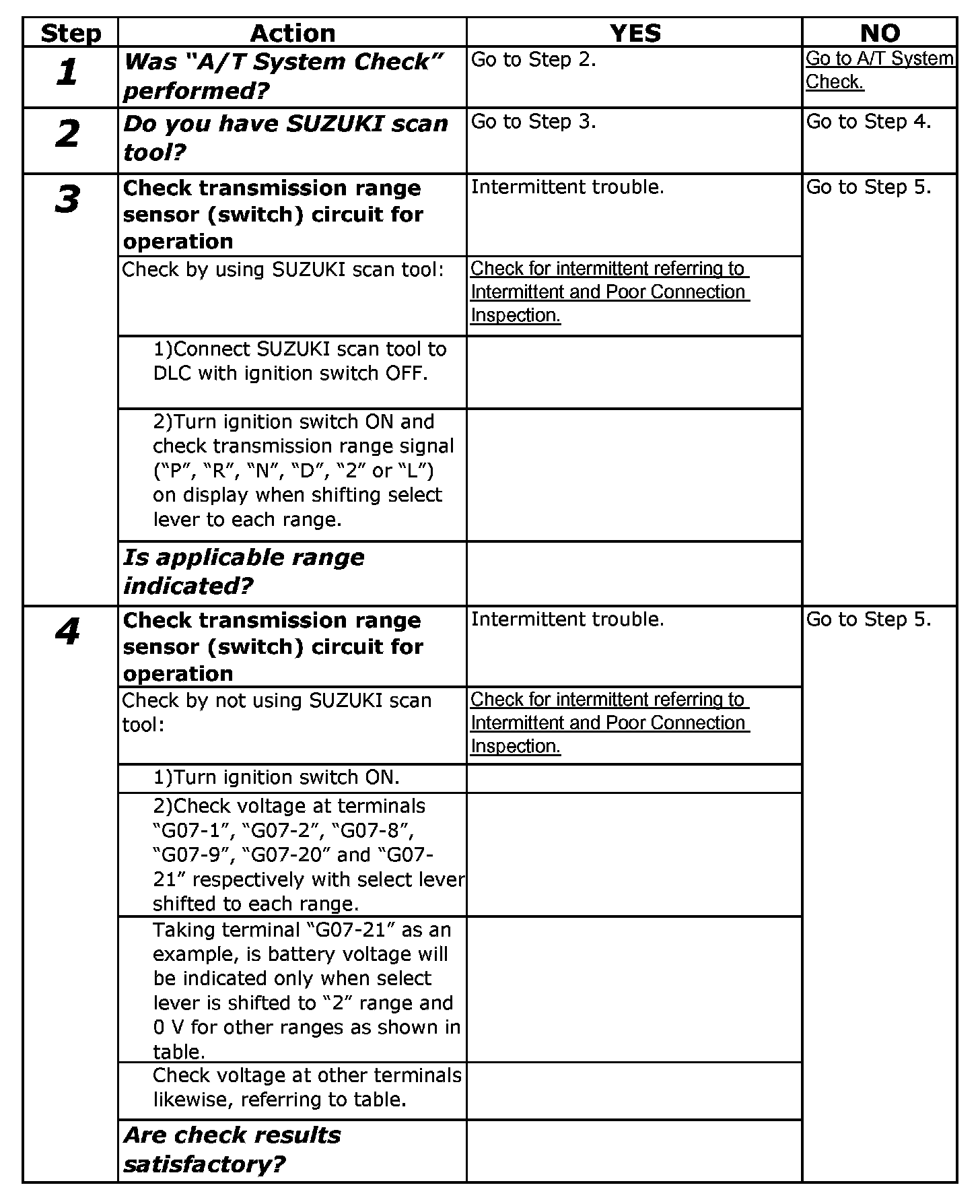

Step 1-Step 4:

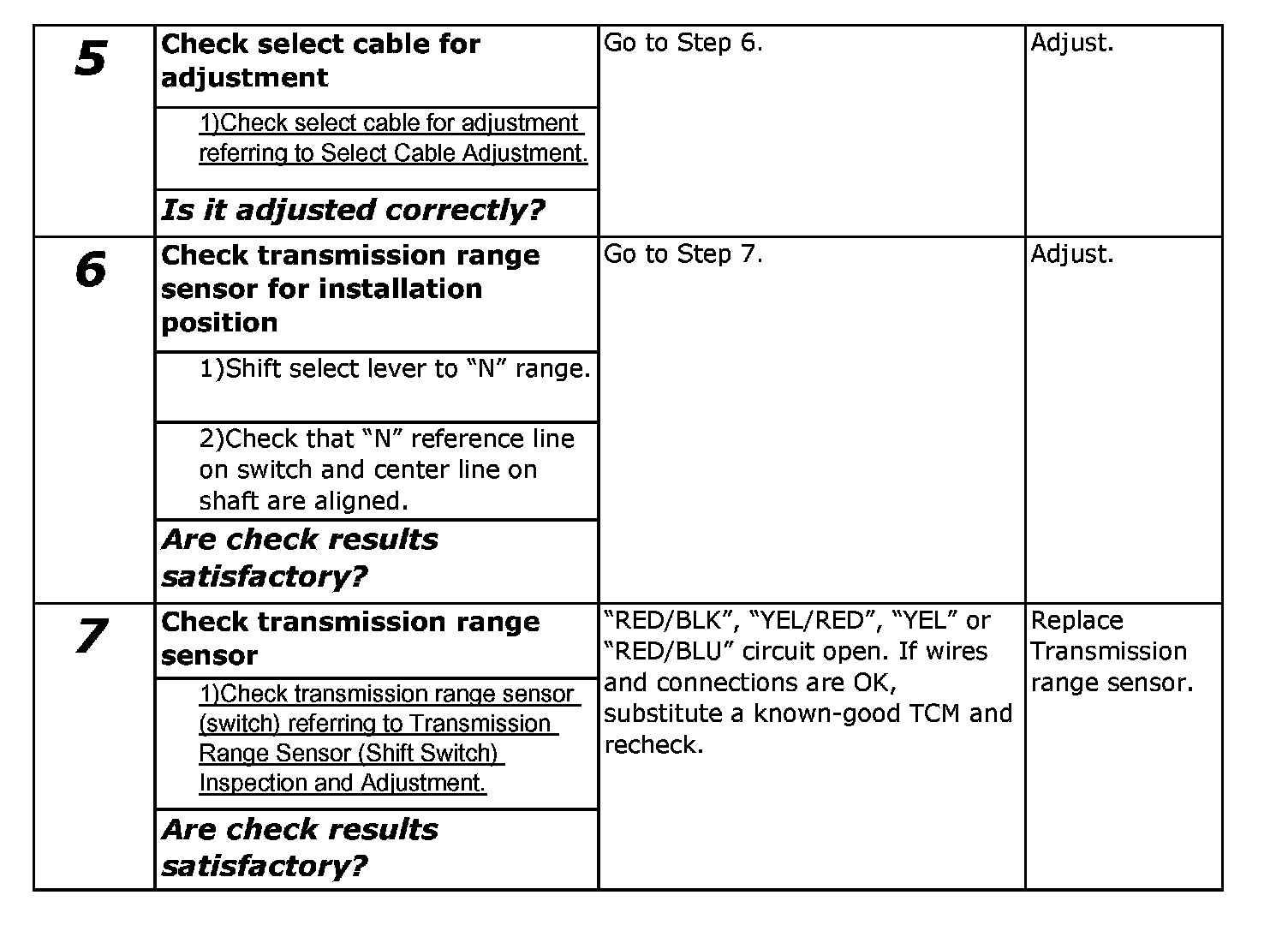

Step 5-Step 7:
Table for step 4
