P0117

DTC P0117: Engine Coolant Temperature Circuit Low Input

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch turned OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Start engine and run it for 30 sec. or more.
4. Check DTC and pending DTC.

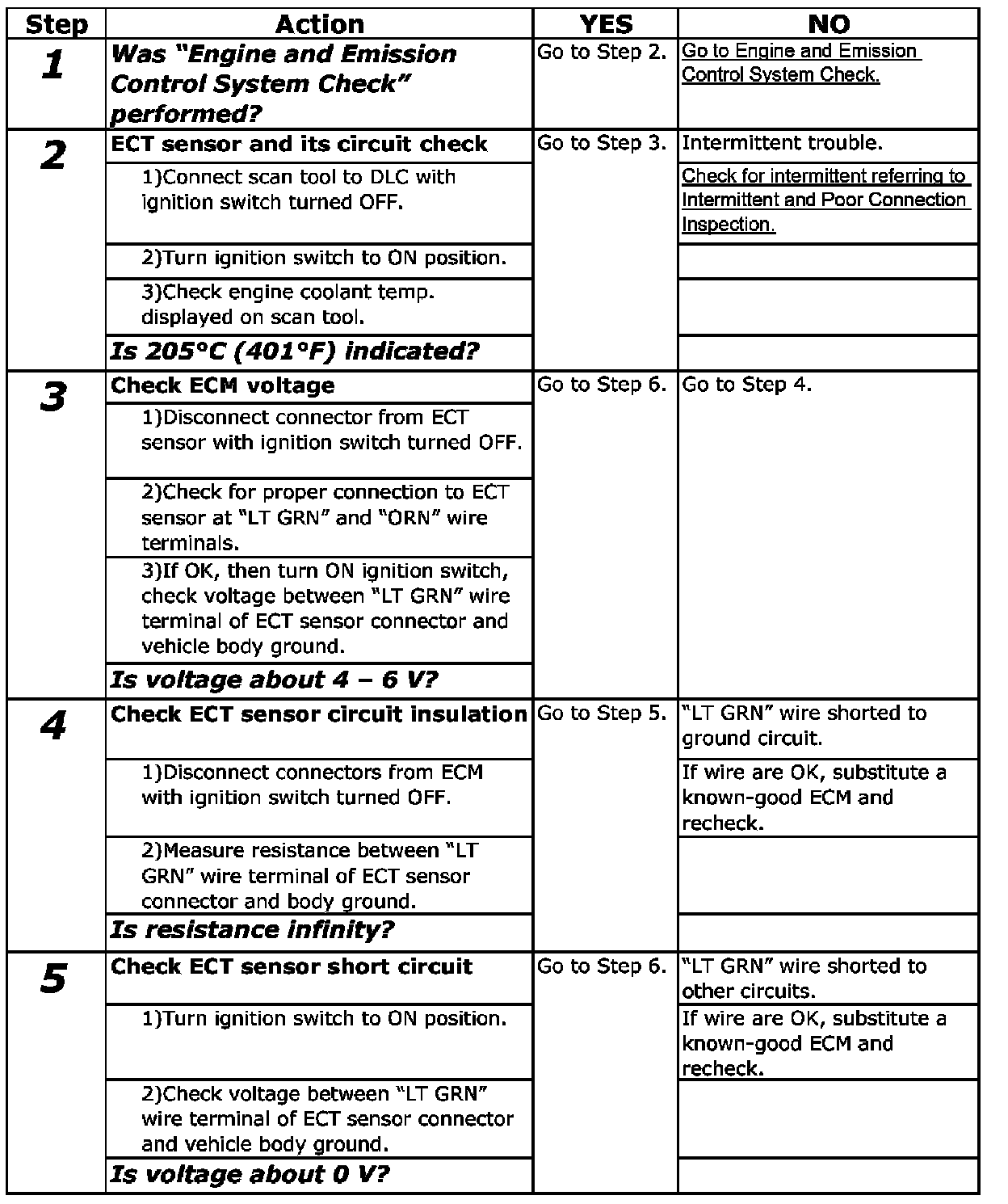

Step 1-5:

Step 6:

DTC Troubleshooting

NOTE:
- Before inspecting, be sure to check that coolant temp. meter in combination meter indicates normal operating temperature (Engine is not overheating).
- When this DTC and P1709 are stored together, also clear DTC stored in TCM after completion of repair.
