P0107

DTC P0107: Manifold Absolute Pressure Circuit Low Input

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Run engine at idle speed for 10 sec.
4. Check DTC and pending DTC.

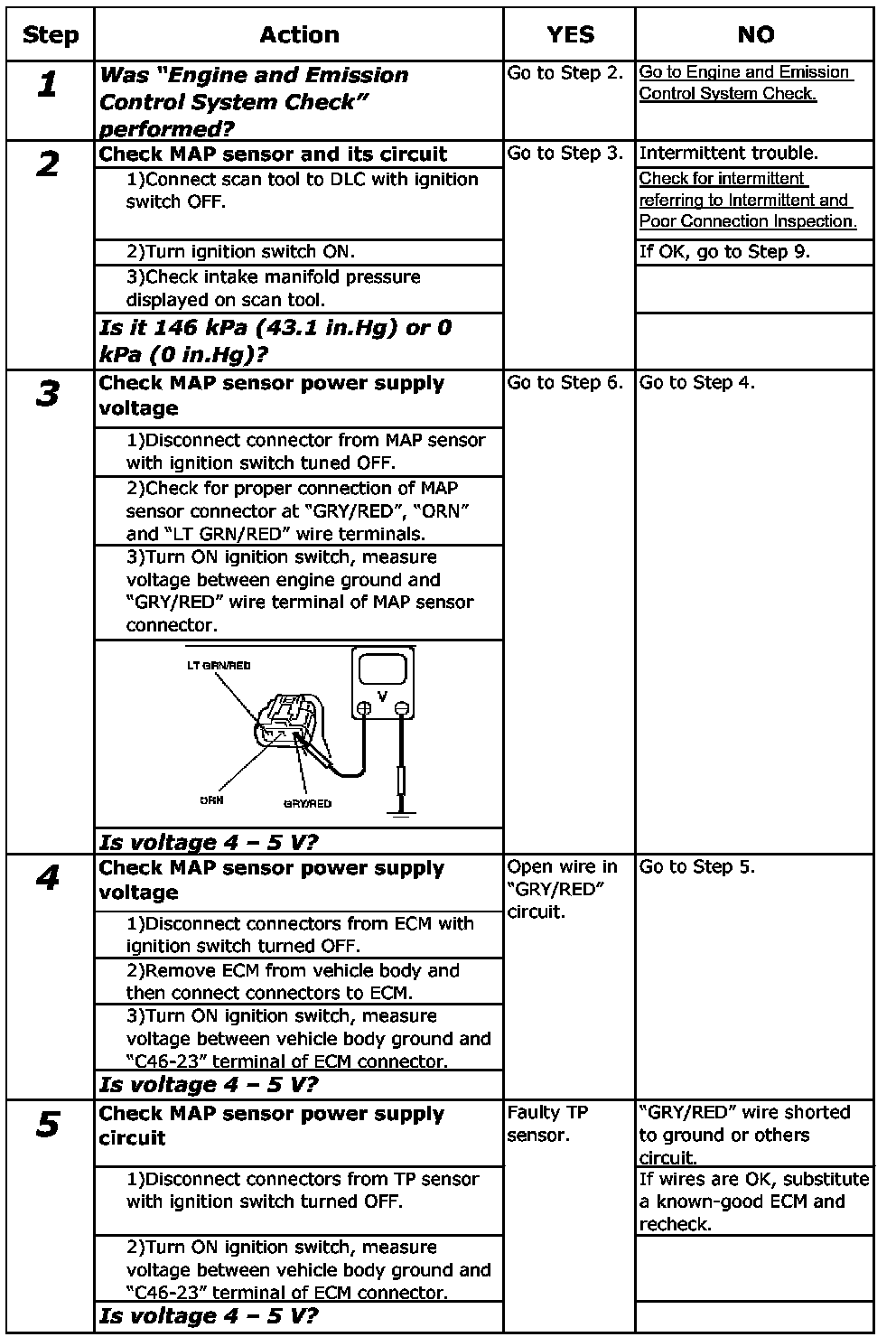

Step 1-5:

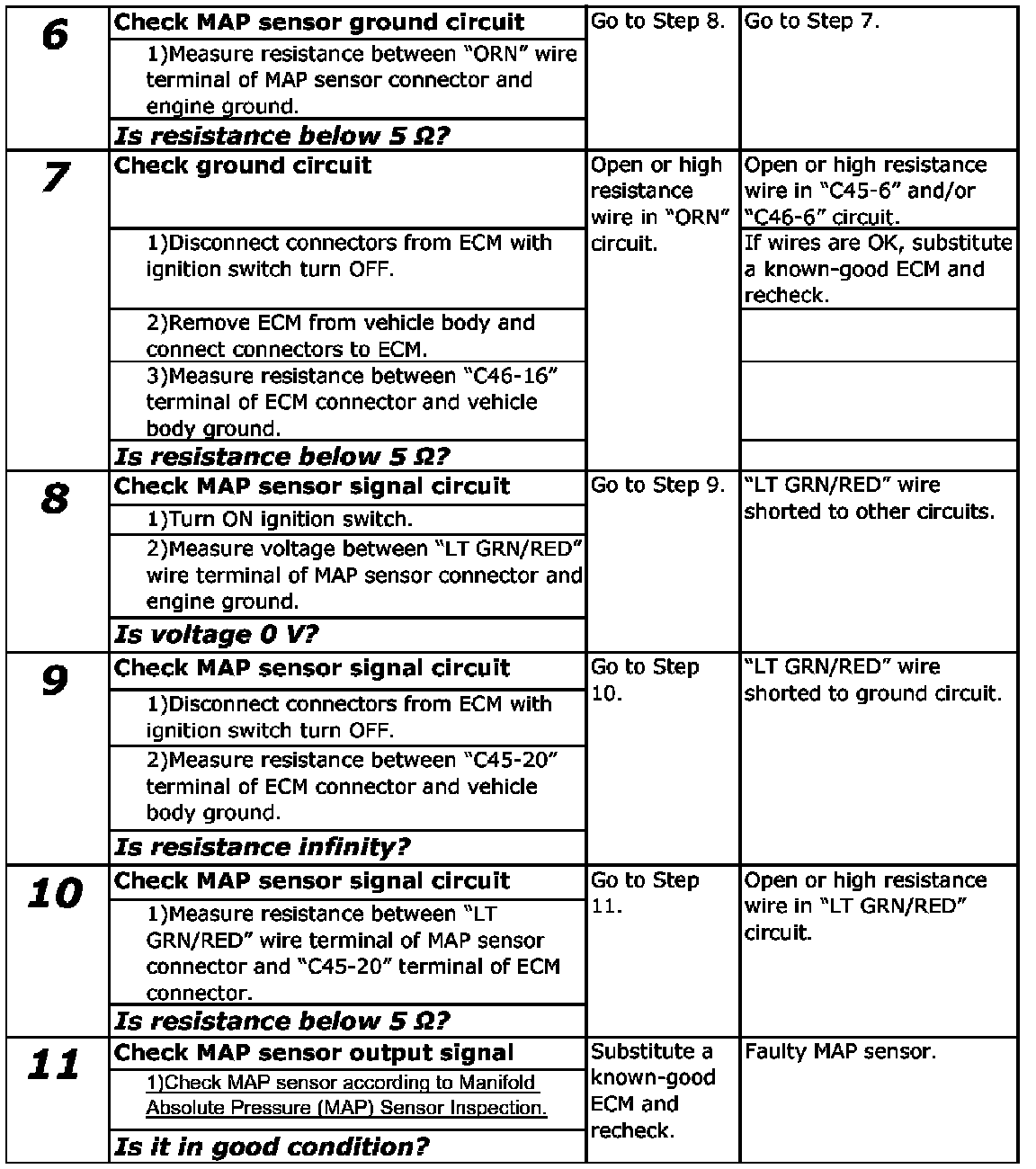

Step 6-11:

DTC Troubleshooting
