DTC 10

DTC B1510 (No.10): Engine Coolant Temperature (ECT) Sensor And/or Its Circuit Malfunction

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition And Trouble Area:




DTC Detecting Condition and Trouble Area

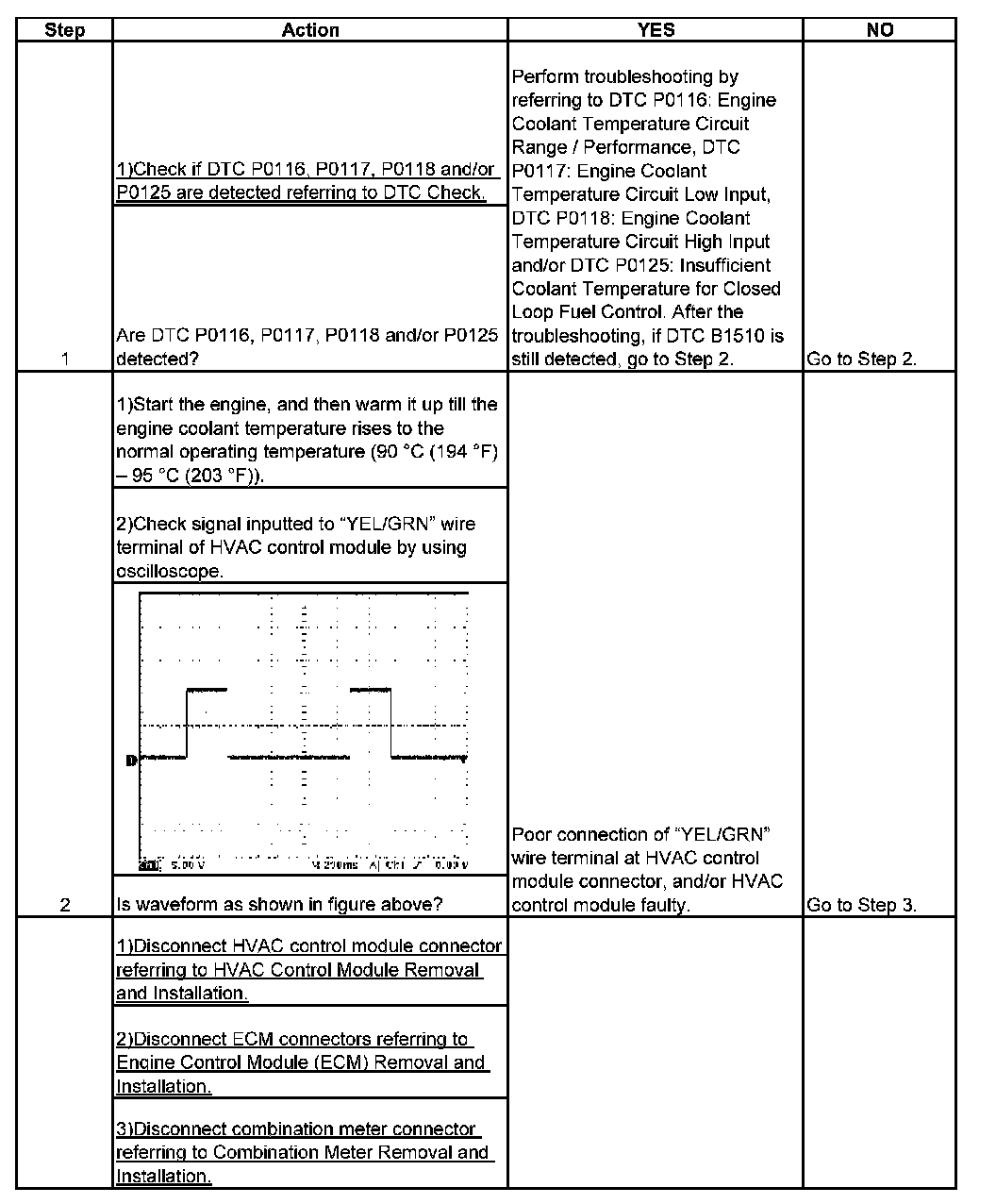

Step 1-3:




Step 3 (Continued)-4:




DTC Troubleshooting
