C1071

DTC C1071 (No. 71): ABS Control Module

Wiring Diagram








DTC Detecting Condition
This DTC will be set when an internal malfunction is detected in the ABS control module.

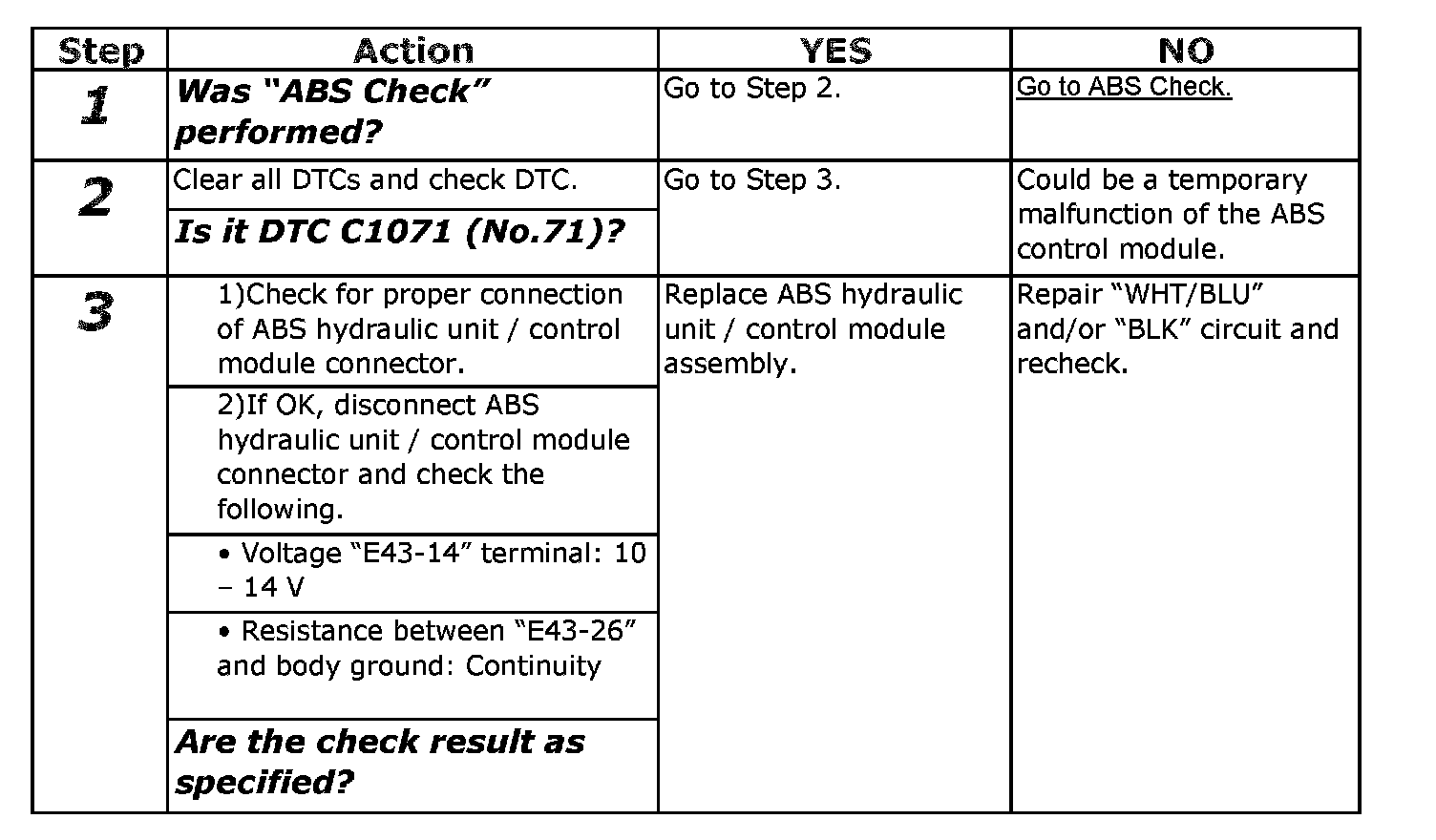

DTC Troubleshooting

Step 1-Step 3:
