C1061

DTC C1061 (No. 61): ABS Pump Motor and/or Motor Relay Circuit

Wiring Diagram








DTC Detecting Condition
The ABS control module monitors the voltage at monitor terminal of pump motor circuit constantly with the ignition switch turned ON. It sets this DTC when the voltage at the monitor terminal does not become high / low according to ON/OFF commands to the motor relay (transistor) of the module (does not follow these commands).

DTC Troubleshooting

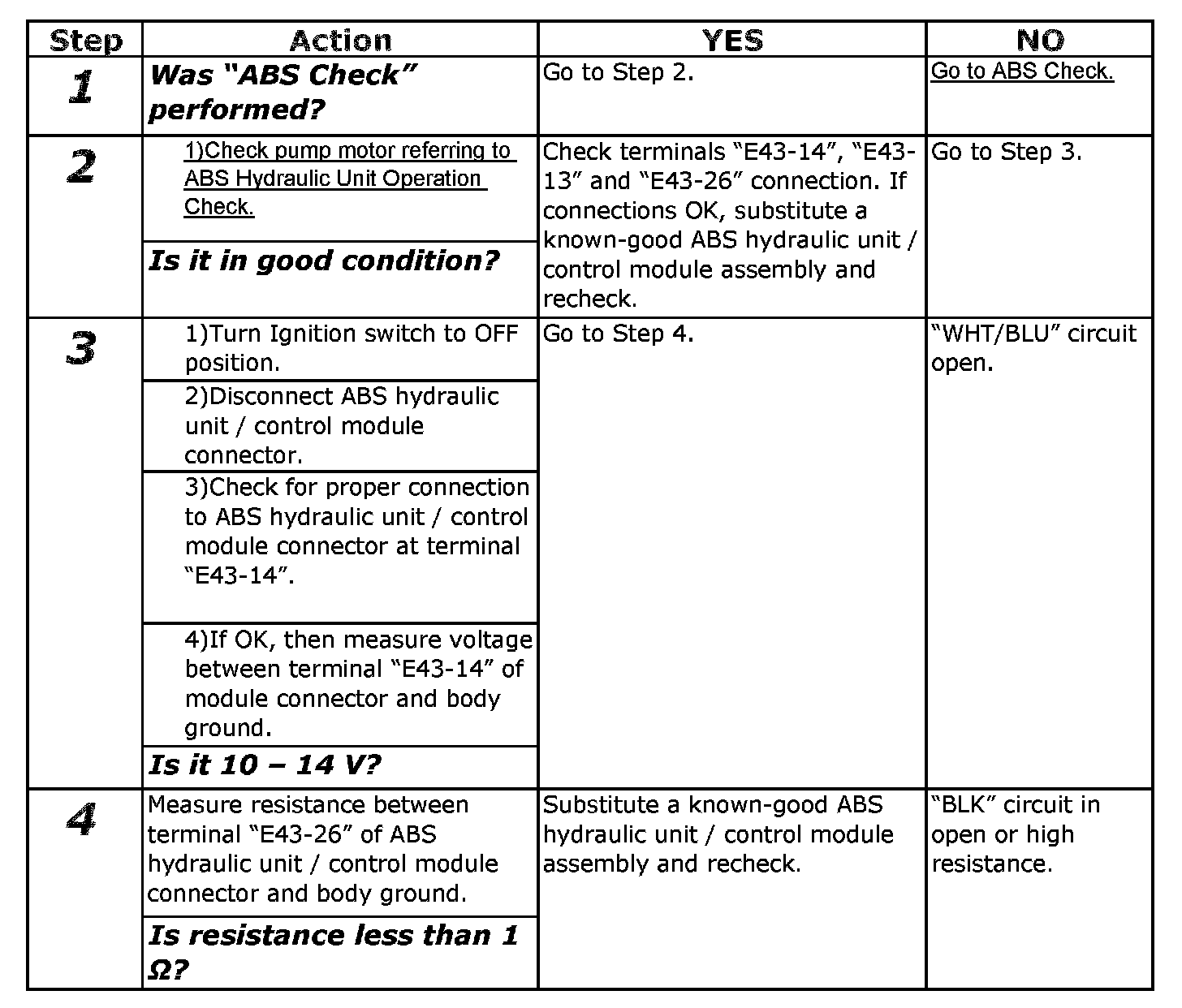

Step 1-Step 4:
