B1504

DTC B1504 (No.04): Sunload Sensor And/or Its Circuit Malfunction

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition And Trouble Area:




DTC Detecting Condition and Trouble Area

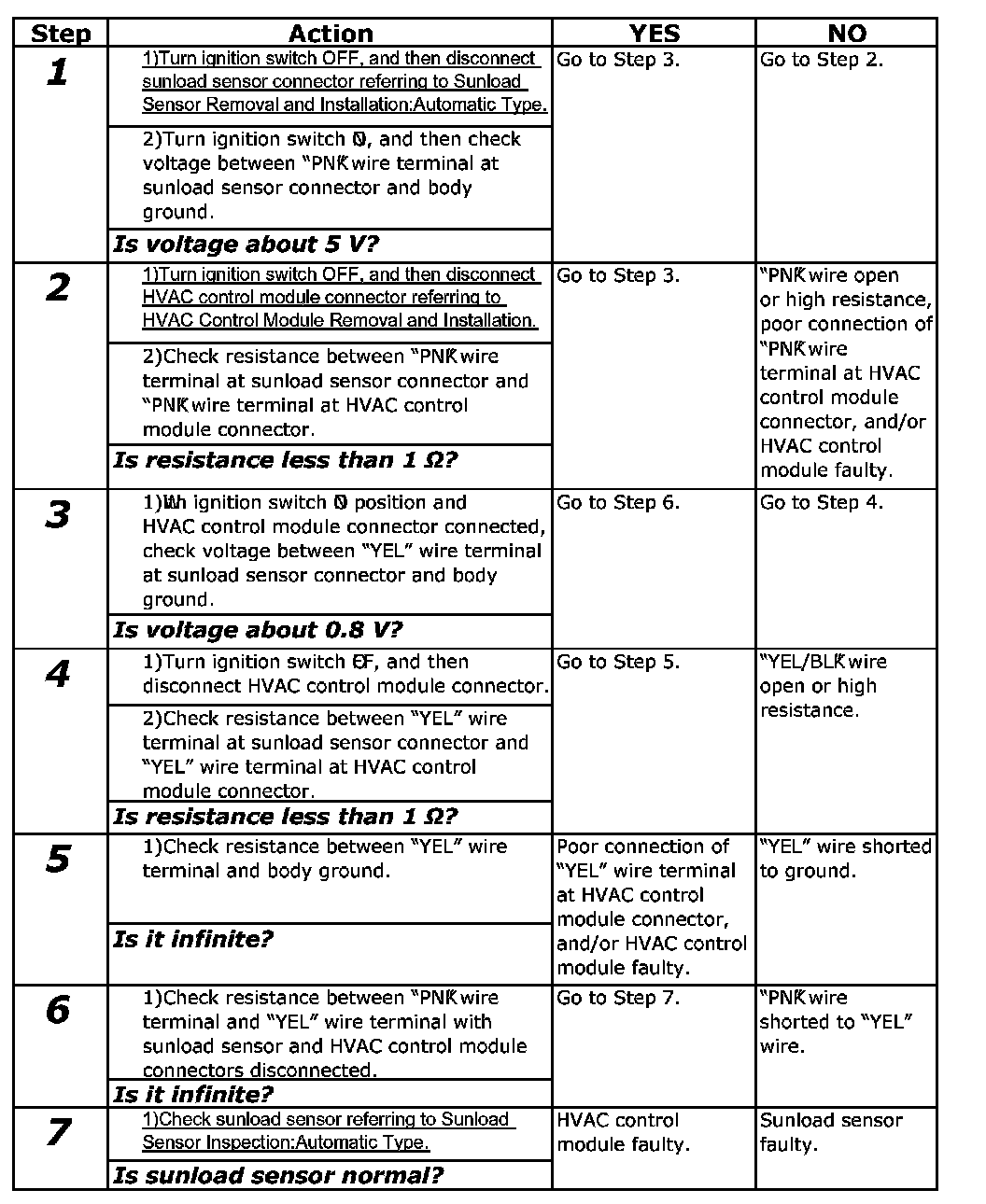

Step 1-7:




DTC Troubleshooting
