B1501

DTC B1501 (No.01): Outside Air Temperature Sensor And/or Its Circuit Malfunction

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition And Trouble Area:




DTC Detecting Condition and Trouble Area

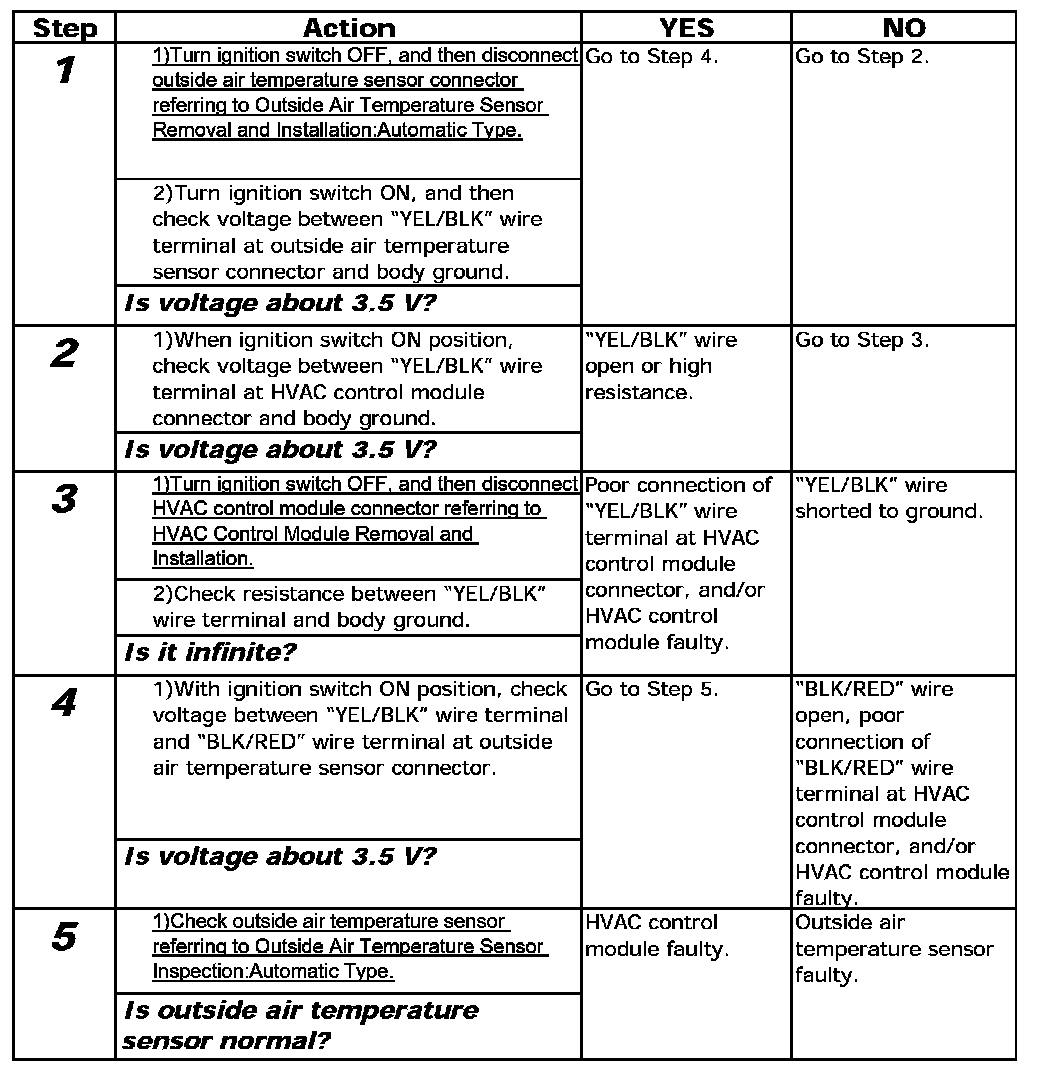

Step 1-5:




DTC Troubleshooting
