B1094

DTC B1084 / B1094 (No. 1084 / 1094): Driver / Passenger Side Sensor Circuit Short to Power Circuit or Open

Wiring Diagram:

Wiring Diagram

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check: Advanced Air Bag before starting diagnosis according to flow.
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections: Advanced Air Bag.
- If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

DTC Will Set when
The resistance measured between side sensor circuit and power source circuit is below a specified value for specified time.

Flow Test Description
Step 1: Check for open circuit in side sensor circuit.
Step 2: Check for short circuit between side sensor circuit and power supply circuit.
Step 3: Check if malfunction is in side sensor.

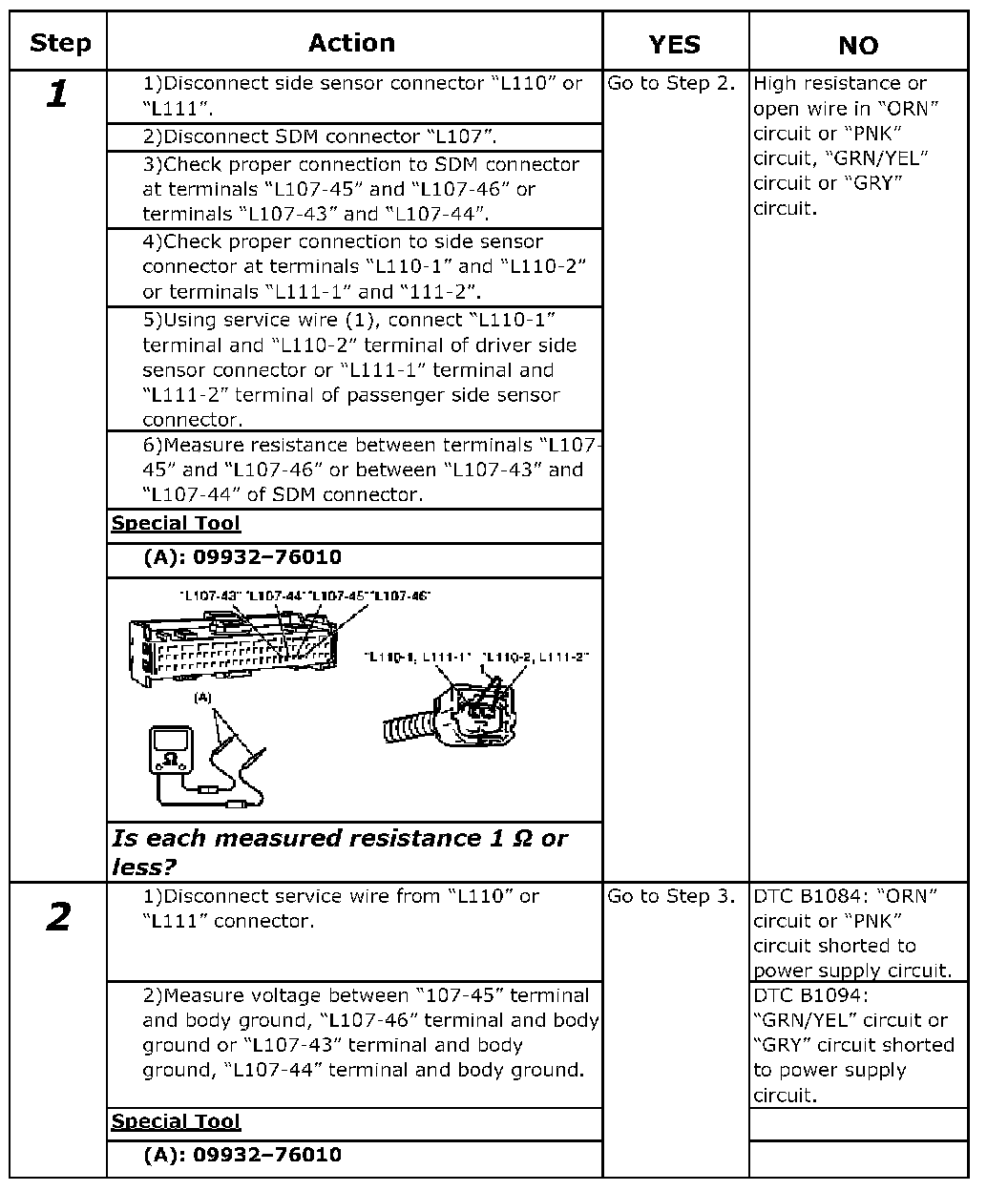

Step 1-2:

Step 2 (Continued)-3:

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance for SDM: Advanced Air Bag and DTC Clearance for OCM: Advanced Air Bag, if any.
- Repeat Air Bag Diagnostic System Check: Advanced Air Bag to confirm that the trouble has been corrected.
