Manual Transaxle Assembly Components

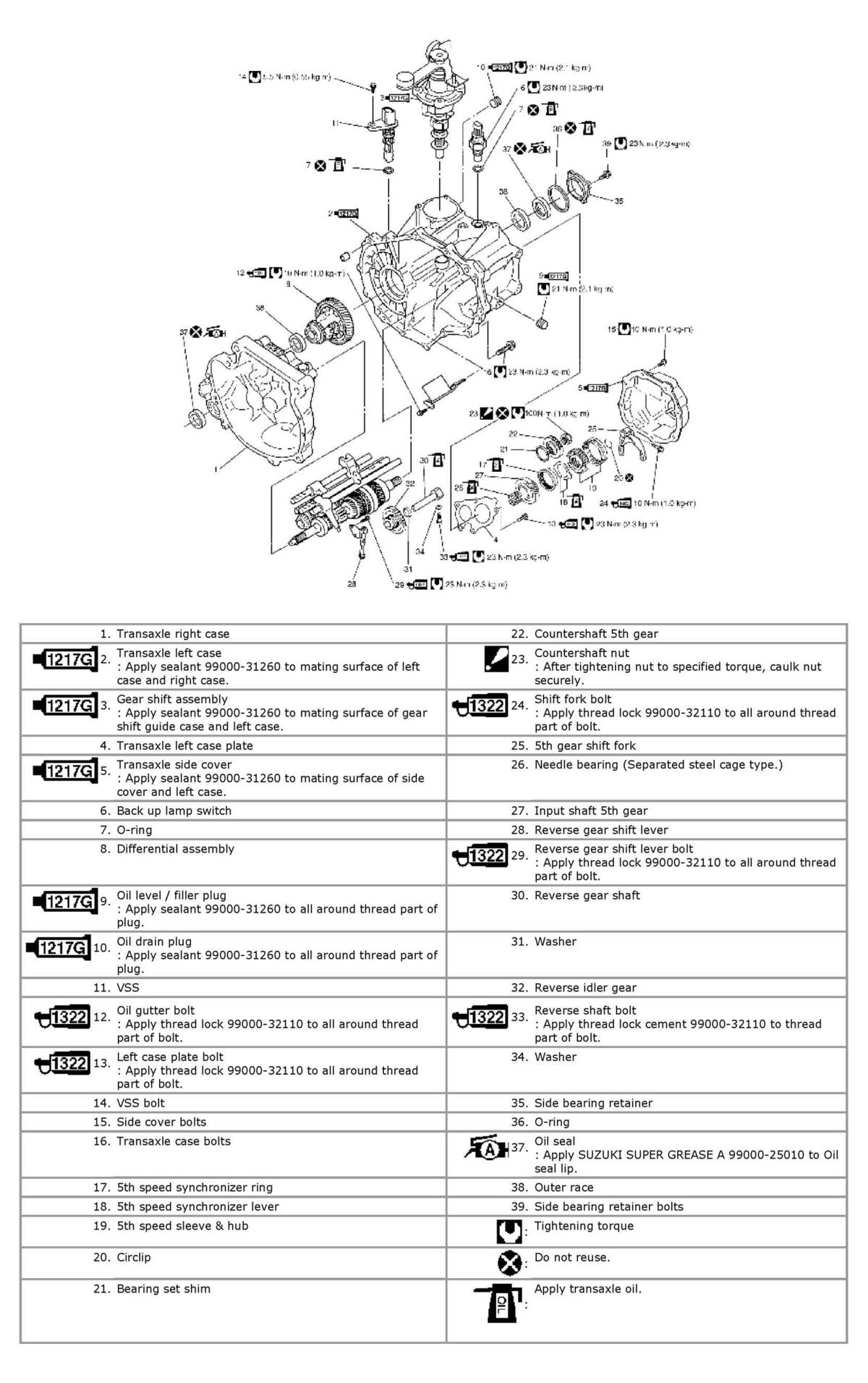

Fig 1: Identifying Manual Transaxle Assembly Components (With Tightening Torques)
G04592165Courtesy of SUZUKI OF AMERICA CORP.
