Left Case Disassembly and Assembly: Disassembly

  1. Removal input oil gutter (1), if necessary.

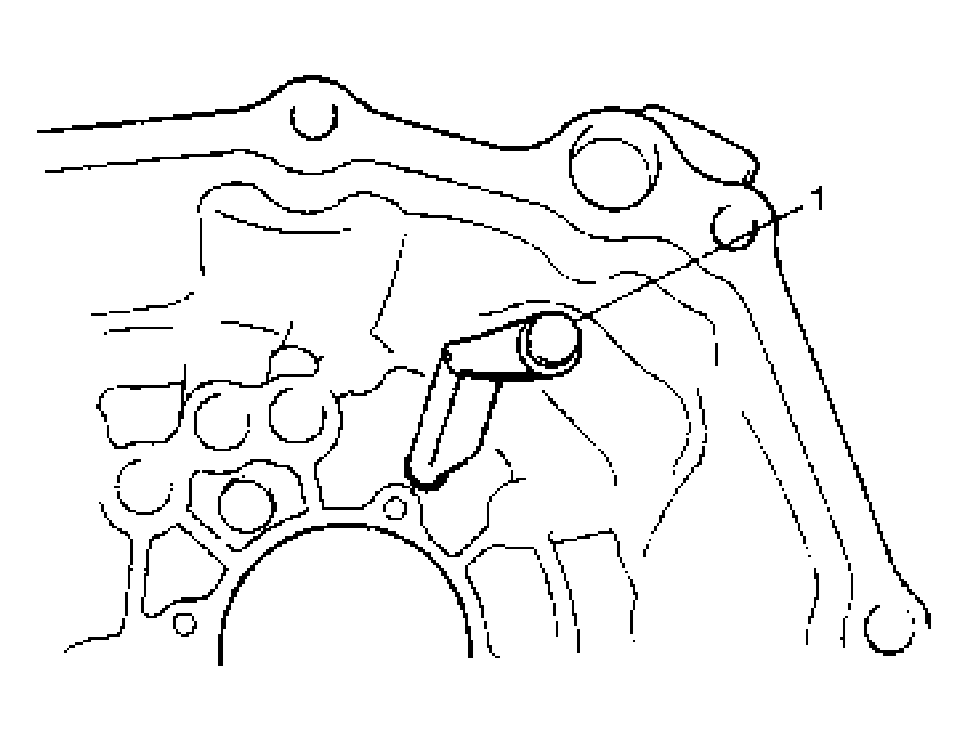

    Fig 1: Removing Input Oil Gutter
    G04592203Courtesy of SUZUKI OF AMERICA CORP.
