Hazard Switch Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

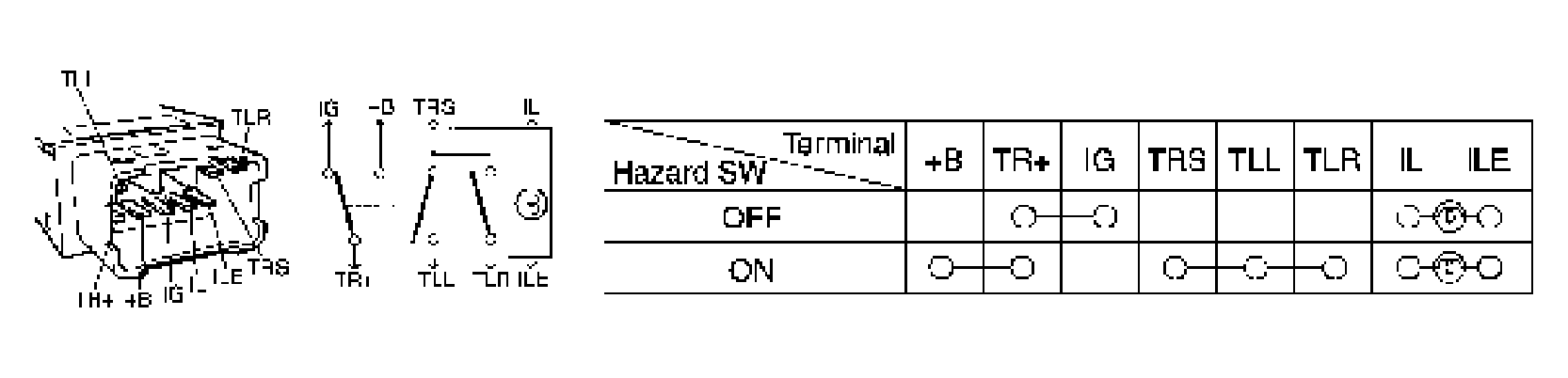

Fig 1: Locating Hazard Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
