One-Way No. 1 Clutch Disassembly and Reassembly: Disassembly

Remove one-way No. 1 clutch rear thrust washer (1).

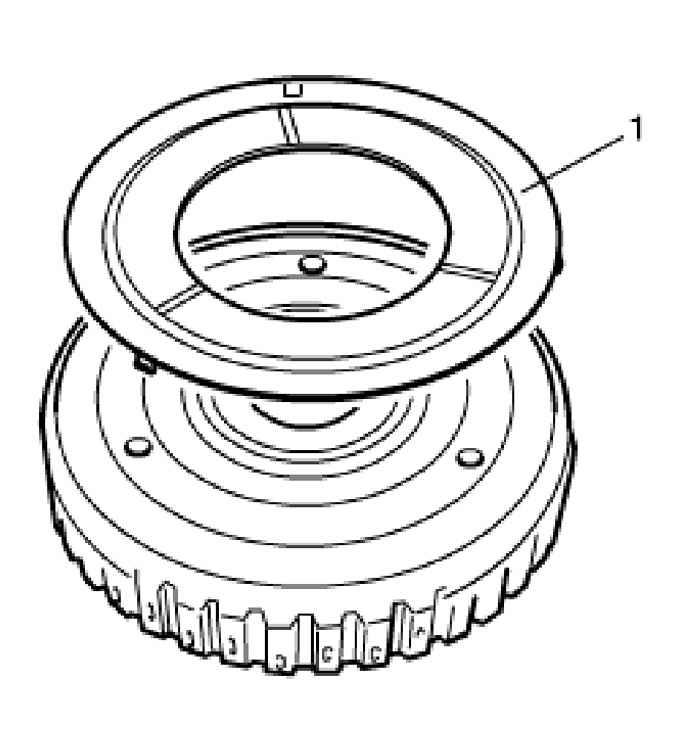

Fig 1: Removing One-Way No. 1 Clutch Rear Thrust Washer
Courtesy of SUZUKI OF AMERICA CORP.
Remove one-way No. 1 clutch inner race (1) and one-way No. 1 clutch front thrust washer (2).
Remove one-way No. 1 clutch (3) from one-way No. 1 clutch outer race (4).

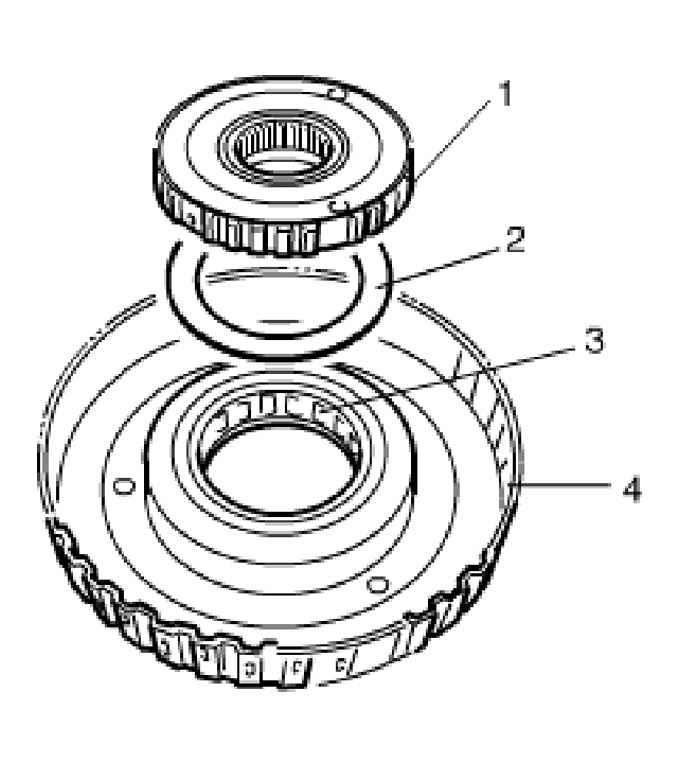

Fig 2: Removing One-Way No. 1 Clutch Inner Race
Courtesy of SUZUKI OF AMERICA CORP.
