Oil Pump 2nd Coast Brake and 2nd Brake Components

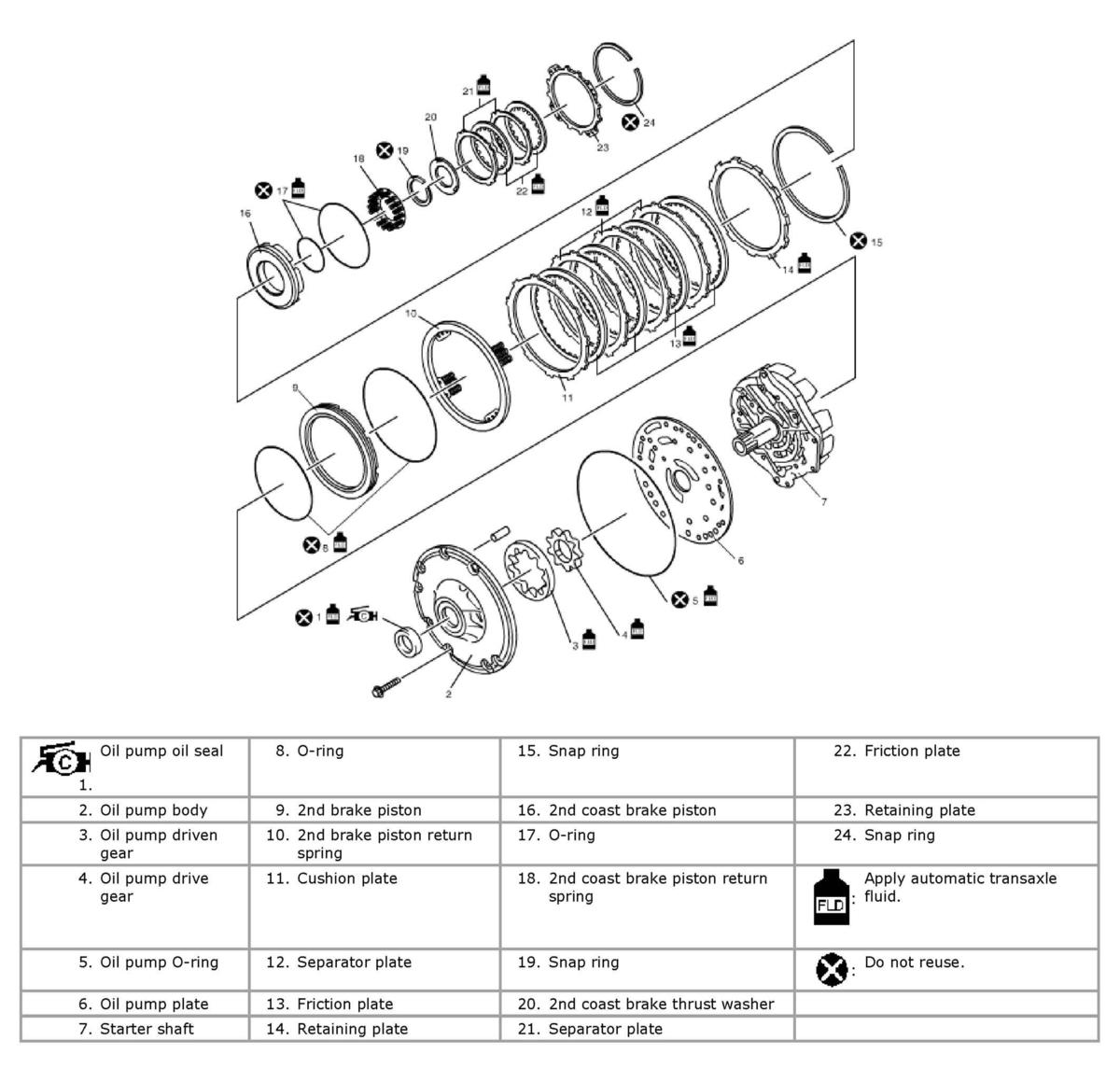

Fig 1: Identifying Oil Pump 2nd Coast Brake And 2nd Brake Components
G04591956Courtesy of SUZUKI OF AMERICA CORP.
