1st / Reverse Brake and One-Way No. 2 Clutch Components

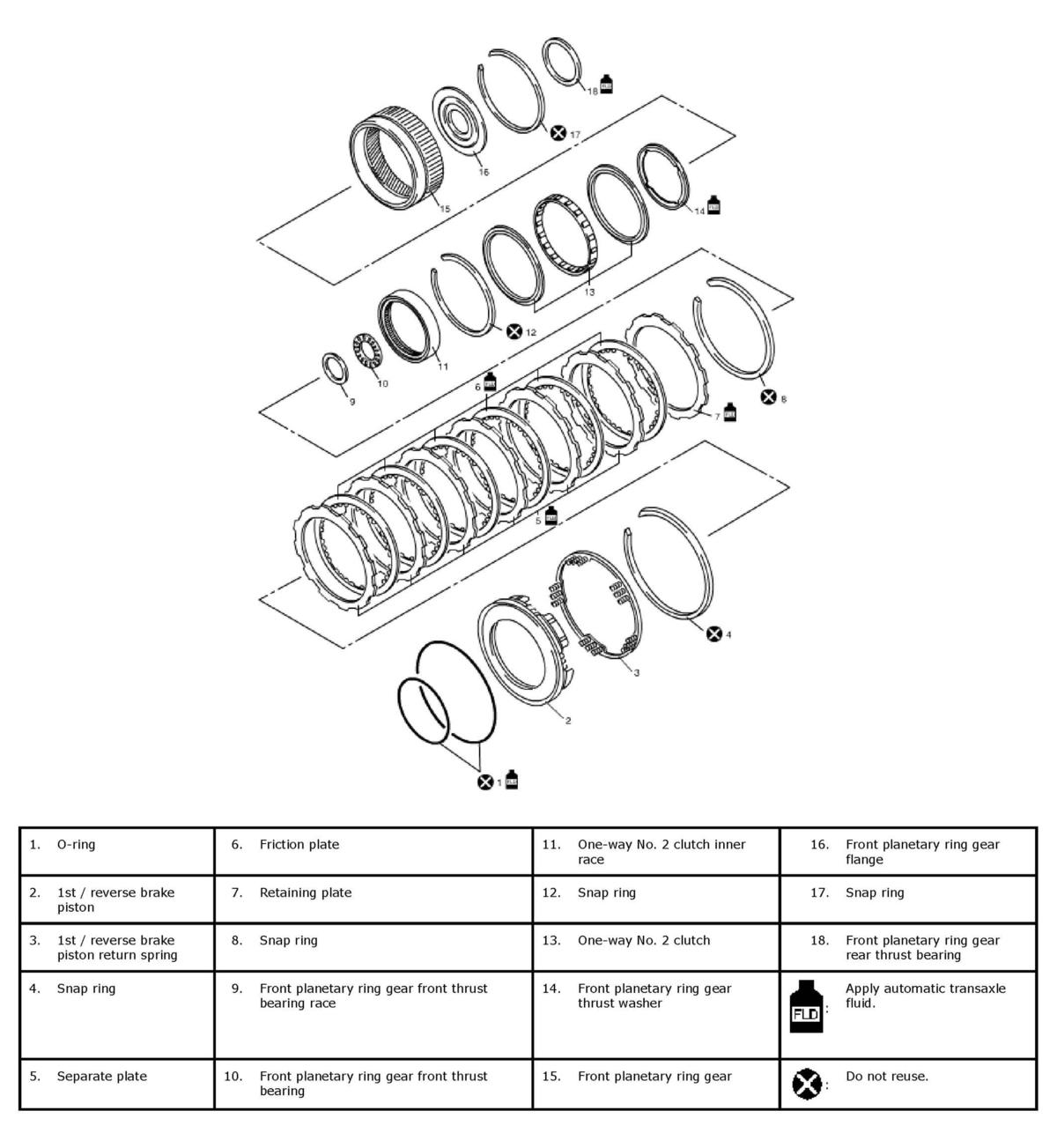

Fig 1: Identifying 1st / Reverse Brake And One-Way No. 2 Clutch Components
G04592011Courtesy of SUZUKI OF AMERICA CORP.
