DTC P2763 (No. 25): TCC Pressure Control Solenoid Control Circuit High: Wiring Diagram

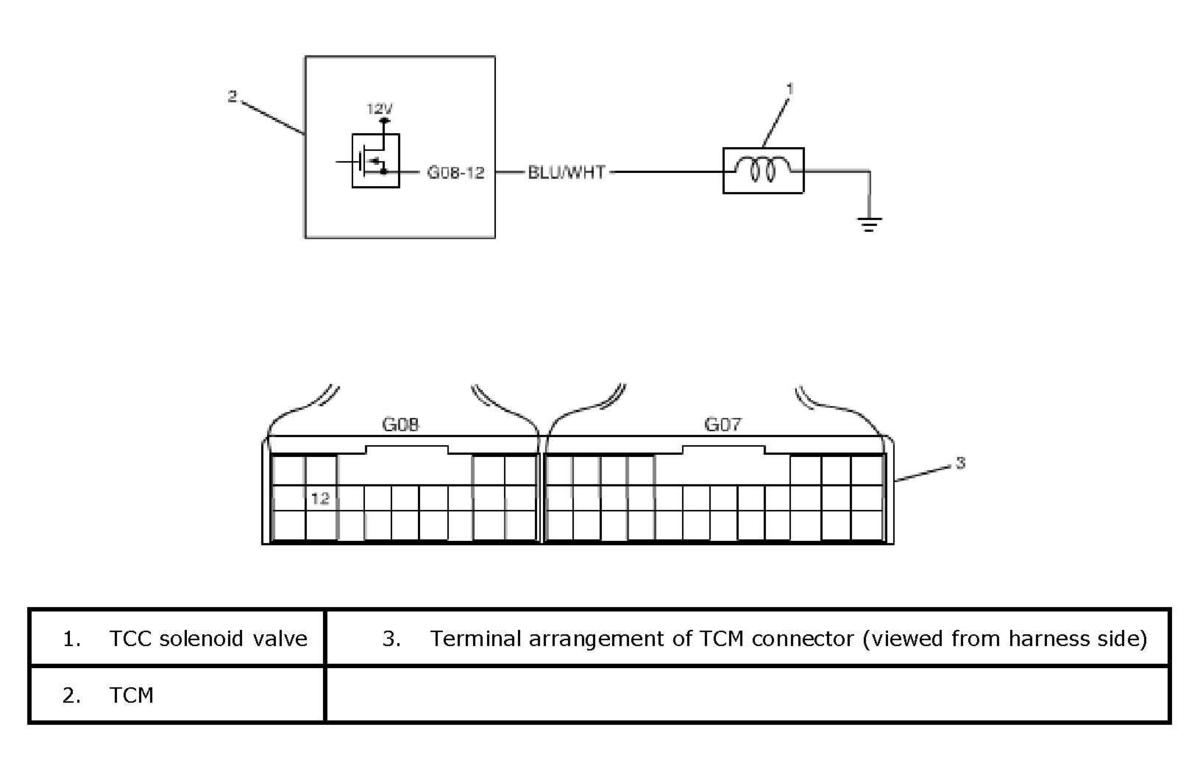

Fig 1: Wiring Diagram - TCC Pressure Control Solenoid Control Circuit
G04591839Courtesy of SUZUKI OF AMERICA CORP.
