DTC P0963 (No. 42): Pressure Control Solenoid Control Circuit High: Wiring Diagram

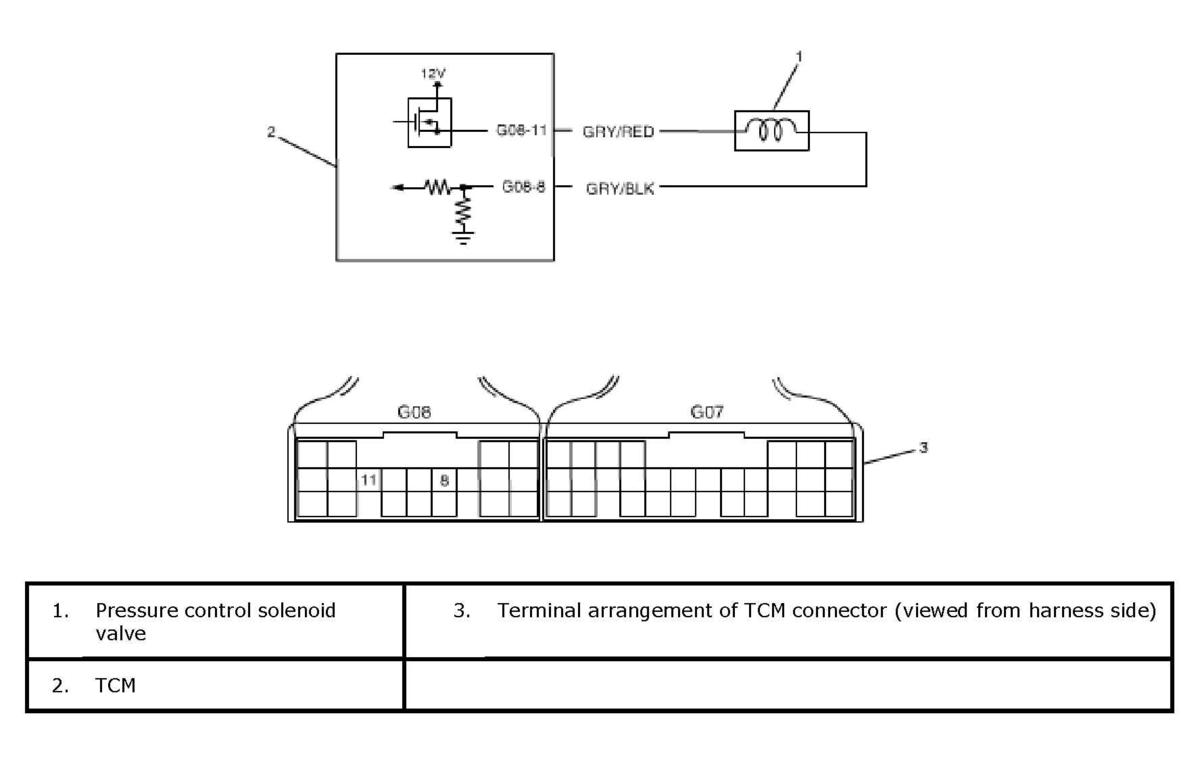

Fig 1: Wiring Diagram - Pressure Control Solenoid Control Circuit High
G04591828Courtesy of SUZUKI OF AMERICA CORP.
