4WD Model

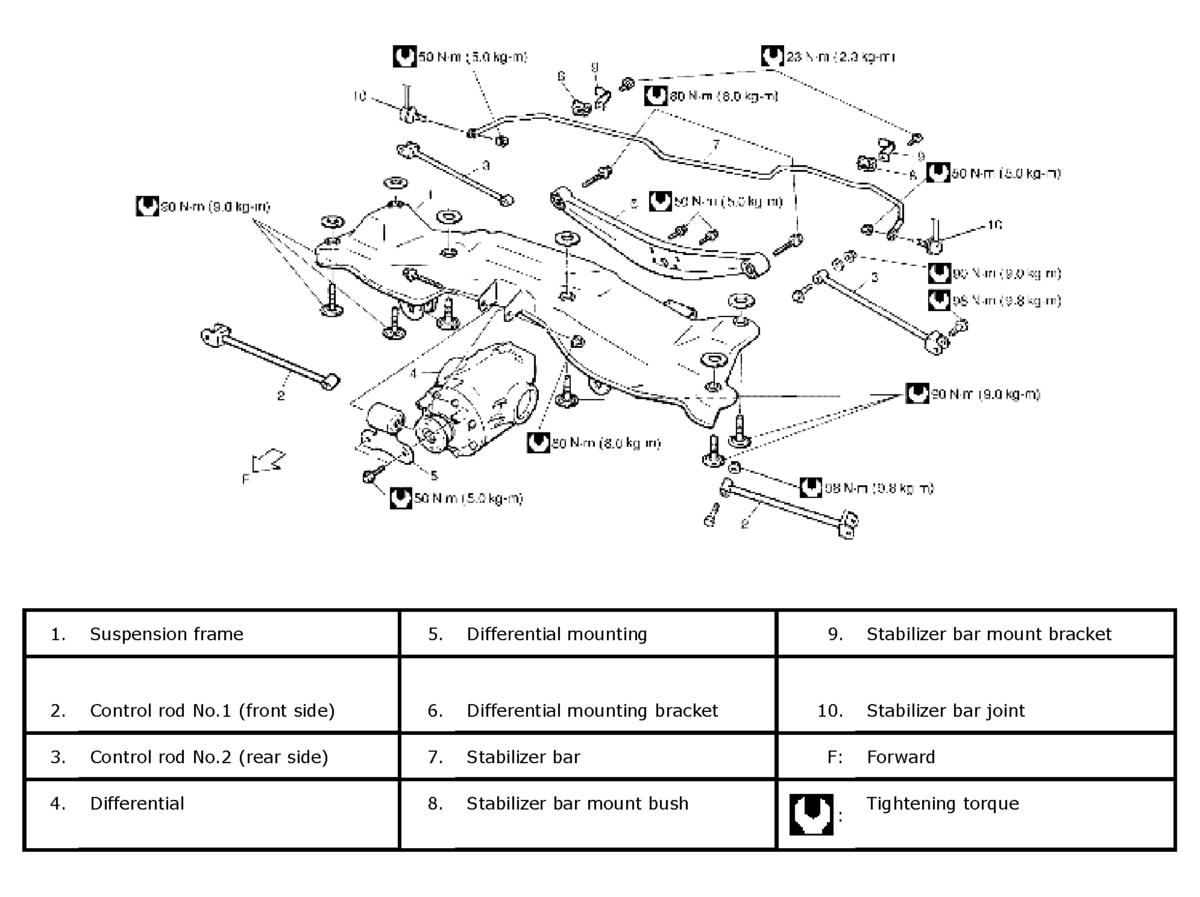

Fig 1: Identifying Rear Suspension Frame Components (4WD Model) (With Tightening Torques)
G04590210Courtesy of SUZUKI OF AMERICA CORP.
